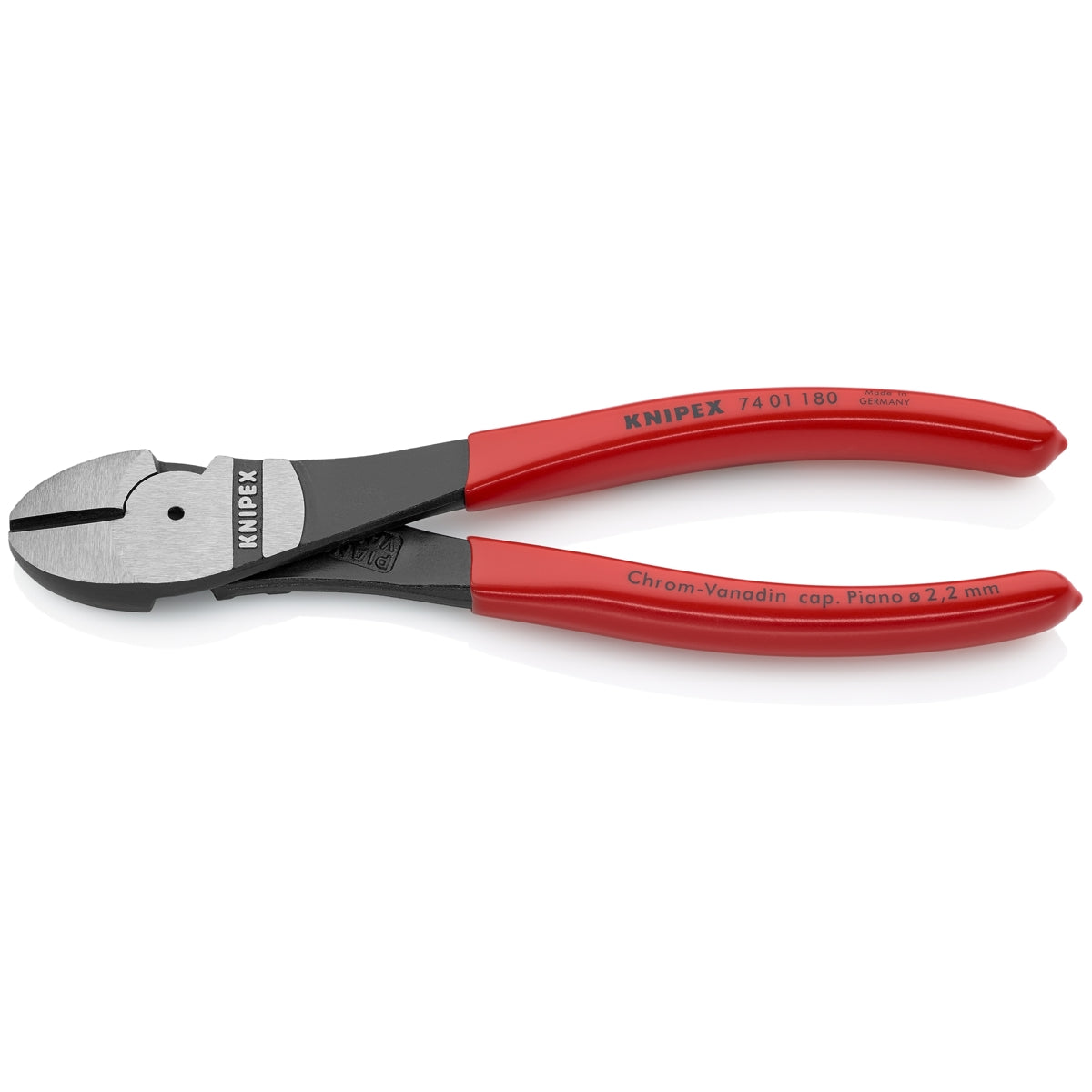

Knipex 74 01 180 SBA High Leverage Diagonal Cutters 7 1/4 in. Plastic Coating

Product Description

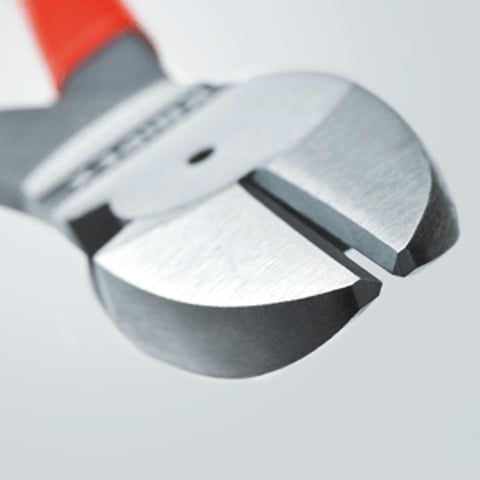

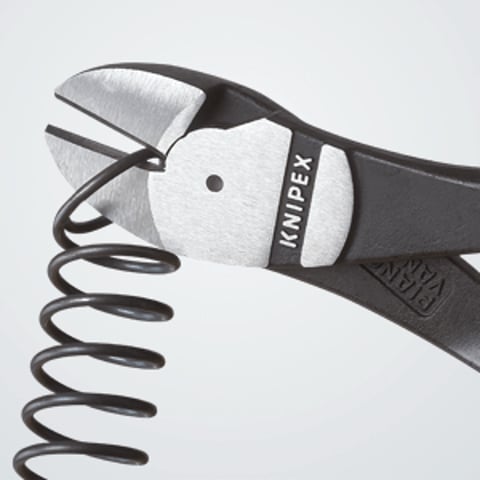

The KNIPEX 74 01 180 SBA high leverage diagonal cutters require 20% less effort compared to conventional diagonal cutters of the same length. Forged-on axle for heavy-duty work and continuous use. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire.

• 20% less effort required compared to conventional diagonal cutters of the same length
• Forged-on axle for heavy-duty work
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

Product Highlights

These KNIPEX diagonal cutters are made from chrome vanadium heavy-duty steel, forged, multi stage oil-hardened. Suitable for cutting hard, medium-hard, and piano wire.

Product Information

Standard Information

• Brand: KNIPEX
• Manufacturer Part Number: 74 01 180 SBA
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 74 01 180 SBA
• Manufacturer: KNIPEX Tools
• Brand Name: Knipex
• Brand: KNIPEX
• Country of Origin: Germany
• Finish: Polished
• Material: Chrome vanadium heavy-duty steel, forged, oil-hardened
• UPC: 843221000318
• Item Type: Diagonal Cutters > High Leverage Diagonal Cutters
• Length: 7.25 in.
• Width: 1.94 in
• Height: 0.65 in
• Cut: Bevel
• Item: High Leverage Diagonal Cutting Plier
• Series: 74
• ESD Safe: No
• Features: Continuous Use, For Very Tough, High Cutting Performance With Minimum Effort Due to Optimum Co-Ordination of the Cutting Edge Angle and Transmission Ratio
• Jaw Bend: 0 Degrees
• Steel Type: Chrome Vanadium Steel
• Head Type: Straight
• Insulated: No
• Jaw Width: 1 1/8 in
• Nose Type: Oval
• Standards: DIN ISO 5749
• Grip Style: Standard Cushion
• Jaw Length: 3/4 in
• Nose Shape: Oval
• Plier Item: Diagonal Cutting Pliers
• Plier Type: Diagonal Cutting Pliers
• Cut Profile: Standard
• Cutter Type: Diagonal Cutting Pliers
• Handle Type: Dipped Pistol Grip
• Nonsparking: No
• Handle Style: Pistol Grip
• Tether Ready: No
• Tether Style: Tether Capable
• Cutter Length: 3/4 in
• Grip Material: Plastic
• High Leverage: Yes
• Jaw Thickness: 7/16 in
• Spring Return: No
• Wire Stripper: No
• Blade Material: Chrome Vanadium Steel
• Overall Length: 7 1/4 in
• Plier Material: Steel
• Tether Capable: Tether Capable
• Voltage Rating: Not Rated
• Jaw Opening Type: Manual
• Surface Hardness: 64 HRC
• Head Offset Angle: 0 Degrees
• For Wire/Cable Type: Hard Wire, Medium-Hard Wire, Music Wire
• Maximum Jaw Opening: 1/8 in
• Plier Product Group: Pliers
• Overall Length Range: 6 - 8 in
• Insulated / Uninsulated: Uninsulated
• Additional Tool Functions: Wire Cutter
• Cutting Capacity/Material: 3/32 in Piano, 5/32 in Med Hard, 7/64 in Hard
• Maximum Wire Cutting Diameter: 0.1 in
• For Maximum Diameter Hard Steel: 1/8 in
• Part No.: 74 01 180
• EAN: 4003773022008
• Pliers: black atramentized
• Head: polished
• Handles: with plastic coating
• REACH compliant: does not contain SVHC
• RoHS compliant: not applicable
• Cutting capacities medium hard wire (diameter): 3.8 mm
• Cutting capacities hard wire (diameter): 2.7 mm
• Cutting capacities piano wire (diameter): 2.2 mm
• Joint Type: Forged-in axle
• Cutting Capacity - Piano Wire: 3/32"
• Cutting Capacity - Hard Wire (Steel Wire): 7/64"
• Cutting Capacity - Medium Hard Wire (Nail): 5/32"
• Cutting Edge Shape: Bevel
• Blade Length: 2"
• DIN: DIN ISO 5749
• Reach: does not contain SVHC
• RoHS: not applicable
• Handle Material: Plastic Coating
• Color Family: Red
• Application: For Very Tough, Continuous Use
• MFG Part # (OEM): 74 01 180 SBA
• Number of Tools Included: 1
