Knauf Insulation 5001544 Earthwool FG Pipe ASJ+-SSL 9 inches x 1 inches 12 Linear Feet

Product Description

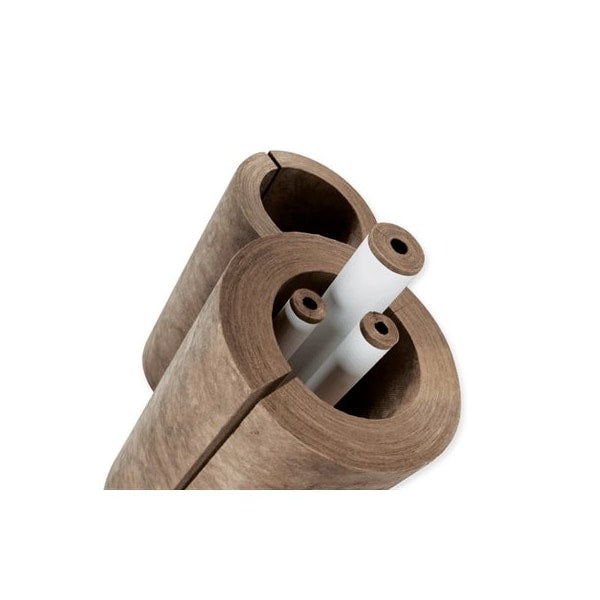

The KNAUF INSULATION 5001544 Earthwool Fiberglass Pipe Insulation features ASJ+-SSL facing and is designed for 9-inch IPS pipes with 1-inch insulation thickness. This molded, one-piece insulation is made from highly resilient, inorganic glass fibers bonded with ECOSE technology. It is suitable for hot, cold, concealed, and exposed piping systems operating from 0 to 1000 degrees F, ideal for industrial, commercial, and institutional applications. Each carton contains 12 linear feet.

• Easy to handle and fabricate, facilitating quick installation.
• Features ASJ+ facing, offering wrinkle and dimple-resistant qualities for a professional appearance.
• Provides excellent resistance to heat loss or gain, contributing to energy savings.

Product Highlights

Molded fiberglass pipe insulation with ASJ+ facing, designed for thermal efficiency and easy installation across a wide temperature range.

Product Information

Standard Information

• Brand: KNAUF INSULATION
• Manufacturer Part Number: 5001544
• Country of Origin: United States

Technical Specifications

• Country of Origin: United States
• Application: For industrial, commercial, institutional buildings, hot, cold, concealed and exposed piping systems operating at temperatures from 0 to 1000 deg F
• Color: Brown
• Density: 3.5 to 8.5 pcf
• Domestic/Import: Domestic
• Facing Type: ASJ-SSL
• Flame Spread Index: 25
• Inside Diameter: 9-3/4 in
• Iron Pipe Size: 9 in IPS
• Length: 3 ft
• Material: Fiberglass
• Model: 1000
• Smoke Developed Index: 50
• Sub Brand: Earthwool
• Temperature Rating: 0 to 1000 deg F
• Thermal Conductivity: 0.23 to 0.62 Btu-in/hr-sq-ft-deg F
• Water Absorption: Less than 5 %
• Water Vapor Permeability: 0.01 perm-in
• Actual Wall Thickness: 0.99 in
• Insulation Diameter: 11.7 in
• Insulation Thickness: 1 in
