Knape Vogt 8414P 18 Precision Drawer Slide 18 Inch Chrome

Product Description

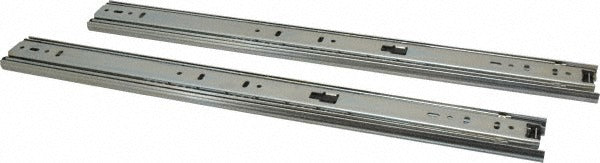

The KNAPE VOGT 8414P 18 is a full-extension precision drawer slide designed for demanding cabinet and casework applications. Built from steel with a chrome finish, this side-mount slide delivers smooth, consistent travel through a ball-bearing glide mechanism. The slide measures 18 inches in length with 18 inches of travel, allowing full drawer access at extension. A hold-open detent keeps the drawer open during loading or service, and a lever release returns it to the closed position. Rated at 100 pounds load capacity at full extension, this slide is suited for heavy-duty residential and light commercial drawer installations.

This drawer slide is intended for side-mount installation in cabinetry, shop furniture, tool storage, or equipment enclosures where precise, load-bearing drawer movement is required. The 18-inch travel length accommodates standard-depth drawer boxes. At 0.5 inches wide and 1-13/16 inches high, the slide profile fits into typical frameless and face-frame cabinet applications. The lever release mechanism allows smooth drawer removal without specialty hardware. Installers working in kitchen, bath, commercial millwork, or industrial enclosure builds will find this slide appropriate for medium-to-heavy load drawers.

Key Features

• Ball-bearing glide mechanism for smooth, consistent full-extension travel
• Hold-open detent keeps the drawer stationary at full extension
• Lever drawer release allows clean removal without additional tools
• 100 pound load capacity rated at full extension
• Side-mount configuration compatible with standard frameless and face-frame cabinets
• Chrome finish over steel construction for durability

Compatibility

Designed as an OEM-style side-mount precision drawer slide for residential and light commercial cabinet and casework applications requiring an 18-inch travel length.

Installation Notes

Installation is typically performed by a cabinetmaker, finish carpenter, or general contractor. Ensure the cabinet box and drawer are square before mounting to prevent binding. Use fasteners appropriate for the substrate material at each mounting point. Disconnect any powered components in the enclosure before beginning if the slide is used in an equipment cabinet context.
