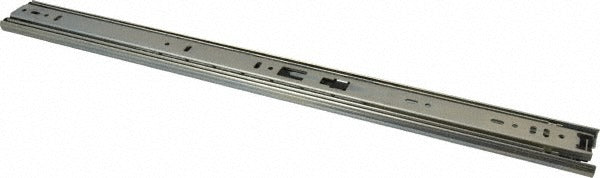

Knape Vogt 8400P 20 Ball Bearing Drawer Slide 20 Inches

Product Description

The KNAPE VOGT 8400P 20 is a ball bearing drawer slide designed for box drawers and vertical file drawers in cabinet and furniture applications. Built with a chrome finish, it provides smooth, consistent travel on its ball bearing glide mechanism. The slide measures 20 inches in length and 18 inches in width, with a height of 1.79 inches. Rated for up to 100 pounds of load capacity, it suits demanding storage installations where reliable drawer operation is required. A lever drawer release method allows for straightforward drawer removal when needed. Installation is handled by cabinetmakers, millworkers, and general contractors working on cabinet casework or office furniture systems.

This slide is suited for residential and light commercial cabinet builds, file cabinet retrofits, and vertical drawer applications. It fits box-style drawers and vertical file drawers where an 18-inch-wide, 20-inch-length slide is specified. The chrome finish integrates cleanly into standard metal or painted cabinet interiors. At 3.45 pounds, the slide is robust without adding excess weight to the drawer assembly.

Key Features

• Ball bearing glide mechanism for smooth, consistent drawer travel
• 100 lb load capacity supports heavy box or file drawer contents
• Lever drawer release for easy drawer removal without tools
• Chrome finish for corrosion resistance and clean appearance
• 20-inch slide length with 18-inch width fits standard drawer configurations

Compatibility

Designed as an OEM-style replacement or new-install slide for box drawers and vertical file drawers requiring an 18-inch-wide, 20-inch-length ball bearing slide.

Installation Notes

Installation is typically performed by cabinetmakers or finish carpenters using standard hand tools and a drill. Ensure the cabinet opening and drawer box dimensions match the 18-inch width and 20-inch length before mounting. Align slide pairs carefully on both sides of the cabinet interior to maintain even drawer travel. Follow manufacturer mounting hole patterns and use appropriate fasteners for the cabinet material.
