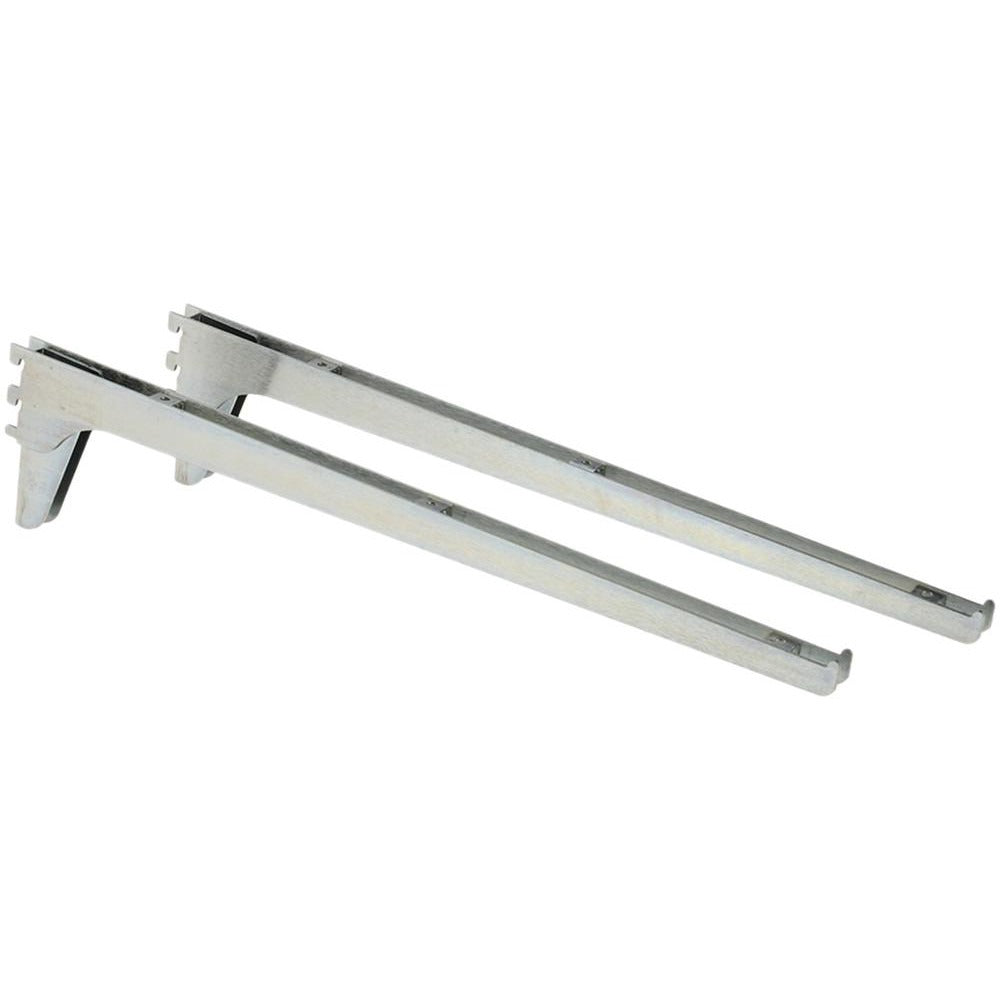

Knape Vogt 185 Ano 20 Steel Double Bracket 20 Inches

Product Description

The KNAPE VOGT 185 ANO 20 is a screw-on double bracket designed for wall-mounted shelving systems in residential and commercial settings. Constructed from steel with an anachrome coating, this 20-inch bracket provides a rated load capacity of 680 pounds, making it suitable for heavy-duty storage applications. The double-bracket design distributes shelf load across two contact points on the standard, improving stability and rigidity. Licensed contractors, millwork installers, and experienced DIYers install this bracket as part of a complete shelving system. At 1.39 pounds, it is compact enough to handle easily during installation while delivering substantial structural performance.

This bracket is used in wall-mounted shelving configurations where a vertical standard is first secured to the wall stud or solid backing. The 185 ANO 20 is intended for use specifically with 85 Series Standards by KNAPE VOGT. Typical applications include garage storage, utility rooms, retail display shelving, and workshop organization where consistent shelf spacing and high load ratings are required. The 20-inch length accommodates standard shelf depths commonly used in these environments.

Key Features

• Steel construction with anachrome coating for corrosion resistance and clean finish
• Double-bracket design for increased load stability at the shelf support point
• Rated load capacity of 680 pounds for heavy-duty shelving use
• 20-inch length accommodates standard and deeper shelf configurations
• Screw-on mount type for secure attachment to compatible 85 Series Standards
• Wall-mounting location keeps floor space clear in storage and work areas

Compatibility

Designed for use with 85 Series Standards by KNAPE VOGT. Verify standard series compatibility before installation to ensure proper fit and rated load performance.

Installation Notes

Install the 85 Series Standards into wall studs or into solid backing rated for the intended load before attaching this bracket. Power down any adjacent electrical circuits if working near wiring during wall preparation. Use appropriate fasteners for the wall substrate type to achieve the full 680-pound load rating. This installation is typically performed by a general contractor, millwork installer, or experienced tradesperson familiar with wall-mounted shelving systems.
