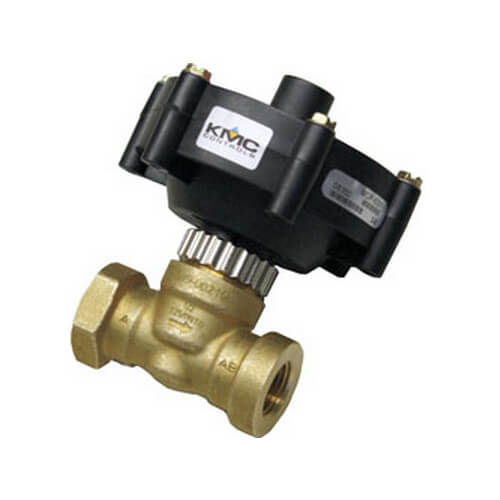

KMC Controls VCZ-4102CMBD 1/2 Inch Two-Way Pneumatic Zone Control Valve 3-8 PSI Actuator 4.0 Cv

Product Description

The KMC Controls VCZ-4102CMBD is a two-way pneumatic zone control valve designed for regulating water flow in various heating and cooling applications. Ideal for professionals in the HVAC industry, this valve offers efficient control over water flow through fan coil units, VAV terminal unit reheat coils, and more.

• Field-replaceable actuator with no tools required
• Operates efficiently within 40 to 180 degrees Fahrenheit
• Supports a maximum inlet pressure of 125 PSI

Product Highlights

This valve's compact design is suitable for installations in environments where space is limited. Its robust pneumatic actuator ensures reliable performance and durability.

Product Information

Technical Specifications

• Brand: KMC Controls
• MPN: VCZ-4102CMBD
• Type: Zone Control Valve
• Actuator Type: Pneumatic
• Connection Size: 1/2 inch FNPT x FNPT
• Flow Capacity (Cv): 4
• Weight: 1.66 lb
• Operating Temperature Range: 40°F to 180°F
• Max Inlet Pressure: 125 PSI
