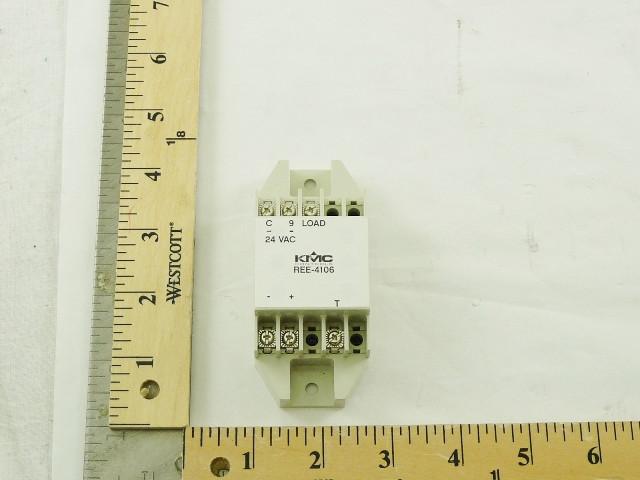

KMC Controls REE-4106 Proportional Reheat Relay Module for Normally Closed Valves with Thermostat Supply

Product Description

The KMC Controls REE-4106 is a proportional reheat relay module designed for the meticulous control of electric hot water valves in HVAC systems, particularly VAV terminal units. By linking directly to the thermostatic output, this device ensures that the water valve's operation is exactly synchronized with current thermal demands. The module is compatible with VEP series two-way and three-way valves, supporting up to three from a single REE-4106.

• Directly proportional control enhances system responsiveness and stability.
• Incorporates a 9.1 VDC power supply to support additional thermostat models.
• Optimized for easy installation and reliable performance in diverse environments.

Product Highlights

This module is essential for maintaining precise temperature control in commercial HVAC systems, ensuring both efficiency and comfort. The built-in power supply simplifies connections and reduces the need for additional components.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: REE-4106

Technical Specifications

• Type: Proportional Reheat Relay Module
• Compatibility: Normally Closed Valves
• Supply Voltage: 24 VAC
• Operating Temperature Range: 40 to 120 degrees Fahrenheit
• Enclosure Type: Flame Retardant Plastic
• Connection Type: 14-22 AWG wire size
