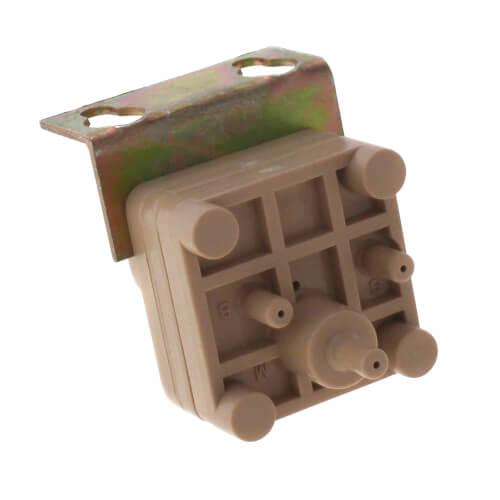

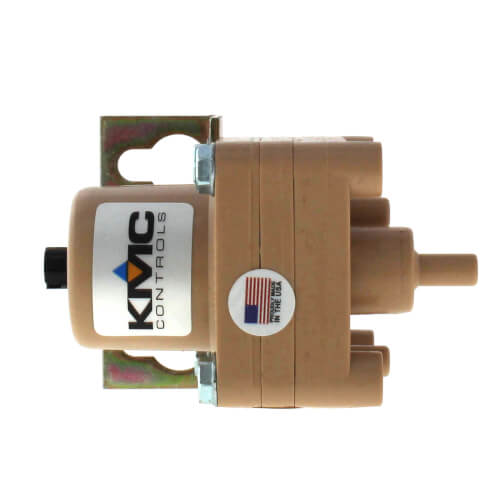

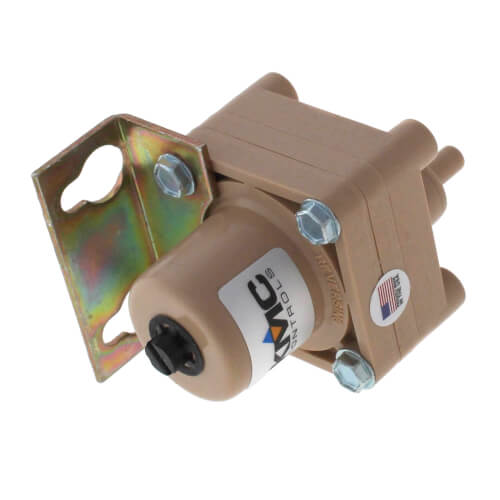

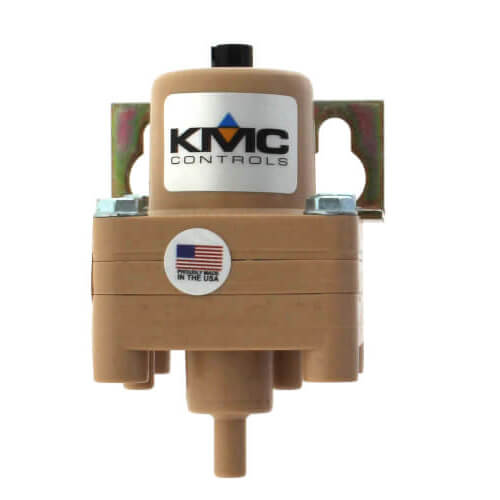

KMC Controls RCC-1112 Bias Adjustment Reversing Pneumatic Relay 8 PSI Calibration with Mounting Bracket

Product Description

The KMC Controls RCC-1112 Bias Adjustment Reversing Pneumatic Relay is a versatile component designed for various applications. It features an 8 PSI calibration and comes with a mounting bracket.

• 8 PSI Calibration
• Bias Adjustment
• Reversing Pneumatic Relay

Product Highlights

This pneumatic relay from KMC Controls features an 8 PSI calibration, making it suitable for precise control applications. It includes bias adjustment and a mounting bracket for ease of installation. The relay is designed to reverse a proportional signal from a controlling device, decreasing branch line pressure as input pressure increases.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: RCC-1112
• Product Type: Relay
• Manufacturer: KMC Controls

Technical Specifications

• Supply Pressure: 20 psig
• Max Pressure: 30 psig
• Operating Pressure: 0-20 PSI
• Temperature Range: 40°F to 120°F
• Item Weight: 0.15 pounds
• Dimensions: 2.9 inches (Length) x 4.15 inches (Width) x 2.55 inches (Height)
