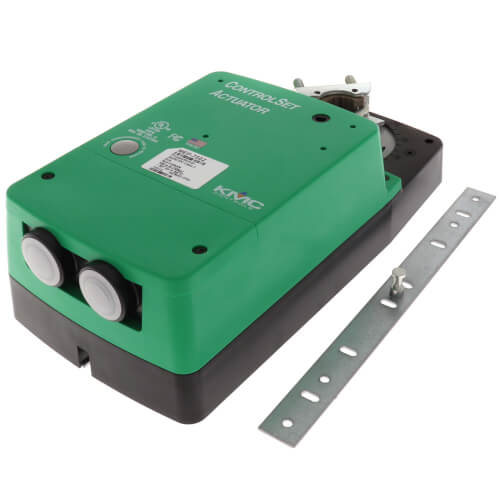

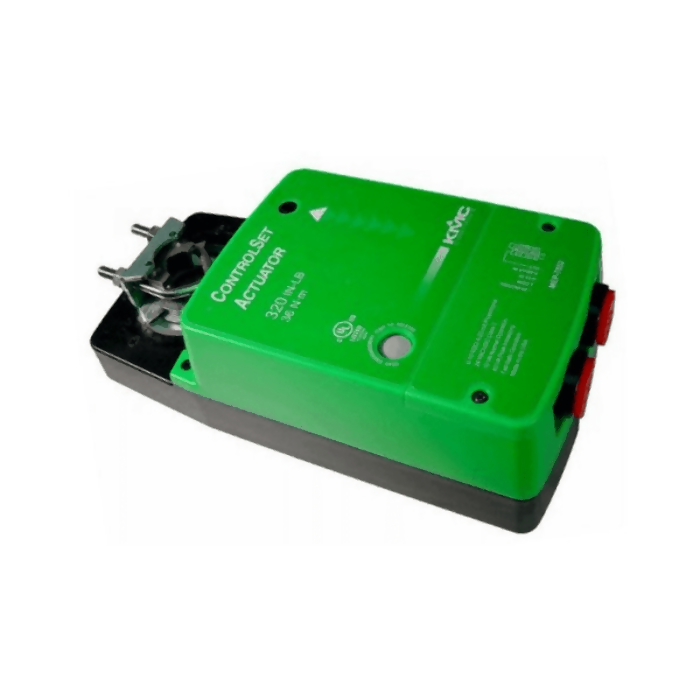

KMC Controls MEP-7802 Direct Coupled Actuator 320 in-lb

Product Description

The KMC Controls MEP-7802 is a direct coupled actuator designed to provide efficient control in HVAC systems. This actuator delivers a robust torque performance of 320 in-lb, making it suitable for large dampers and valves. The actuator supports multiple control signals including 0 to 10 VDC and 4 to 20 mA, allowing compatibility with various control systems.

• Non-spring return design
• Capacitor-driven for enhanced reliability
• Removable terminals for easy installation

Product Highlights

This unit features a fail-safe option that ensures consistent operation under all conditions. The actuator includes anti-jitter technology to minimize unnecessary wear on components, improving longevity and performance.

Product Information

Standard Information

• Brand: KMC Controls
• Part Number: MEP-7802

Technical Specifications

• Power Consumption: 24 VAC
• Operating Conditions: -22 F to 131 F
• Housing: NEMA 2, IP54
• Electrical Connections: Wire clamp type, 14 to 22 AWG, copper
• Torque: 320 lb-in
• Control Signal: Proportional 2 to 10 VDC or 4 to 20 mA
