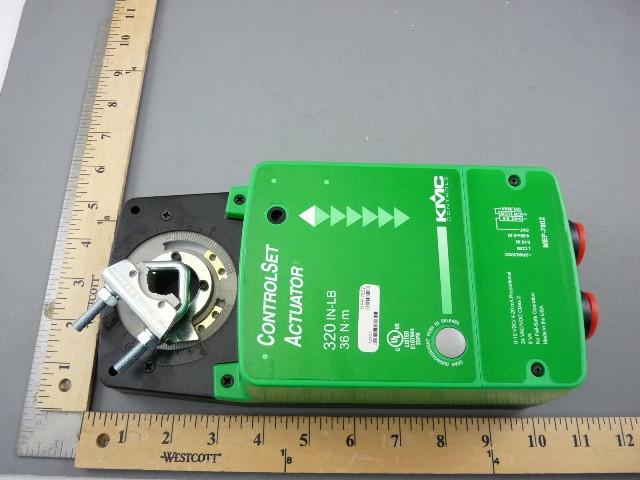

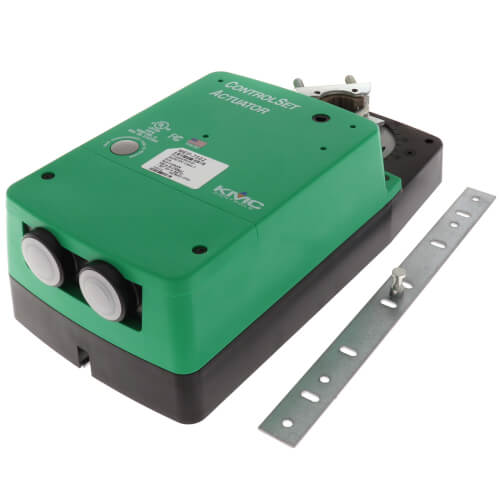

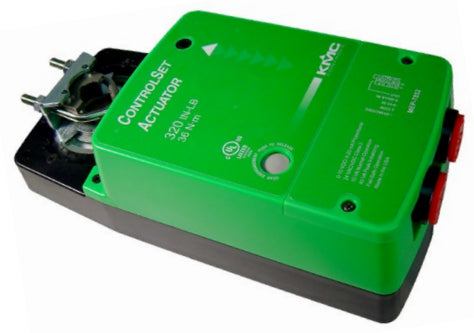

KMC Controls MEP-7802 Direct-Coupled ControlSet Actuators Proportional 2-10 VDC with Feedback 320 lb-in

Product Description

The KMC Controls MEP-7802 Actuator offers robust proportional control for HVAC systems, ensuring effective management of control dampers or valves. This model is recognized for its superior torque capability of 320 pound-inches and a rotation range of 94 degrees.

• Designed for heavy-duty applications.
• Feature-rich with anti-jitter circuitry and capacitor-driven, fail-safe mode.
• Compatible with standard 3/8 inch to 1.05 inch shafts.

Product Highlights

Utilize the MEP-7802 Actuator to optimize the operational efficiency and precision in large scale HVAC setups. Its advanced features including optional position feedback through a potentiometer or voltage feedback make it an essential component for modern systems.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: MEP-7802

Technical Specifications

• Control Signal: Proportional 2 to 10 VDC
• Supply Voltage: 24 VAC, Class 2
• Torque: 320 lb-in
• Feedback Type: Optional potentiometer or voltage feedback
• Mounting: Direct on 3/8 inch to 1.05 inch round or 5/16 inch to 5/8 inch square shafts
• Features: Anti-jitter circuitry, switch-selectable fail direction, manual shaft positioning via gear disengagement button
• Conduit Fittings: 1/2 inch NPS
