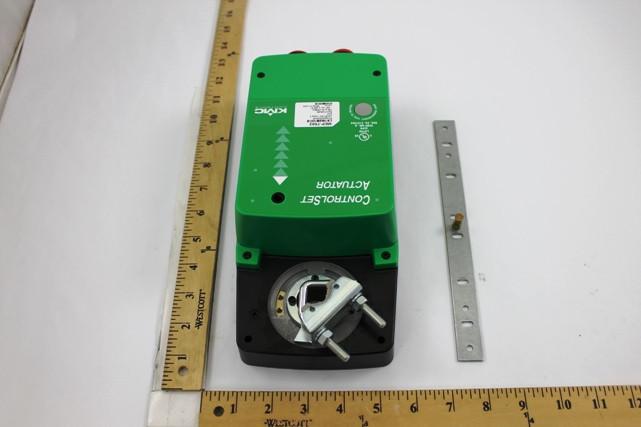

KMC Controls MEP-7502 Actuator 24VAC/DC 180in/lb Prop DCA

Product Description

The KMC Controls MEP-7502 is a state-of-the-art actuator designed for reliable and precise control in HVAC applications. Offering a torque of 180 inch-pounds with a power input of 24 VAC/DC, this model is optimal for both industrial and commercial settings.

• Equipped with anti-jitter circuitry to minimize unnecessary wear.
• Features proportional control with options for 2-10 VDC or 4-20 mA input signals.
• Fail-safe options with capacitor-driven models and selectable directions.

Product Highlights

Offering robust performance and durability, the MEP-7502 integrates seamlessly into various HVAC systems, enhancing control over motors and actuators.

Product Information

Standard Information

• Mounting: Direct coupling to standard shaft sizes, preventing the need for complex linkages.
• Feedback Output: Optional voltage or potentiometer outputs reflecting actuator position.

Technical Specifications

• Control Signal: 2-10 VDC or 4-20 mA, selectable.
• Feedback Option: 1-5 or 2-10 VDC voltage feedback.
• Manual Override: Gear disengagement button for manual shaft adjustment.
• Protection: Designed with overload protection and without the need for limit switches.
