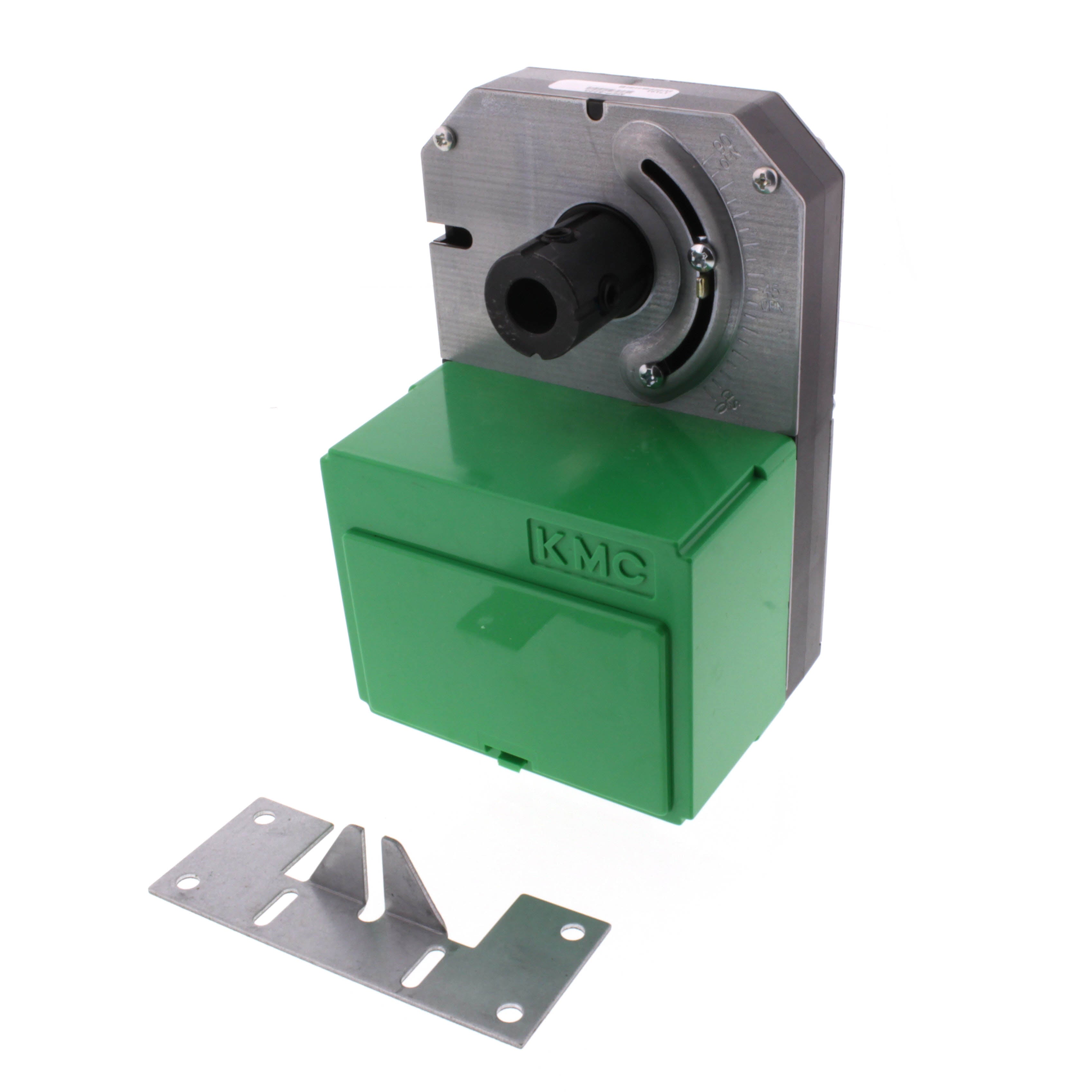

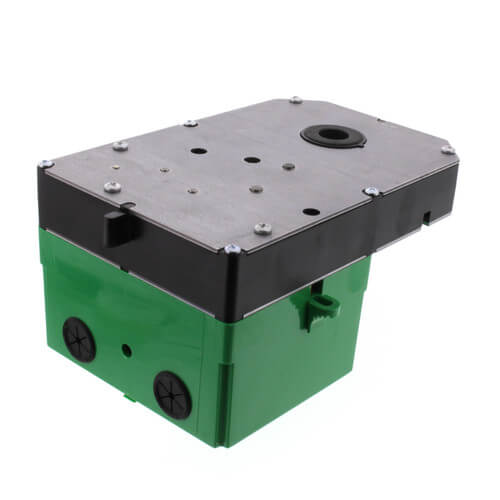

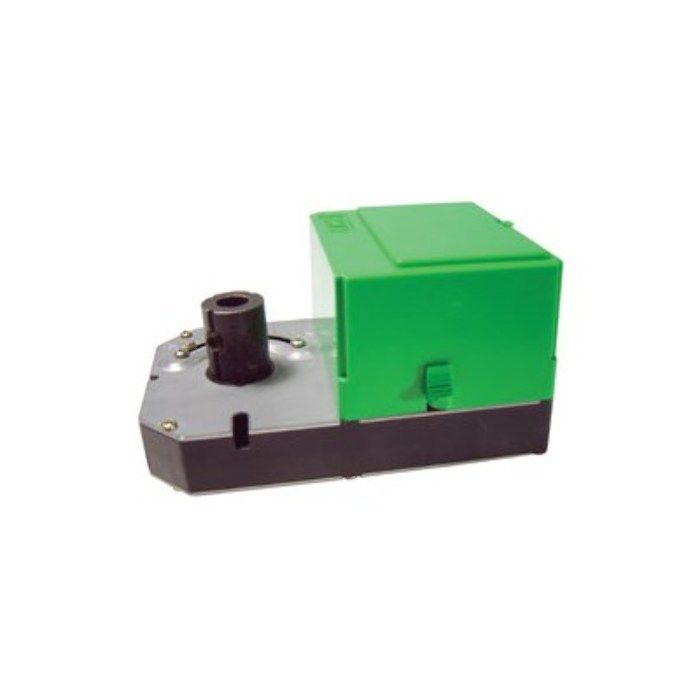

KMC Controls MEP-5223 Direct Coupled Actuator 10 in-lb

Product Description

The KMC Controls MEP-5223 is a direct coupled actuator designed for HVAC control applications. This actuator offers reliable performance with a torque rating of ten inch-pounds. It operates on 24 VAC and has a fast actuation time of fifteen seconds, making it suitable for quick adjustments in air flow systems.

• Fast actuation time of 15 seconds
• Direct coupled mounting
• Suitable for round dampers with a 45-degree fully closed blade angle

Product Highlights

This actuator is designed for effective control of HVAC systems, ensuring efficient performance while handling air flow dynamics.

Product Information

Standard Information

• Brand: KMC Controls
• Part Number: MEP-5223

Technical Specifications

• Power Consumption: 24 VAC
• Operating Conditions: 32 F to 140 F (0 C to 60 C)

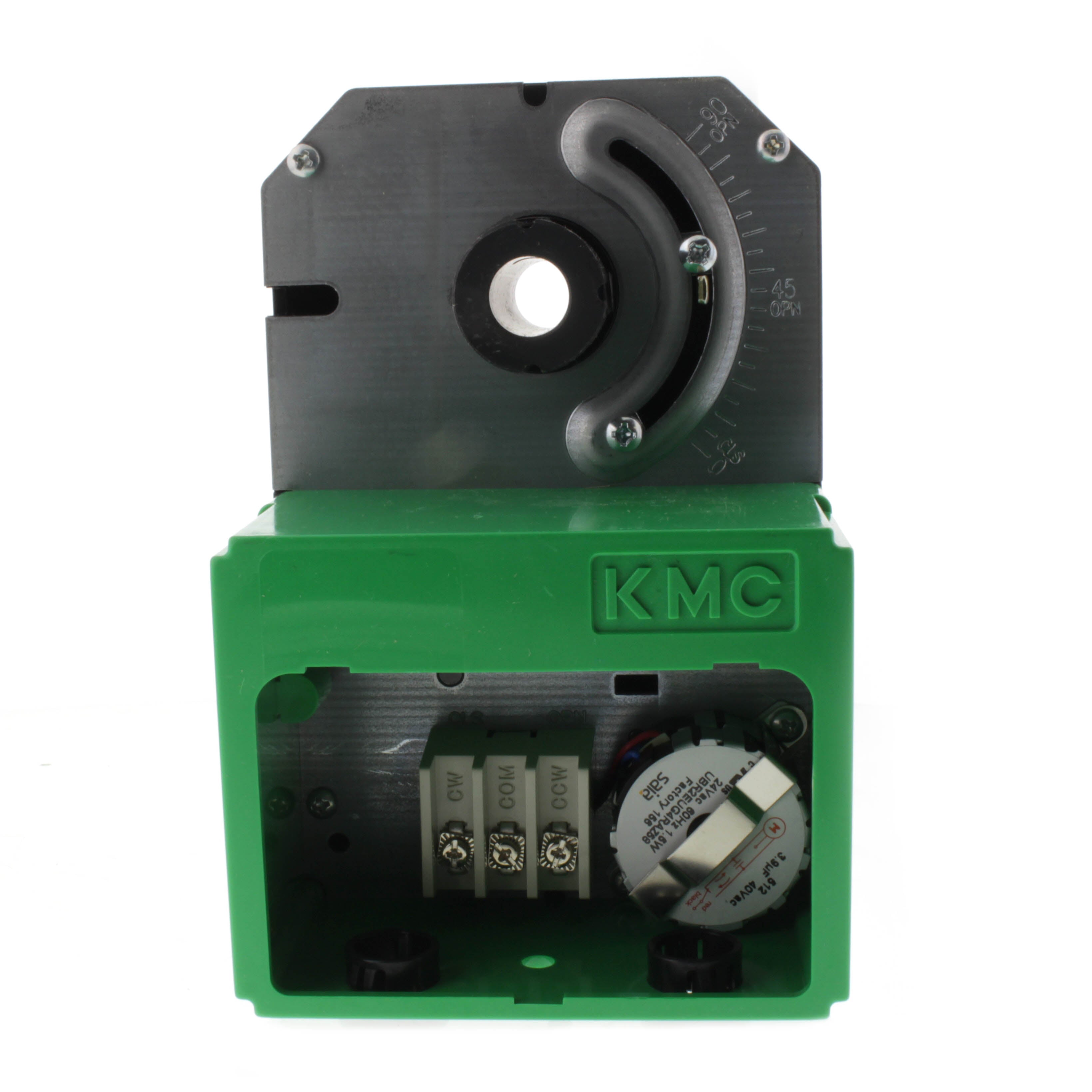

• Electrical Connections: Plated screw terminals for 14-22 AWG copper
• Housing: Green, flame-retardant plastic
• Torque: 10 inch-pounds
• Runtime: 15 seconds
• Spring Return: Non-spring return
• Aux. Switch: None
