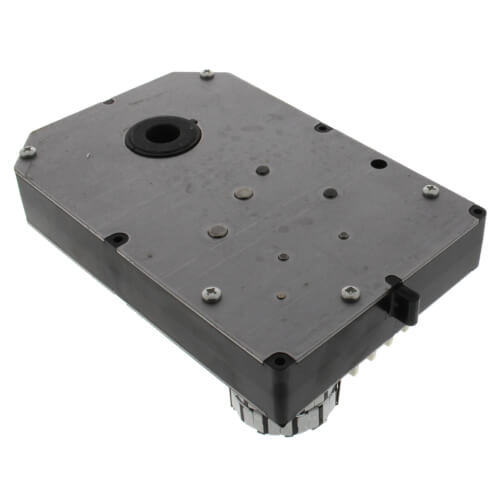

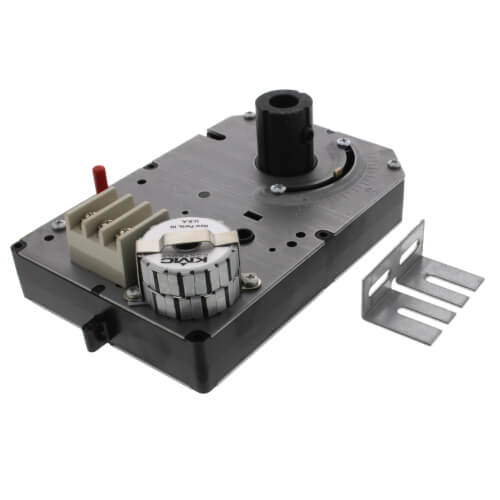

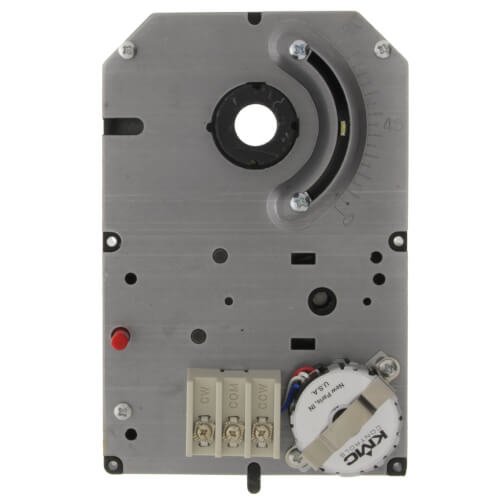

KMC CONTROLS MEP-5061 Direct-Coupled Tri-State ControlSet Actuator 24V 50LBS 90Deg

Product Description

The KMC CONTROLS MEP-5061 is a high-performance, direct-coupled tri-state ControlSet actuator designed for precision movement and high force in industrial settings. Ideal for controlling small dampers in air terminal units, this actuator provides flexibility and reliable performance.

• Delivers a force of 50 pounds and features a 90-degree stroke angle.
• Three-wire design for simplified electrical connections.
• Compatible with SPDT floating thermostat or building automation systems.

Product Highlights

This compact yet robust device can precisely control lifting, pushing, and positioning operations within confined spaces. The durable construction with aluminum housing and stainless steel push rods ensures longevity and resistance to corrosion. It includes built-in limit switches for safety and a manual gear disengagement button for easy handling.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: MEP-5061

Technical Specifications

• Power Supply: 24V AC, Class 2
• Thrust: 50 lbs
• Rotation Angle: 90 degrees
• Operation Speed: 300 sec/90°
• Connection Type: Three-wire
• Housing Material: Aluminum
• Shaft Compatibility: 1/2 inch and 3/8 inch diameter (adapter required for 3/8 inch)
