Kmc Controls MEP-4622Q Actuator Proportional/2-Pos., 24 VAC/VDC, Non-Failsafe, 54 in-lb, 3-sec/90-deg., 2 Aux-Sw.

Product Description

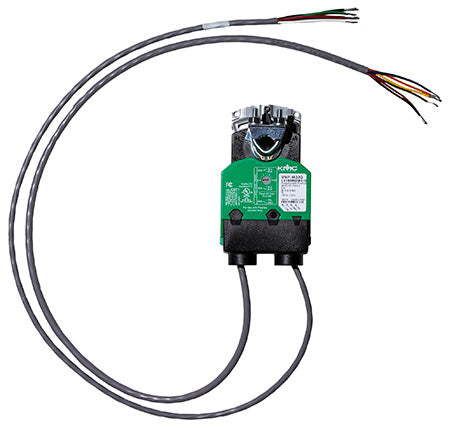

The KMC CONTROLS MEP-4622Q actuator is a compact, powerful direct-coupled ControlSet actuator that provides 90° rotation within three seconds. It delivers a minimum torque of 54 in-lb over the 95° angular rotation, designed for dampers or valves in critical HVAC, laboratory fume hood, and life-safety applications.

• Compact and powerful direct-coupled ControlSet® actuators
• 90° rotation within three seconds
• Minimum torque of 54 in-lb. available over the 95° angular rotation

Product Highlights

This actuator supports proportional or two-position control and mounts directly to 1/4- to 5/8-inch round shafts or 1/4- to 7/16-inch square shafts.

Product Information

Standard Information

• Brand: KMC CONTROLS
• Manufacturer Part Number: MEP-4622Q

Technical Specifications

• Actuator Type: Electric
• Auxilary Switch: 2
• Brand: KMC Controls
• Control Input: 0-10 VDC, 2-10 VDC, 24 VAC, 24 VDC
• Fail-Safe: No
• Feedback: Voltage
• Input Types: Proportional, Two-position
• Mounting: V-Bolt/ Screws
• Normality (Fail): Fail In Place
• Power Supply: 24 VAC, 24 VDC
• Timing (sec): 3
• Torque: 54 in-lb
• Category: Damper
• Product category: Dampers & Actuators
• Product subcategory: Non-Spring Return Damper Actuators
• Short desc: KMC, Actuator, Proportional / 2 Position
• Supplier part number: MEP-4622Q
