Product Description

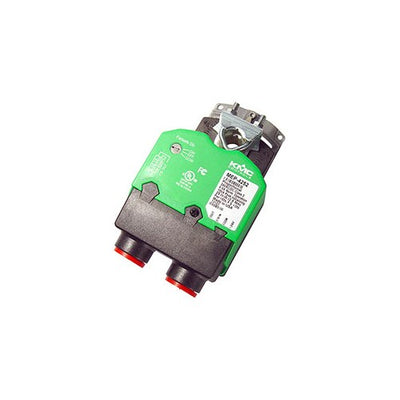

The KMC CONTROLS MEP-4552 Proportional Pressure Transducer is engineered for precision in controlling damper or valve positioning in HVAC systems. Operating with a 24VAC/DC power source, the transducer is equipped with a fail-safe design ensuring reliable performance even during power interruptions.
- Supports both proportional and tri-state control.
- Fail-safe mechanism with optional manual override for testing or operational purposes.
- Designed for direct mounting on standard shaft sizes, minimizing the need for complex linkages.
Product Highlights
This transducer comes with a robust fail-safe feature providing consistent torque and a noise reduction feature for near-silent operation. It features adjustable end-stops and manual gear disengagement for user-friendly setup.
Technical Specifications
-
Power Supply: 24 VAC/DC
-
Control Signal: Proportional 2 to 10 VDC
-
Torque Output: 45 lb-in
-
Fail-safe Mode: Spring Return
-
Connection: Fixed terminals or prewired 18 AWG cable
-
Feedback Type: 1 to 5 VDC or 2 to 10 VDC (selectable)
-
Mounting: Direct to 1/4 inch to 5/8 inch round or 1/4 inch to 7/16 inch square shafts
