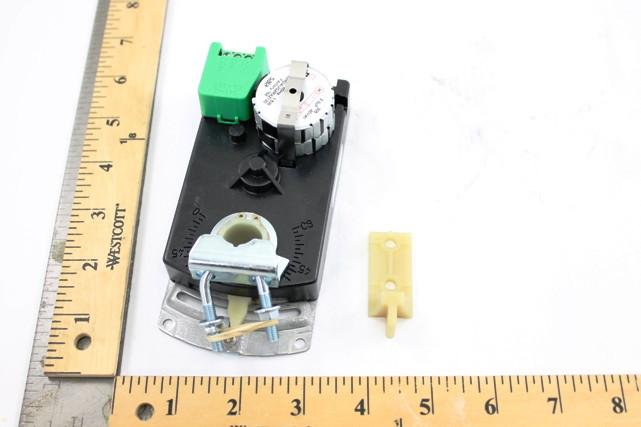

KMC Controls MEP-4003 Electric Actuator 0-10VDC Prop DCA 40in/lbs

Product Description

The KMC Controls MEP-4003 is a robust electric actuator designed for precise control in HVAC systems. Ideal for regulating dampers and valves, this model offers reliable operation in applications demanding up to 40 inch-pounds of torque.

• Durable construction ensures long-lasting performance in industrial settings.
• Compatible with floating control signals for versatile operation.
• Equipped with a manual override for easy adjustment.

Product Highlights

This actuator boasts anti-jitter circuitry that minimizes unnecessary adjustments, reducing wear on valve packing and damper components. A user-friendly auto-mapping feature recalibrates the control signal for improved precision. Additionally, it offers adjustable mechanical end stops to accommodate various installation requirements.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: MEP-4003

Technical Specifications

• Torque: 40 in-lbs
• Control Signal: 0 to 10 VDC, floating
• Temperature Range: -22 to 131°F
• Electrical Connections: 22-14 AWG wire clamp
• Dimensions: Height: 9 inches, Depth: 5-3/8 inches, Width: 2-5/8 inches
