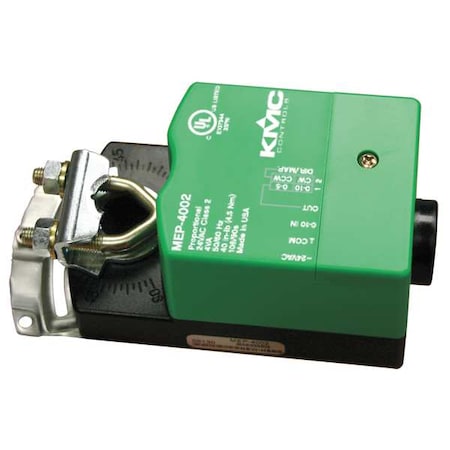

KMC Controls MEP-4002 Electric Actuator 40 in-lb Proportional

Product Description

The KMC Controls MEP-4002 Electric Actuator offers reliable and precise control for HVAC systems. This product is designed for modulating control of building ventilation dampers and controlling valves requiring up to 40 in-lb torque.

• Direct coupling to 1/4 inch to 5/8 inch round or 1/4 inch to 7/16 inch square shafts without the need for additional linkages.
• Features a non-spring return mechanism with proportional control from 2 to 10 VDC.
• Capable of a 0 to 95-degree stroke with a timing range of 90 to 108 seconds for full rotation.

Product Highlights

Efficient operation with low power consumption of just 4VA. Integrated anti-jitter technology prevents unnecessary adjustments, reducing wear and tear on components.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: MEP-4002

Technical Specifications

• Torque: 40 in-lb
• Voltage: 24V AC/DC
• Signal Type: Proportional
• Mounting Type: Direct Mount
• Dimensions: Height: 2.5 inches, Width: 2.625 inches, Depth: 5.375 inches
