KMC Controls MCP-1160-1020 Pneumatic Damper Actuator 8-13 PSI

Product Description

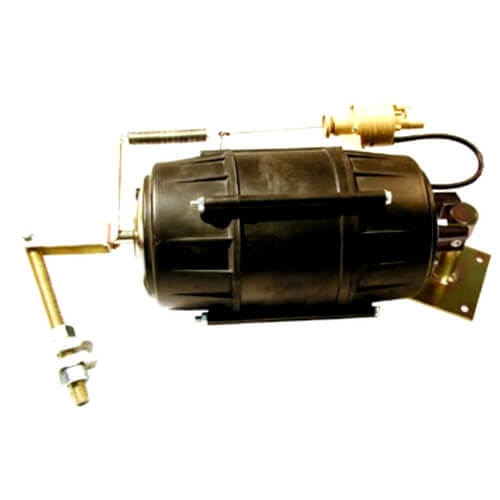

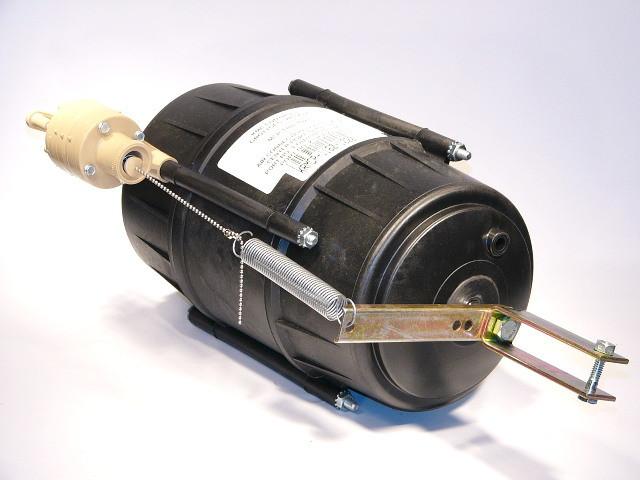

The KMC Controls MCP-1160-1020 Pneumatic Damper Actuator is engineered for efficient airflow management in HVAC systems. Integrating a high-quality plastic positioner, this actuator operates effectively in the 8 to 13 PSI range, making it ideal for large air control dampers. It features a universal mounting bracket that allows for flexible installation on dampers, butterfly valves, or variable fan inlet vanes.

• Optimized for 60 to 120 degrees of angular damper rotation at full stroke.
• Equipped with a robust 8 to 13 PSI main spring for reliable return force.
• Comes with clevis, plastic positioner, and bracket for complete setup.

Product Highlights

Designed for both modulating and two-position operations, this pneumatic actuator can be utilized with or without an adjustable start-point positioner, making it a versatile choice for various applications.

Technical Specifications

• Product Type: Pneumatic Actuator
• Pressure Range: 8 to 13 PSI
• Diameter: 6 inches
• Weight: 12 pounds
