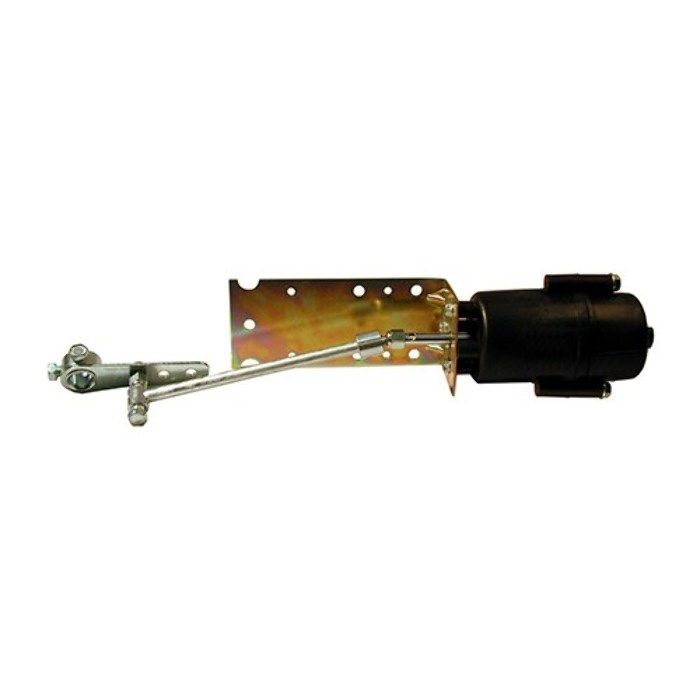

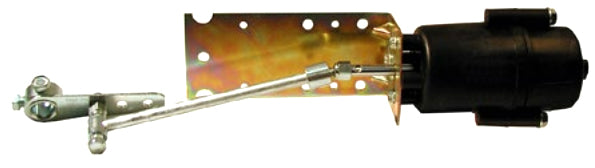

KMC Controls MCP-1020-2311 Pneumatic Damper Actuator 3-12 PSI with 1/2 Crank Arm

Product Description

The KMC Controls MCP-1020-2311 is a pneumatic damper actuator designed for use in pneumatic control systems. This actuator is effective for positioning automatic air dampers, making it suitable for various system applications. It can be used in gradual or two-position control scenarios, ensuring flexibility in operation.

• 3 to 12 psi spring range
• Two mounting options: post or right-angle bracket
• Includes a crank arm with a half-inch diameter

Product Highlights

This actuator supports efficient airflow management with its versatile designs and can fit different damper shafts, providing adaptability where needed.

Product Information

Standard Information

• Brand: KMC Controls
• Part #: MCP-10202311

Technical Specifications

• Stroke length: 2 inches
• PSI Range: 3-12 psi
• Weight: 1.87 lbs
• Shipping dimensions: 7 inches depth, 5 inches width, 4 inches height
• Includes: crank arm
• Applicable for: gradual or two-position control
• Mounting compatibility: fits 1/2 inch or 3/8 inch damper shafts
• Replacement part: VTD-1630
