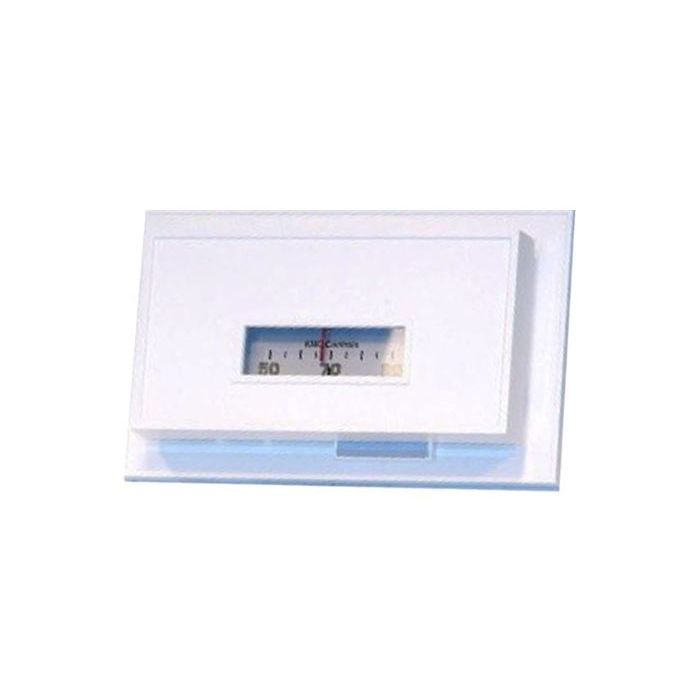

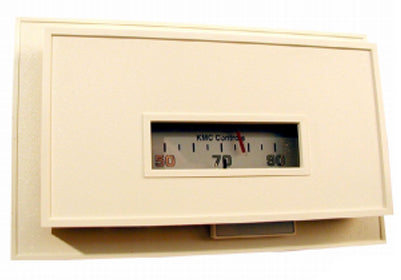

KMC Controls CTE-1101-10 Electronic Thermostat Power Single-Setpoint Direct Acting Cooling Horizontal °F Thermostat

Product Description

The KMC Controls CTE-1101-10 is an electronic thermostat designed for controlling valve and damper actuators in HVAC systems. It features a single setpoint that works for cooling applications and provides adjustment of temperature limits directly on the thermostat. This model is compatible with various KMC controller-actuators.

• Adjustable minimum and maximum temperature limits
• Additional 0 to 6 VDC output available for KMC REE-4000 series relay modules
• Visible or hidden setpoint indicator

Product Highlights

This thermostat allows control of HVAC solutions efficiently and effectively by providing features tailored for ease of use.

Product Information

Standard Information

• Brand: KMC Controls
• Part Number: CTE-1101-10

Technical Specifications

• Weight: 0.6 lbs
• Material: Plastic
• Max Temperature: 120 °F
• Min Temperature: 40 °F
• Enclosure Type: Flame Retardant Plastic
• Shipping Dimensions: 5 inches (Depth) x 4 inches (Width) x 2 inches (Height)
