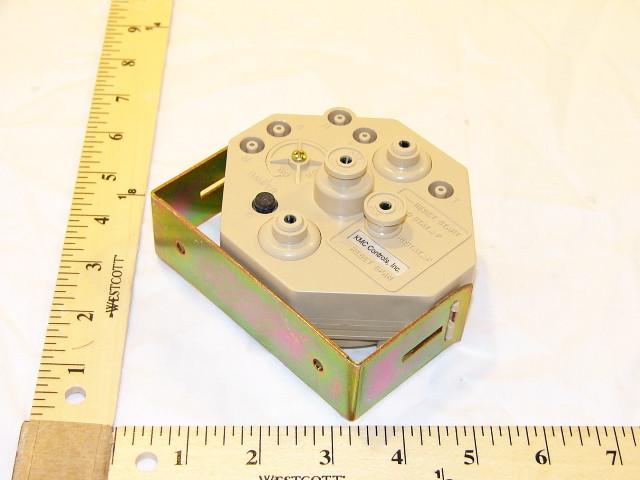

KMC Controls CSC-3023-10 Reset Volume Controller for Variable Air Volume Systems

Product Description

The KMC Controls CSC-3023-10 Reset Volume Controller is an essential tool for managing air volume in heating and cooling systems. Specifically designed for Variable Air Volume (VAV) systems, this controller ensures efficient operation with direct or reverse action compatibility.

• Adjustable minimum and maximum airflow setpoints
• Supports both normally open and normally closed VAV units
• Includes mounting bracket and accessories for installation

Product Highlights

This controller facilitates precise control of air volume between predetermined setpoints, dictated by a master control like a room thermostat. Its universal applicability makes it ideal for both new installations and replacement projects in commercial buildings.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: CSC-3023-10

Technical Specifications

• Max Pressure: 30 psi
• Operating Temperature: 40 to 120 degrees Fahrenheit
• Connection Type: Push-on fittings for 1/4 inch OD tubing
• Main Air Pressure (PSIG): 15 to 30 psig
• Air Consumption: 28.8 SCIM at 20 psig
• Includes: Mounting bracket, HFO-0006/SSS-1000 series flow sensors
