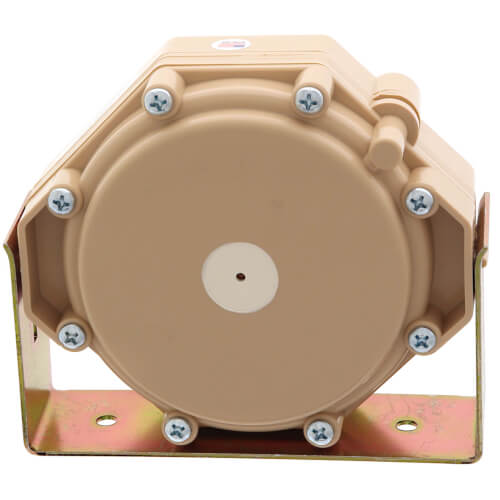

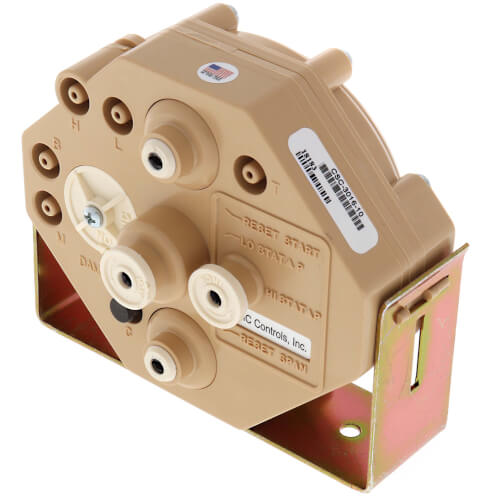

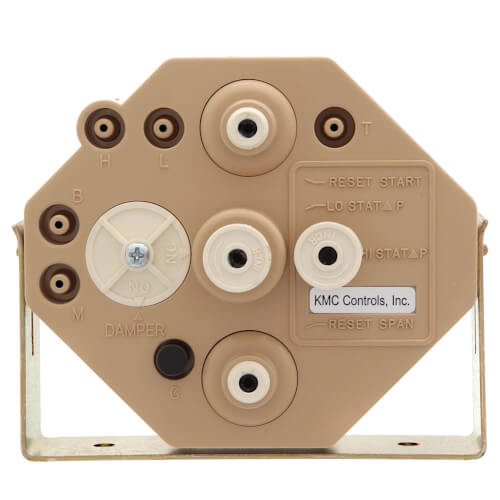

KMC Controls CSC-3016-10 Reset Volume Controller 2 Range 8 Start

Product Description

The KMC Controls CSC-3016-10 is a reset volume controller designed for precise control of air volume in industrial applications. It ensures durability and ease of installation in space-constrained environments with its compact design and rugged construction.

• Control Range: 2 range with 8 start
• Heavy-duty construction for industrial environments
• Accurate control of air volume

Product Highlights

This reset volume controller is suitable for HVAC systems and industrial machinery, providing accurate and repeatable control of air flow. It simplifies installation with its compact design and flexible mounting options.

Product Information

Standard Information

• Item Number: CSC-3016-10
• Brand: KMC Controls

Technical Specifications

• Dimensions: 4.25 inches length, 4.35 inches width, 4.5 inches height
• Weight: 0.83
• Control Range: 2.0
• Start Pressure: 8 PSIG
• Max Pressure: 30 PSI
• Max Temperature: 120°F
• Min Temperature: 40°F
• Differential: 0 to 2.0 wc (498 Pa)
