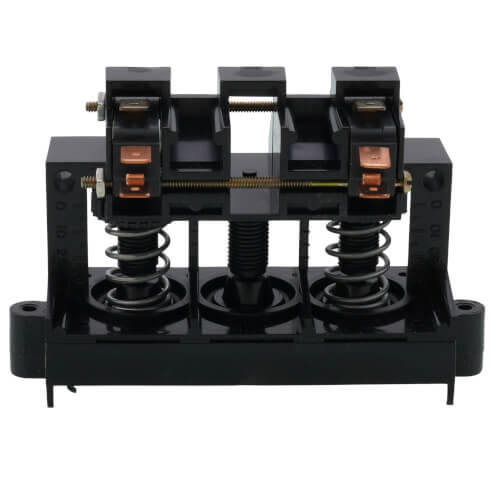

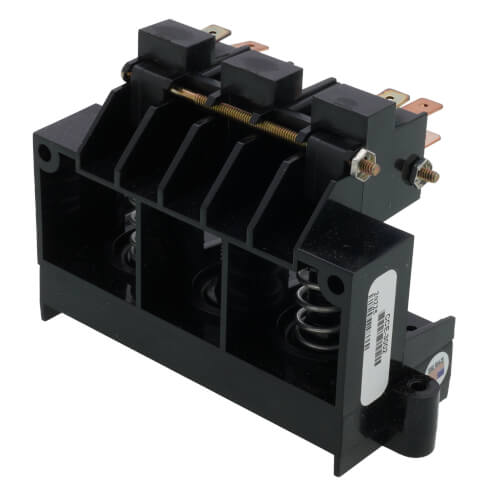

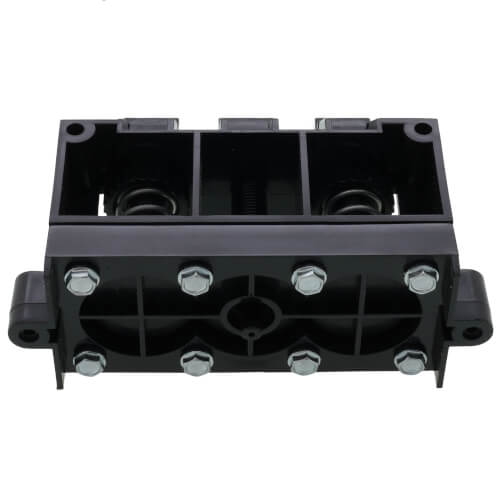

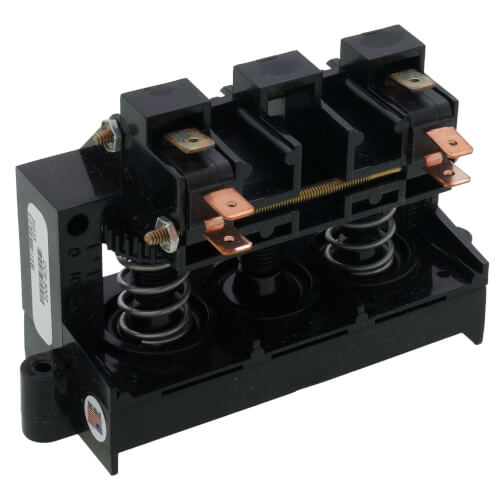

KMC CONTROLS CCE-3002 2-STAGE P/E SWITCH ELECTRIC PNEUMATIC RELAY

Product Description

Introducing the KMC Controls CCE-3002, a robust 2-stage pneumatic-electric switch designed for a variety of industrial applications. This dynamic component is essential for operations requiring two or three predetermined air pressure settings. With its reliable performance and high-quality construction, the CCE-3002 enhances the control and efficiency of industrial systems.

• Durable construction withstands harsh conditions.
• Precision engineering ensures consistent and accurate operation.
• Versatile applications across various industrial environments.

Product Highlights

This 2-stage pneumatic-electric relay is a best-fit for applications like fan induction terminals or multi-stage electric heating/refrigeration setups. It features SPDT switching on each stage with an electrical rating suitable for heavy-duty use, supporting up to 2 HP at 250 VAC.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: CCE-3002

Technical Specifications

• Electrical Rating: Up to 25 amps per switch at 120/240/277 VAC
• Setpoint Range: 2 to 20 psig (14 to 138 kPa)
• Max Pressure: 30 PSI
• Voltage: 120v, 240v, 277v
• Temperature Range: 40°F to 150°F
• Weight: 0.45 pounds
• Shipping Dimensions: 3.5 x 2 x 2 inches
