Product Description

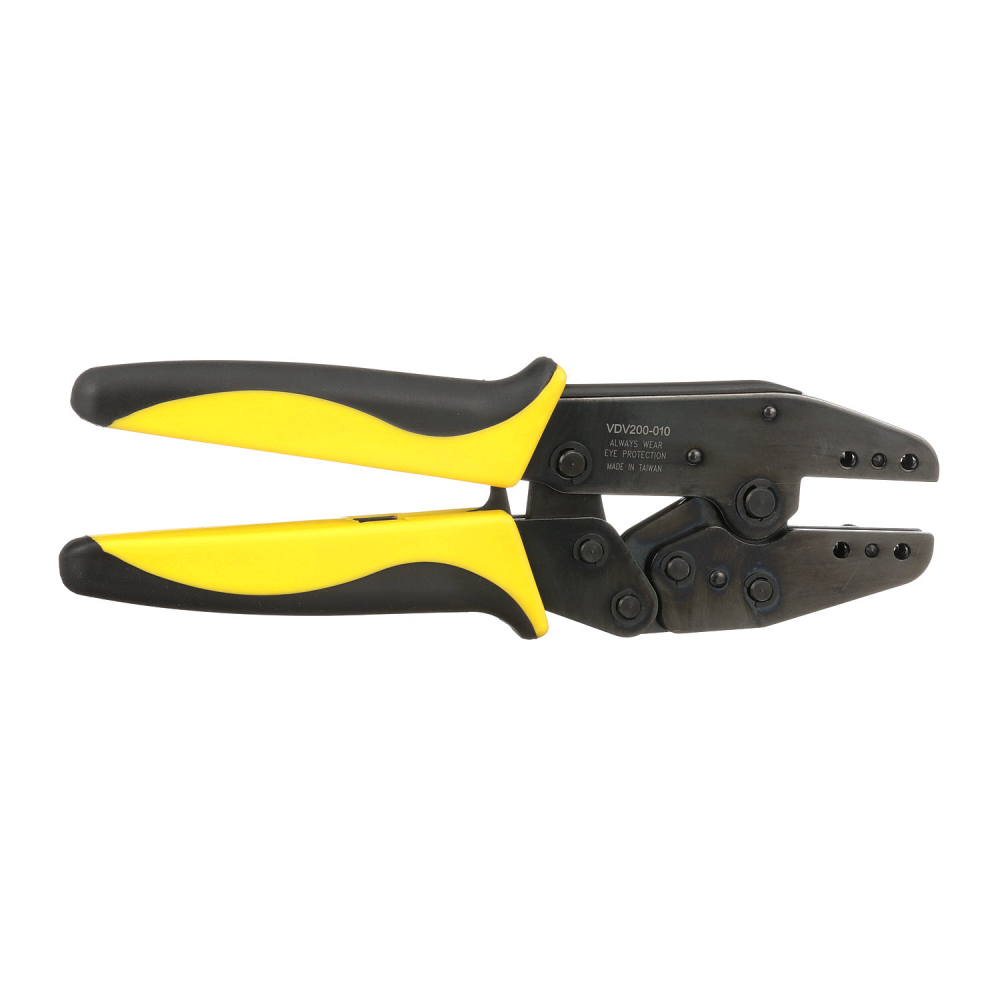

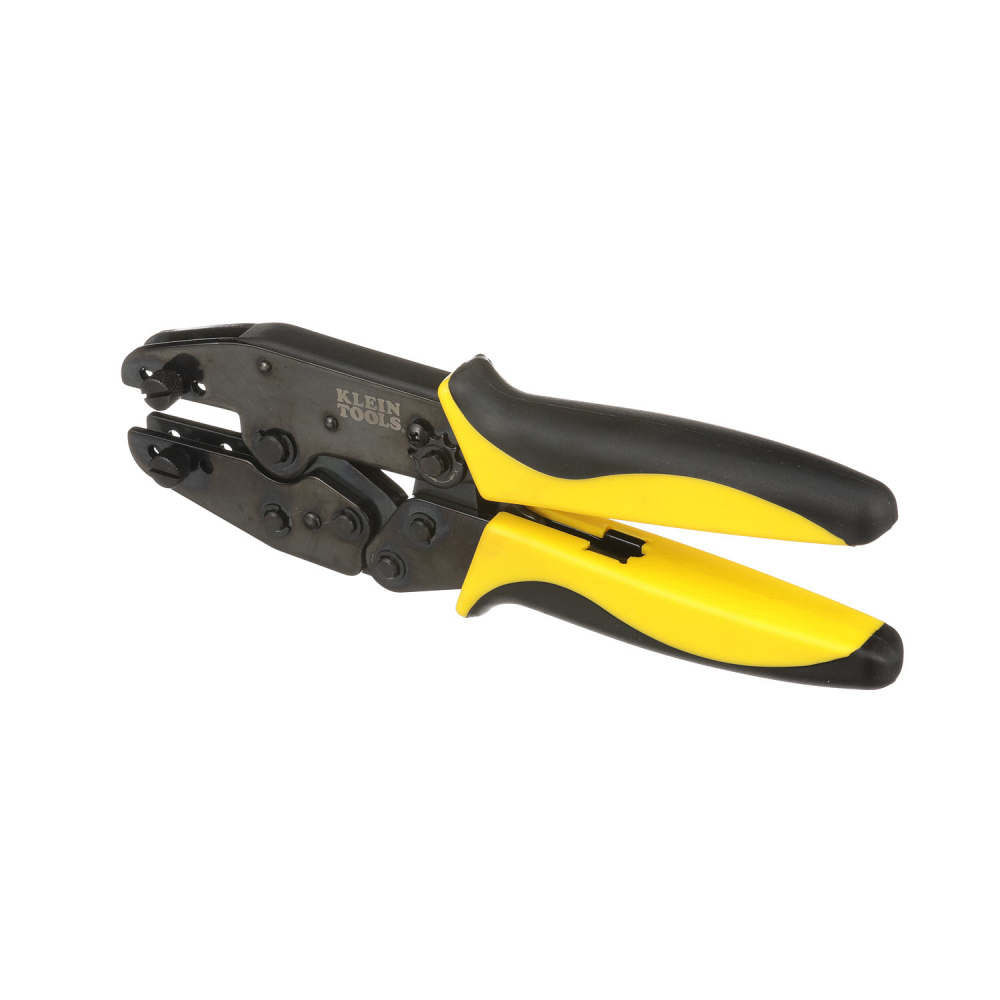

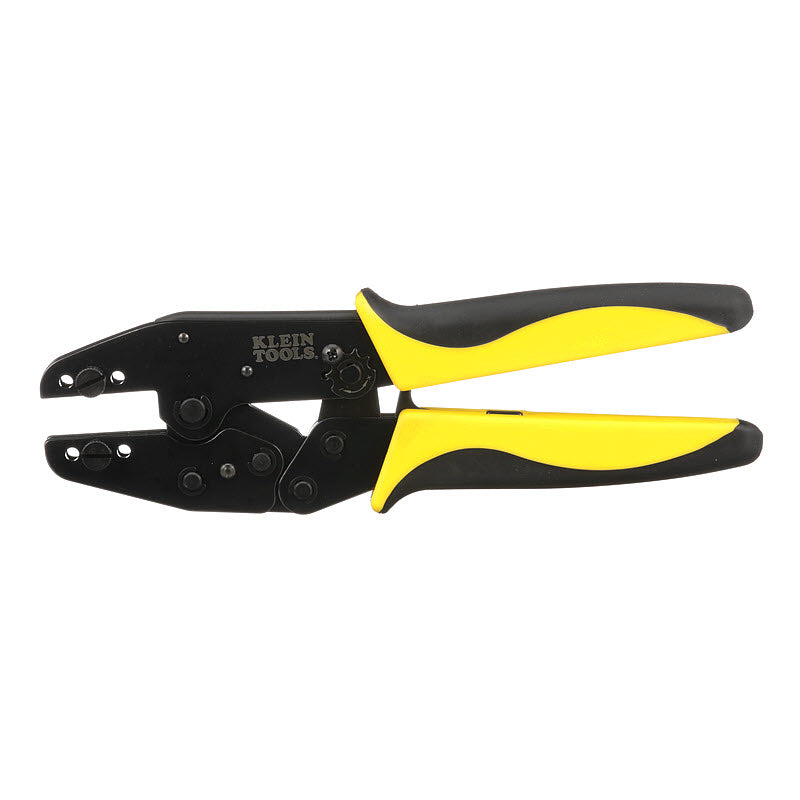

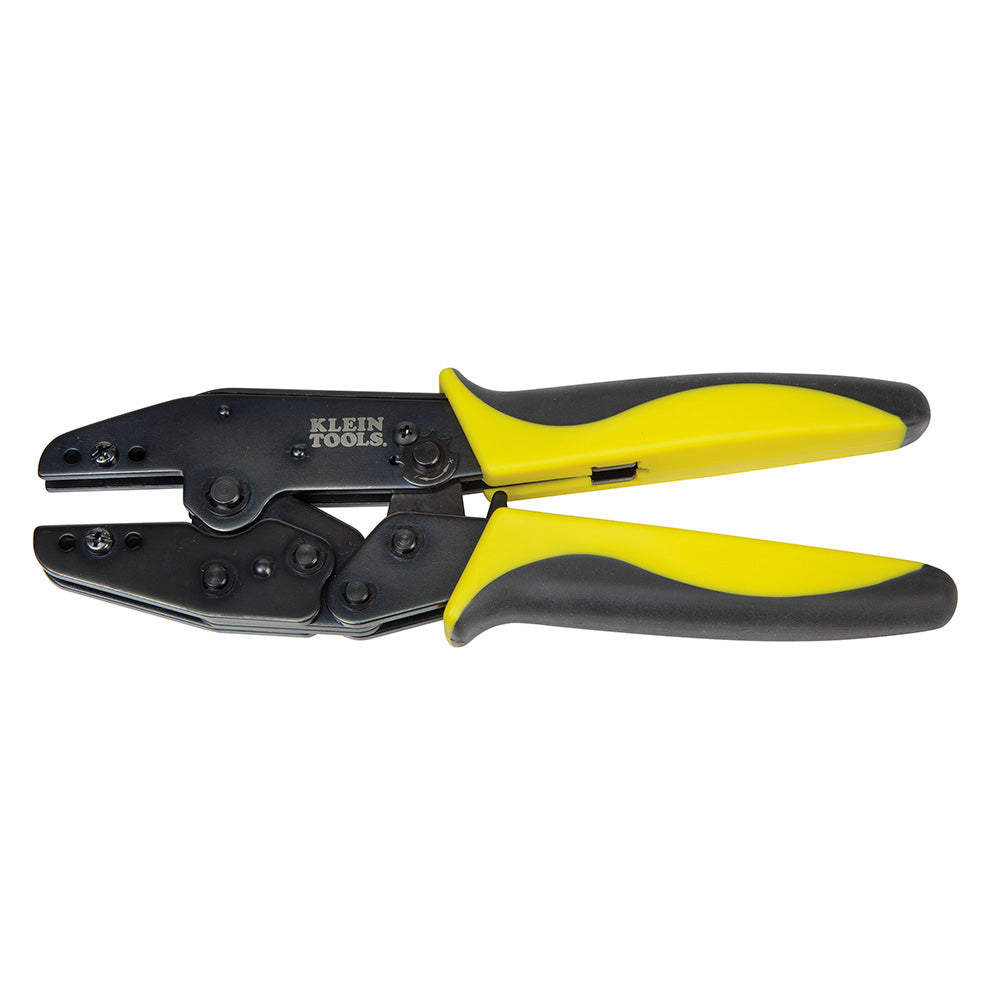

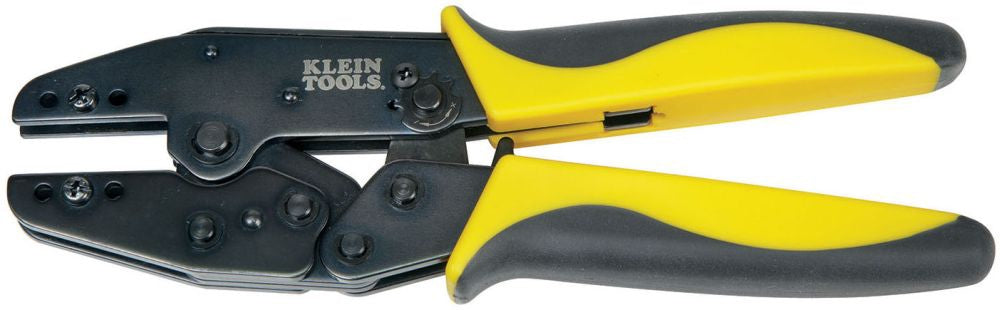

The Klein Tools VDV200-010 ratcheting crimper frame is designed for fast, reliable connector installations for CATV, electrical, home theater, satellite, and security systems. Its full-cycle ratchet action ensures a complete, precise crimp every cycle, with a preset tension for optimum performance.
- Ratchet mechanism prevents release prior to full compression.
- Safety crimp release helps eliminate rejected terminations.
- Steel body with black-oxide finish for corrosion resistance and durability.
Product Highlights
This crimper frame features enhanced comfort grips and thumb screws to secure die sets for quick changes. Optional, quick interchangeable die sets are available.
Product Information
Standard Information
-
Brand: KLEIN TOOLS
-
Manufacturer Part Number: VDV200-010
-
Country of Origin: Taiwan
Technical Specifications
-
Body Material: Black Oxide Steel
-
Handle Color: Yellow/Black
-
Handle Type: Rubber Grips
-
Length: 8.75 Inch
-
Manufacturer Name: Klein Tools
-
Manufacturer Part Number: VDV200-010
-
Type: Ratchet
-
UPC: 092644580215
-
ECCN: EAR99
-
Country of Origin: Taiwan
-
Overall Length: 8-3/4 in
-
Overall Length (Inch): 8.75
-
Overall Length (cm): 22.2
-
Height: 1.3500 in
-
Width: 4.2750 in
-
Depth: 8.7500 in
-
Item: Ratchet Crimper
-
Finish: black oxide
-
Strips: Yes
-
Capacity: 10 to 22 AWG
-
Material: Steel
-
Insulated: No
-
Adjustable: Not Adjustable
-
Grip Style: Deluxe Cushion
-
Application: CATV, Electrical, Home Theater, Satellite and Security System Ratcheting Crimper Frame With Optional Dies is Perfect For Fast, Reliable Connector Installations
-
For Use With: Optional Die Sets
-
Crimper Style: Ratcheting Crimper
-
Grip Material: Rubber
-
Crimping Capacity: 22 to 10 AWG
-
Connector Color Code: Black, Yellow
-
Includes Wire Cutter: No
-
Ratcheting Mechanism: Yes
-
Replacement Die Code: VDV201-040, VDV201-042, VDV205-035, VDV205-036, VDV205-039, VDV205-044, VDV211-037, VDV211-038, VDV211-041, VDV211-043, VDV212-034
-
Grip Type - Insulated: Non-Insulated
-
Includes Crimping Die: No
-
Includes Wire Stripper: Yes
-
Maximum Crimping Force: Not Rated
-
Insulated / Uninsulated: Uninsulated
-
Compatible Terminal Type: Insulated, Uninsulated
-
Compatible Wire Size Range: 22 AWG - 10 AWG
-
Replacement Die Part Number: VDV201-040 (RG58/59/62/174 Fiber Optic), VDV201-042 (RG174/179/Belden 8218 and Fiber Optic), VDV205-039 (Pin Terminal Insulated or Non-Insulated Ferrule AW12-22), VDV205-044 (Non-Insulated Terminal AWG8-18), VDV211-037 (RG6/58/59/62), VDV211-038 (RG 58/59/62), VDV211-041 (RG58/59/62/6), VDV211-043 (RG8/11/174/179/213), VDV212-034 (CATV F-Connector RG59/6)
-
Maximum Compatible Wire Size: 10 AWG
-
Minimum Compatible Wire Size: 22 AWG
-
Cuts: Yes
-
Crimps: Yes
-
Standards: California Proposition 65
-
Construction: Steel
-
Number of Tools: 1
-
Quantity: 1
