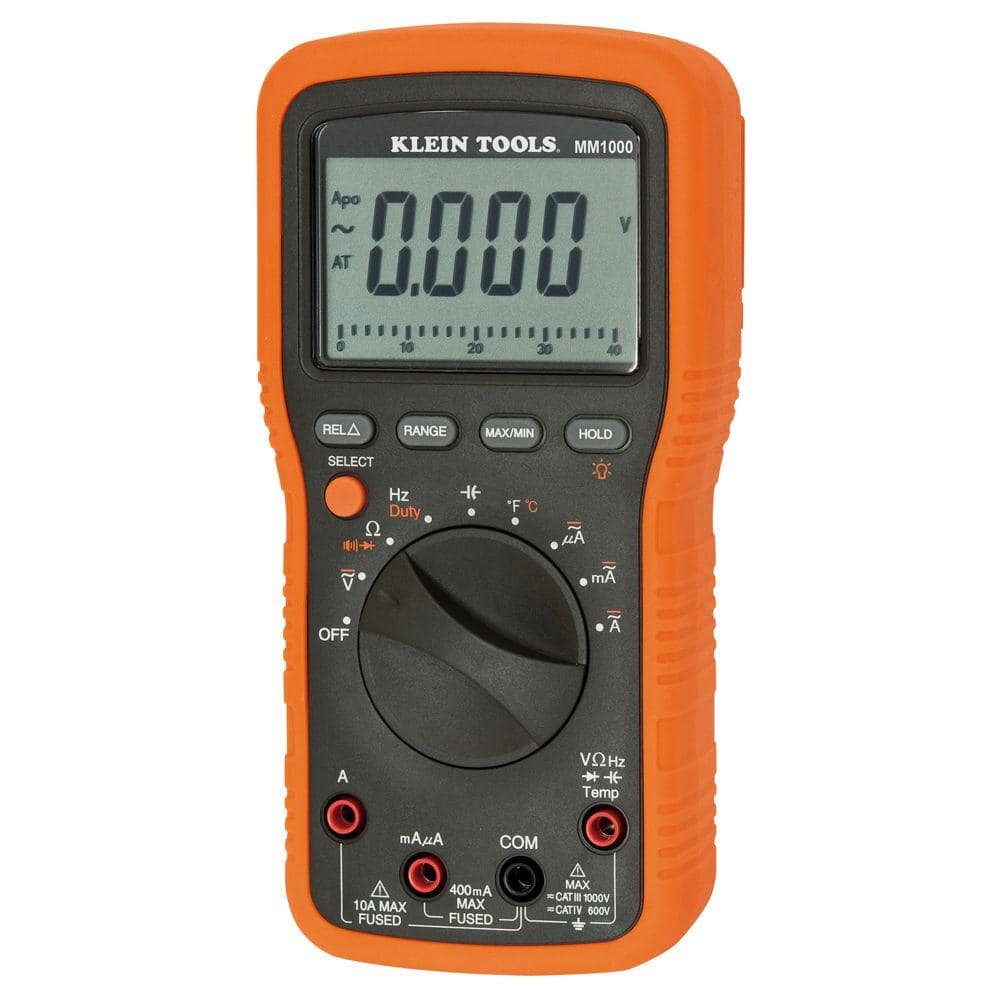

Klein Tools MM1000 Electricians Multimeter 1000V (MM1000)

Product Description

The Klein Tools MM1000 is an electricians multimeter that provides auto-ranging measurement for AC and DC voltage to 1000 V and AC/DC current to 10 A. It also measures resistance to 40 MOhm, capacitance to 4000 uF, frequency to 999.9 kHz and temperature via the included Type K thermocouple. The meter features a backlit 3999-count display with analog bar graph, Max/Min/Relative and data hold functions, fused inputs, IP20 and 2 m drop protection.

• Measurement ranges: AC/DC voltage to 1000 V; AC/DC current to 10 A; resistance to 40 MOhm; capacitance to 4000 uF; frequency to 999.9 kHz; temperature via Type K thermocouple.
• Display and functions: Backlit 3999-count display with analog bar graph, auto-ranging, Max/Min/Relative logging, data hold and multiple DC voltage resolutions.
• Durability and safety: CAT IV 600V (CAT III 1000V) safety rating, IP20 ingress protection, 2 m (6.6 ft) drop protection; fused inputs (440 mA / 1000 V and 11 A / 1000 V) and included test leads and accessories.

Product Highlights

Auto-ranging multimeter with 1000 V/10 A ranges, CAT IV 600V safety, IP20 and 2 m drop protection.

Product Information

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: MM1000
• Country of Origin: South Korea

Technical Specifications

• Brand: Klein Tools
• Model / MPN: MM1000
• Product Name: Electricians Multimeter
• Country of Origin: South Korea
• UPC: 092644691522
• GTIN: 00092644691522
• Product SKU: 1379438
• Auto-ranging: Yes
• AC/DC Voltage: Ranges to 1000 V (400 mV to 1000 V)
• AC/DC Current: Up to 10 A (continuous)
• Resistance: Up to 40 MOhm (400 ohm to 40 MOhm)
• Capacitance: 40 nF to 4000 uF
• Frequency: Up to 999.9 kHz
• Temperature: -58 F to 1832 F via included Type K thermocouple
• Temperature Accuracy: +/-3.0% + 5.4 F
• Display Resolution: 3999 counts
• Backlit Display: Yes
• Analog Bar Graph: Yes
• Input Protection / Impedance: 10 Mohm
• Fuses: 440 mA / 1000 V (fast blow) and 11 A / 1000 V (fast blow)
• Safety Rating: CAT IV 600V; CAT III 1000V
• IP Rating: IP20
• Drop Protection: 6.6 ft / 2 m
• Dimensions (H x W x D): 7 in x 3.5 in x 1.875 in (178 mm x 89 mm x 48 mm)
• Display Features: Max/Min/Relative, data hold, auto-shutoff, bar graph
• Included Accessories: 36" test leads, screw-on alligator clips, Type K thermocouple, 2 x AAA batteries, manual
• Category / Product Group: Test & Measurement / Electrical Testers
• Intended Users: Electricians and HVAC technicians
