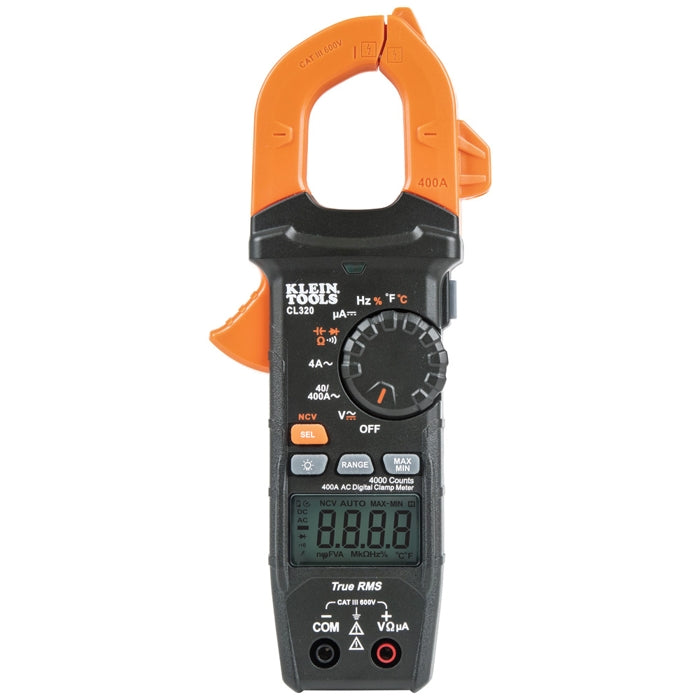

Klein Tools KLE-CL320 HVAC Digital Clamp Meter

Product Description

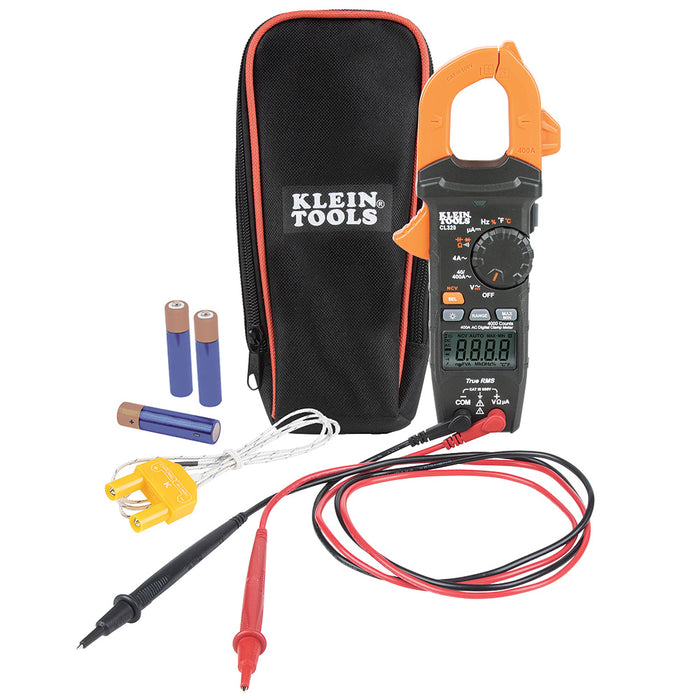

The Klein Tools KLE-CL320 is a digital clamp meter designed for HVAC professionals. It accurately measures AC current via the clamp, along with AC and DC voltage, resistance, frequency, capacitance, and duty cycle. The meter also includes a non-contact voltage tester integrated into the clamp jaw, ensuring safe measurements. The backlit display allows for easy viewing in low light. The product comes with a carrying case, test leads, thermocouple, and batteries.

• True Root Mean Squared (TRMS) measurement for accuracy
• Non-contact voltage tester integrated into the clamp jaw
• Backlit LCD for visibility in dim conditions

Product Highlights

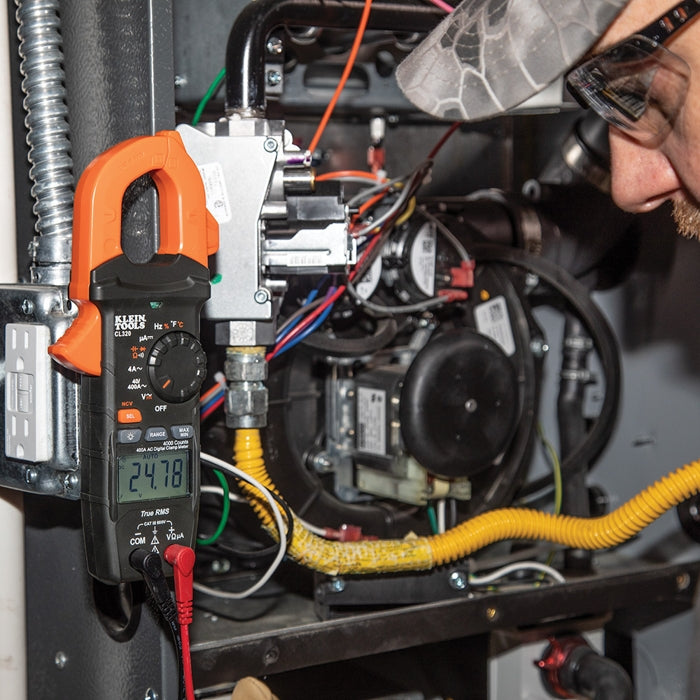

The Klein Tools KLE-CL320 is essential for HVAC applications, featuring comprehensive measurement capabilities.

Product Information

Standard Information

• Type: HVAC TRMS Clamp
• Material: ABS/Electronics

Technical Specifications

• AC Current: 400A
• AC Voltage: 600V
• DC Voltage: 600V
• Resistance: 40 MΩ
• Continuity: Yes
• Frequency: 10 Hz to 50 kHz
• Capacitance: 4000 µF
• Diode Test: Yes
• Temperature: -40°F to 1832°F with thermocouple
• Safety Rating: CAT III 600V
• Drop Protection: 6.6' (2 m)
• Display: 4000 Count Backlit LCD
• Overall Length: 8.45 inches
• Overall Height: 1.5 inches
• Overall Width: 3.5 inches
• Weight: 11 oz (314 g)
