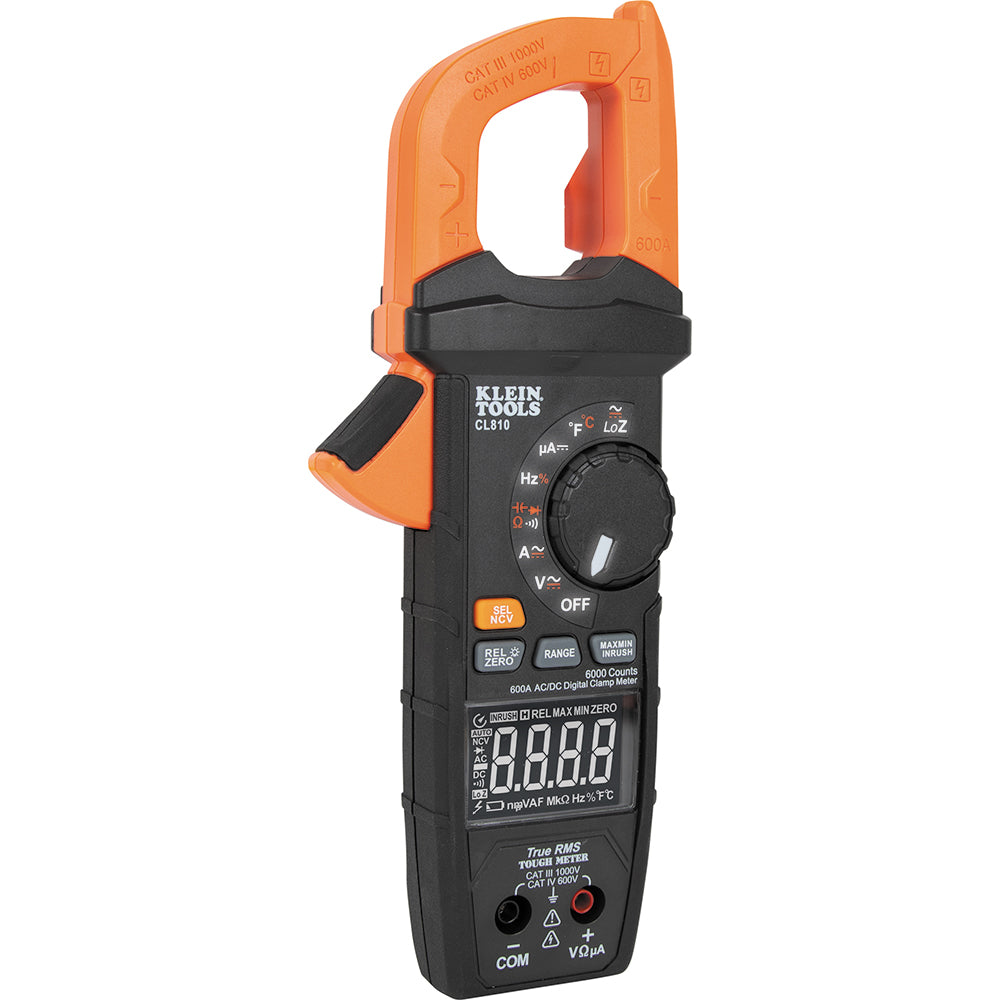

Klein Tools CL810 600A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight

Product Description

The KLEIN TOOLS CL810 Clamp Meter is an auto-ranging TRMS device designed for electrical diagnostics. It accurately measures AC/DC current up to 600A, AC/DC voltage up to 1000V, resistance up to 60MΩ, continuity, frequency, inrush, and capacitance up to 6000µF. Featuring True RMS precision and LoZ mode to eliminate ghost voltages, it also includes non-contact voltage detection and temperature measurement via thermocouple. Its transflective reverse-contrast display and lighted dial ensure clear readings in various lighting conditions.

• Clamp meter with True RMS provides accurate and reliable measurements across various applications.
• Measures AC/DC voltage, AC/DC current 10mA-600A, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush.
• Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments.

Product Highlights

Accurate TRMS measurements with LoZ mode, non-contact voltage detection, and a transflective display for clear readings.

Product Information

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: CL810
• Country of Origin: USA

Technical Specifications

• Type: Pro Clamp Meter
• Application: Variety of Electrical Diagnostic and Troubleshooting Applications
• Special Features: Transflective Reverse-Contract Display; Lighted Dial; Built-in Worklight; Built-in Lead Holder
• Material: ABS/Electronics
• Batteries: 3 x AAA
• Auto-Power Off: Yes
• Jaw Size (Inch): 1.4
• Drop Protection: 6.6' (2 m)
• Display: Transflective Reverse-Contrast with 6000 Count LCD
• Functions: AC/DC/ Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability
• Auto Ranging: Yes
• TRMS: Yes
• Max AC Voltage: 1000V
• Max DC Voltage: 1000V
• Frequency Range: 10Hz - 60 kHz
• Max Current: 600A
• Max Capacitance: 6000µF
• Max Resistance: 60MΩ
• DC Polarity Indicator: Yes
• DC Micro-Amp Measurement: Yes
• Temperature Range: -40° to 1832° F (-40° to 1000° C)
• IP Rating: IP40
• Certifications: CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA, RoHS, cETLus
• Included Accessories: Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
• Power Source: Battery Powered
• Measurement Type: Multimeter
