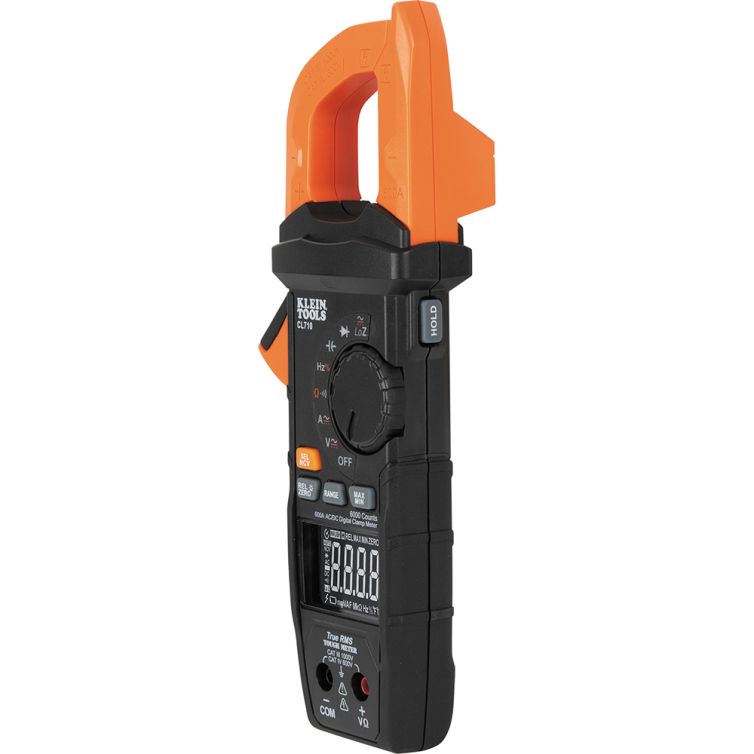

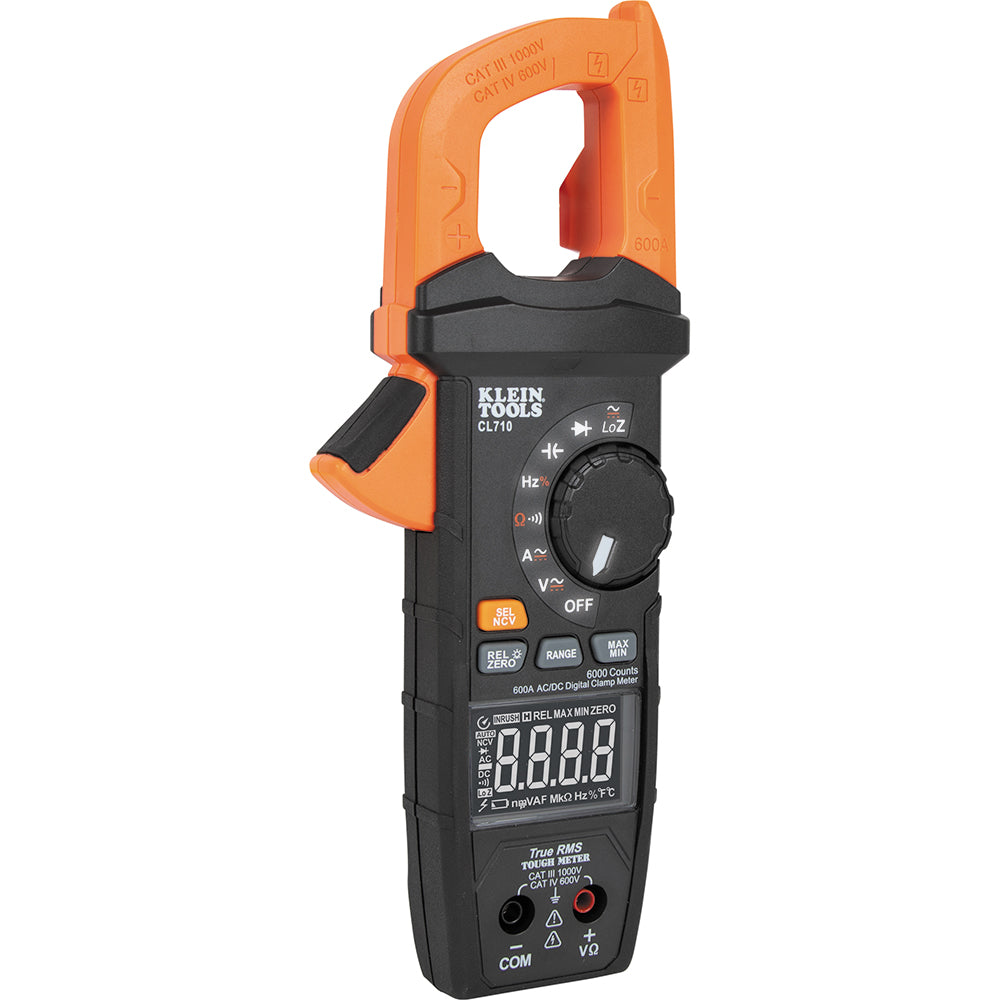

Klein Tools CL710 600A AC/DC Auto-Ranging TRMS Clamp Meter

Product Description

The Klein Tools CL710 clamp meter with True RMS provides accurate and reliable measurements across various applications. It measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle. The transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments.

• Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements.

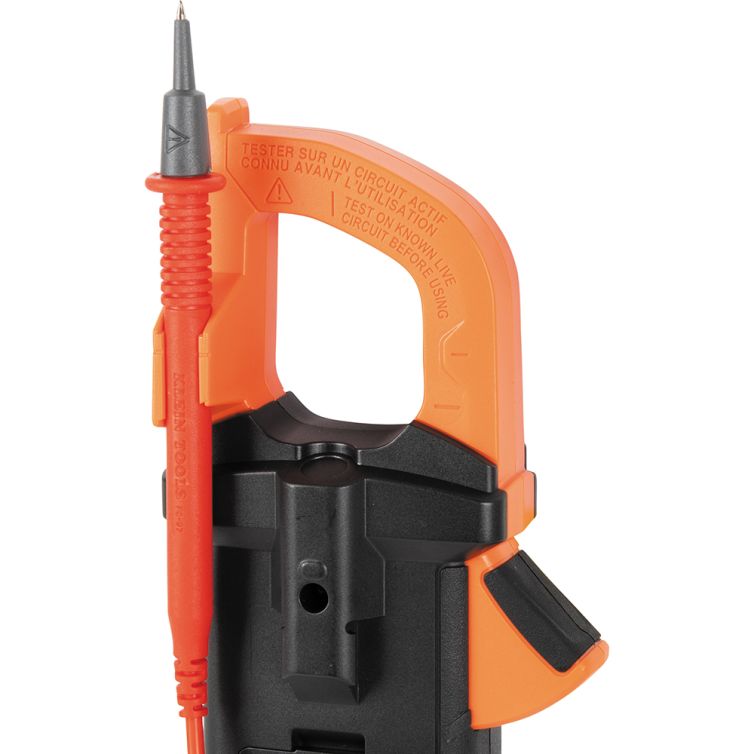

• Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators.
• Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m).

Product Highlights

This clamp meter is designed for a variety of electrical diagnostic and troubleshooting applications. It includes right-angle input test leads, a storage pouch, and batteries.

Product Information

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: CL710

Technical Specifications

• Type: Pro Clamp Meter
• Application: Variety of Electrical Diagnostic and Troubleshooting Applications
• Special Features: Transflective Reverse-Contract Display; Lighted Dial; Built-in Lead Holder
• Material: ABS/Electronics
• Batteries: 3 x AAA
• Auto-Power Off: Yes
• Jaw Size: 1.4'' (3.6 cm)
• Drop Protection: 6.6' (2 m)
• Display: Transflective Reverse-Contrast with 6000 Count LCD
• Display Size: 1.51'' x 1.02'' (3.8 x 2.6 cm)
• Functions: AC/DC Voltage, AC/DC Current, Resistance, Audible Continuity, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Min/Max Value, Rel/Zero, Data Hold Capability
• Auto Ranging: Yes
• TRMS: Yes
• Voltage: 1000V AC; 1000V DC
• Frequency: 1Hz - 500 KHz
• Current: 600A
• Capacitance: 6000µF
• Ohms (Resistance): 60MΩ
• AC Voltage: 1000V
• DC Voltage: 1000V
• DC Polarity Indicator: Yes
• Temperature Range: N/A
• Ingress Protection: IP40
• Accuracy: See Instructions
• Standard: CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
• Included: Clamp Meter; Right-Angle Input Test Leads; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
• Overall Length: 9.06'' (23.0 cm)
• Overall Height: 1.65'' (4.2 cm)
• Overall Width: 3.47'' (8.8 cm)
• Manufacturer: Klein Tools
• Manufacturer SKU: CL710
• Battery Type: Alkaline
