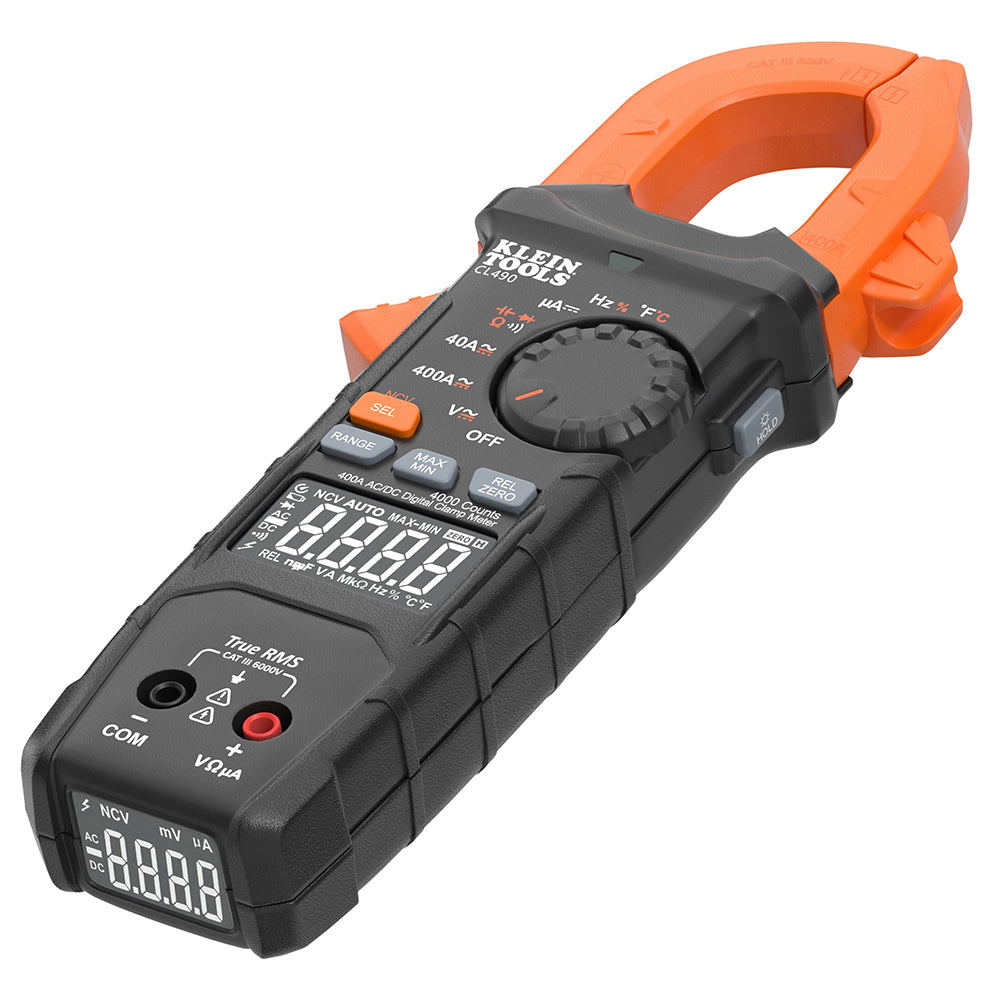

Klein Tools CL490 Dual-Display Auto-Ranging Digital Clamp Meter 400A AC/DC 1.6 Inch Jaw

Product Description

The Klein Tools CL490 is an auto-ranging dual-display digital clamp meter designed for precise electrical measurements. It accurately measures AC/DC current up to 400A, AC/DC voltage up to 600V, resistance, continuity, frequency, and capacitance with True RMS accuracy. Featuring a 1.6 inch jaw, it also performs diode testing and temperature measurements via thermocouple, with NCV detection for enhanced safety. The backlit, hi-vis display ensures clear readings in various lighting conditions.

• Dual Display digital clamp meter allows users to see readings in tight space areas.
• AC/DC clamp meter with True RMS provides accurate and reliable measurements across various applications.
• Measures AC/DC current and NCVT via clamp; AC/DC voltage, resistance, continuity, frequency/duty cycle, DC microamps, diode test and capacitance via test leads; temperature via thermocouple.

Product Highlights

Withstands drops from 6.6 feet (2 m) and includes test leads, thermocouple, storage pouch, and 2 x AA batteries for immediate use.

Product Information

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: CL490

Technical Specifications

• Type: Dual Screen AC/DC Current TRMS Clamp
• Application: Measures AC/DC Current and NCVT via the Clamp and AC/DC voltage, DC Microamp Current, Resistance, Continuity, Frequency, Duty-Cycle, Capacitance and Tests Diodes via the Test Leads, and Temperature with Thermocouple
• Special Features: Bottom Display; Automatically Ranging; TRMS Measurement; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
• Material: ABS/Electronics
• Batteries: 2 x AA
• Auto-Power Off: Yes
• Jaw Size: 1.6 Inch
• Drop Protection: 6.6 ft (2 m)
• Display: 4000 Count Backlit, Hi-Viz
• Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
• Auto Ranging: Yes
• TRMS: Yes
• Voltage: 600V AC/DC
• Frequency: 10Hz - 60kHz
• Current: 400A AC/DC
• Capacitance: 4000µF
• Ohms (Resistance): 40MΩ
• AC Voltage: 600V
• DC Voltage: 600V
• DC Polarity Indicator: Yes
• DC Micro-Amp: 200µA
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Accuracy: ± (% of Reading + # of Least Significant Digits) Refer to Manual for Accuracy Depending on Active Function Selection Values Stated at 65° to 83°F (18° to 28°C)
• Standard: CATIII 600V, Class 2, Double Insulation Safety Rating IEC EN 61010-1, 61010-2-032. IEC EN 61326-1, 61326-2-2.Conforms to UL STD.61010-1, 61010-2-032;Certified to CSA STD.C22.2 NO. 61010-1, 61010-2-032
• Included: Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; 2 x AA Batteries
• Overall Length: 3.54 Inch
• Overall Height: 8.46 Inch
• Overall Width: 1.5 Inch
• Main Display Size: 1.54 in. x 0.86 in.
• Secondary Display Size: 1.04 in. x 0.72 in.
