Product Description

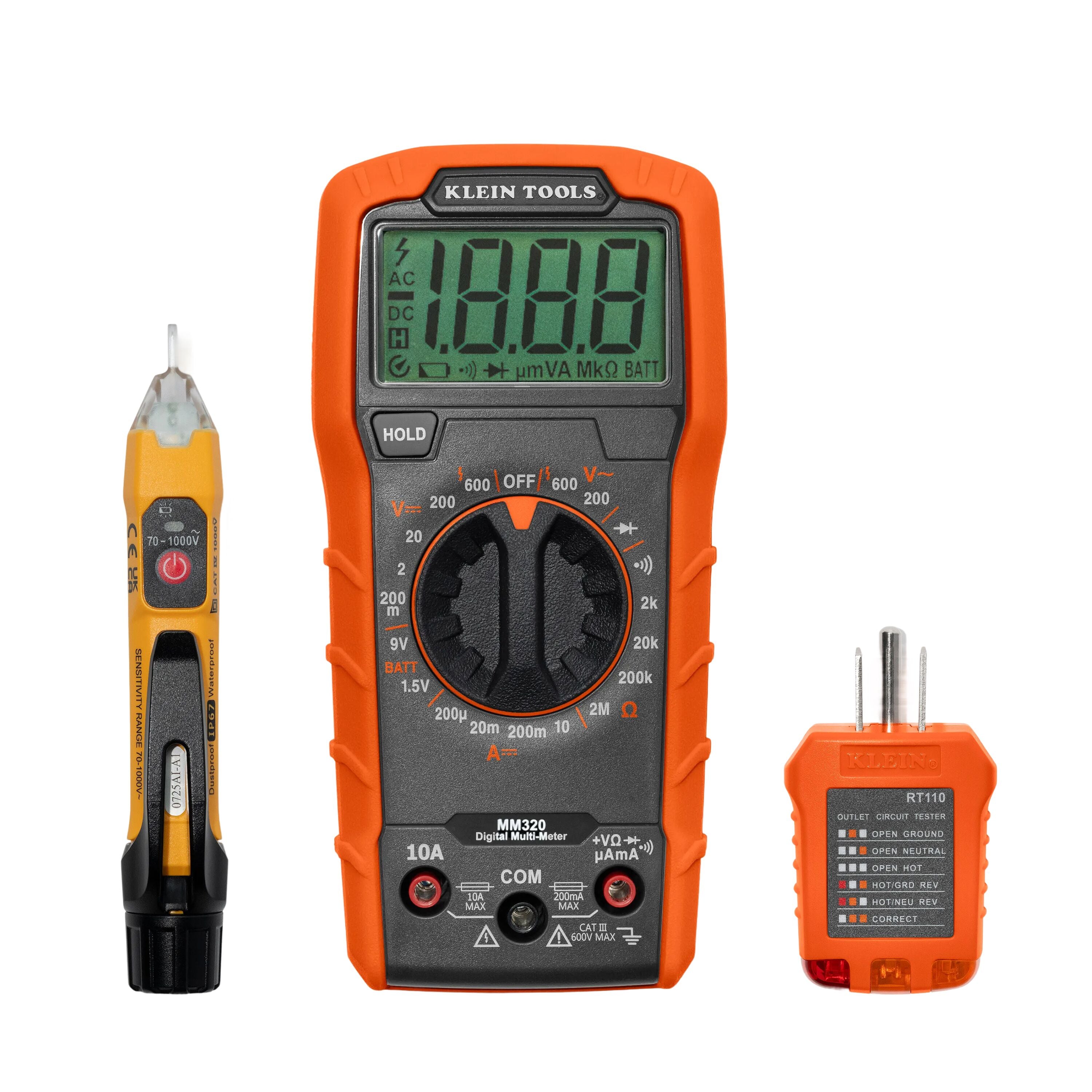

The Klein Tools 69149P Multimeter Test Kit contains a digital multimeter, non-contact voltage tester, and receptacle tester. The multimeter measures DC current, AC/DC voltage, and resistance. The non-contact voltage tester automatically detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires. The receptacle tester detects common wiring problems.

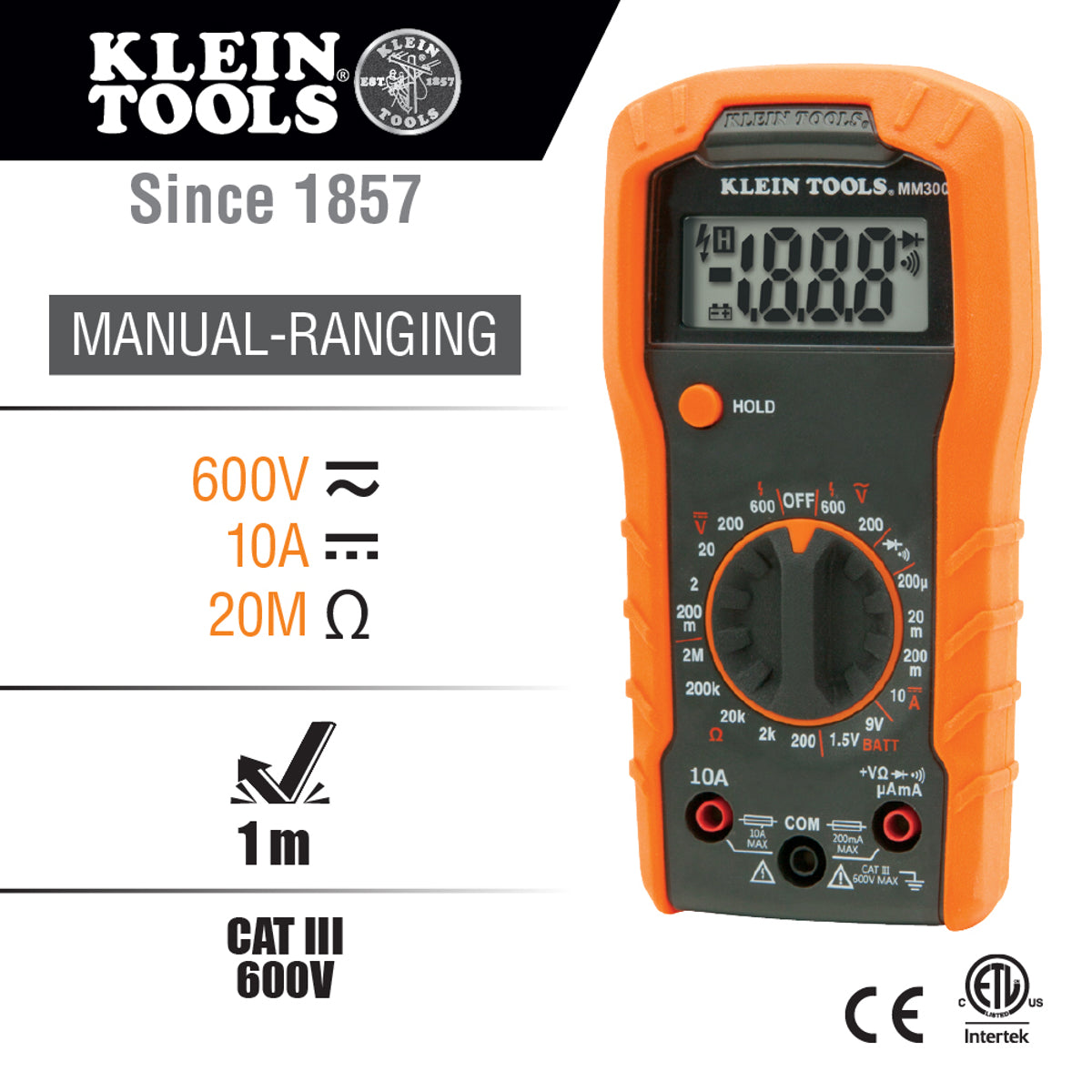

- Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance

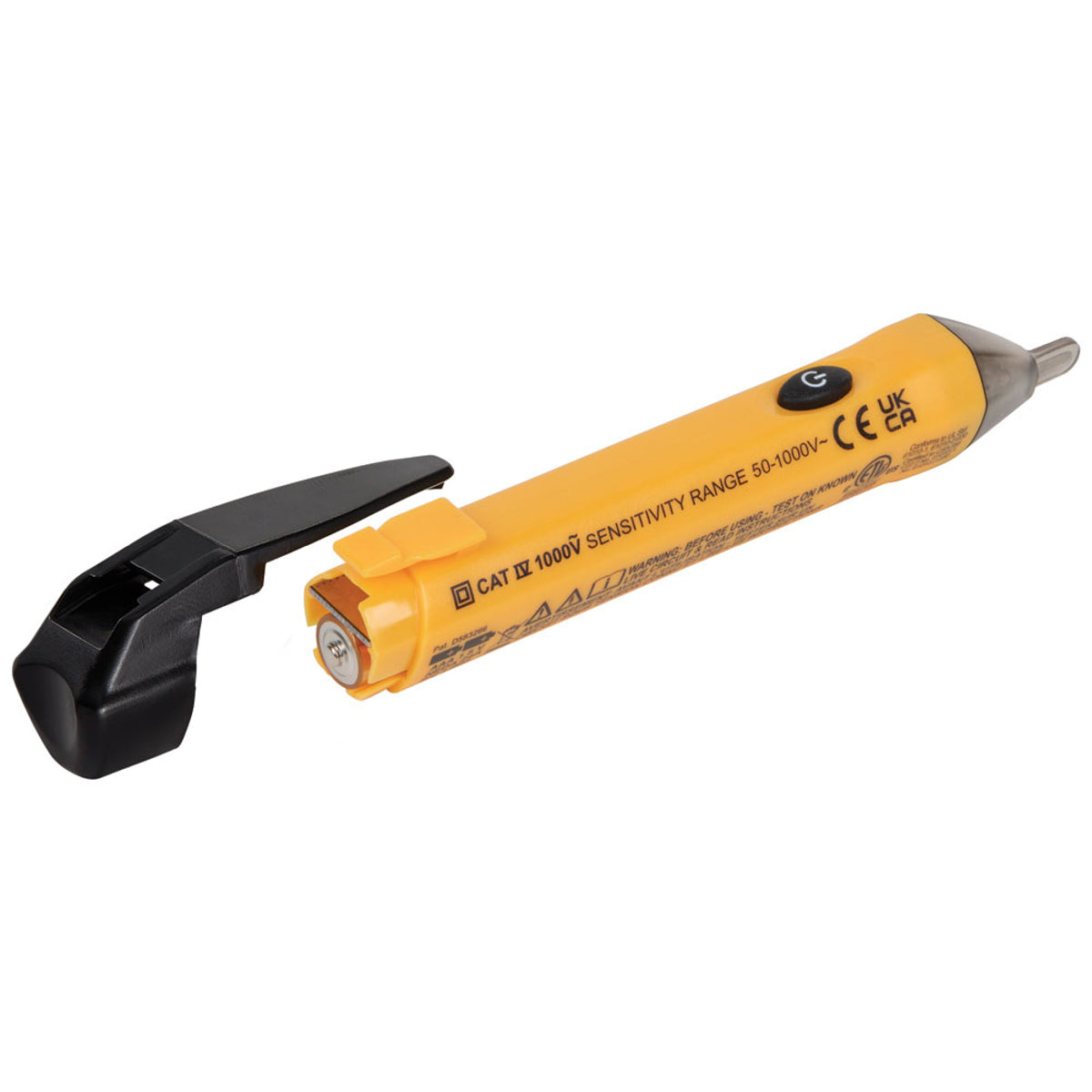

- Non-Contact Voltage Tester has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected
- Receptacle tester detects wiring configurations and indicates correct wiring, and identifies common wiring faults
Product Highlights
This kit is ideal for comprehensive electrical testing, ensuring safety and accurate diagnostics in various applications.
Product Information
Standard Information
-
Brand: KLEIN TOOLS
-
Manufacturer Part Number: 69149P
-
Country of Origin: China
Technical Specifications
-
Catalog Number: 69149P
-
Manufacturer: Klein Tools
-
Brand: Klein Tools
-
Country of Origin: China
-
Made in USA: No
-
Application: Testing and Measuring Voltage
-
Material: Polymer Body and Electronic Components
-
Special Features: MM300: Low Battery Indicator; NCVT-1P: Pocket Clip
-
Standard: MM300: CAT III 600V; NCVT1P: CAT IV 1000V
-
UPC: 092644693724
-
GTIN: 00092644693724
-
Item Type: Electrical Test Kit
-
Suitable For Use With: Testing and Measuring Voltage
-
Type: Test Kit
-
Type [Specifications]: Electrical Test Kit
-

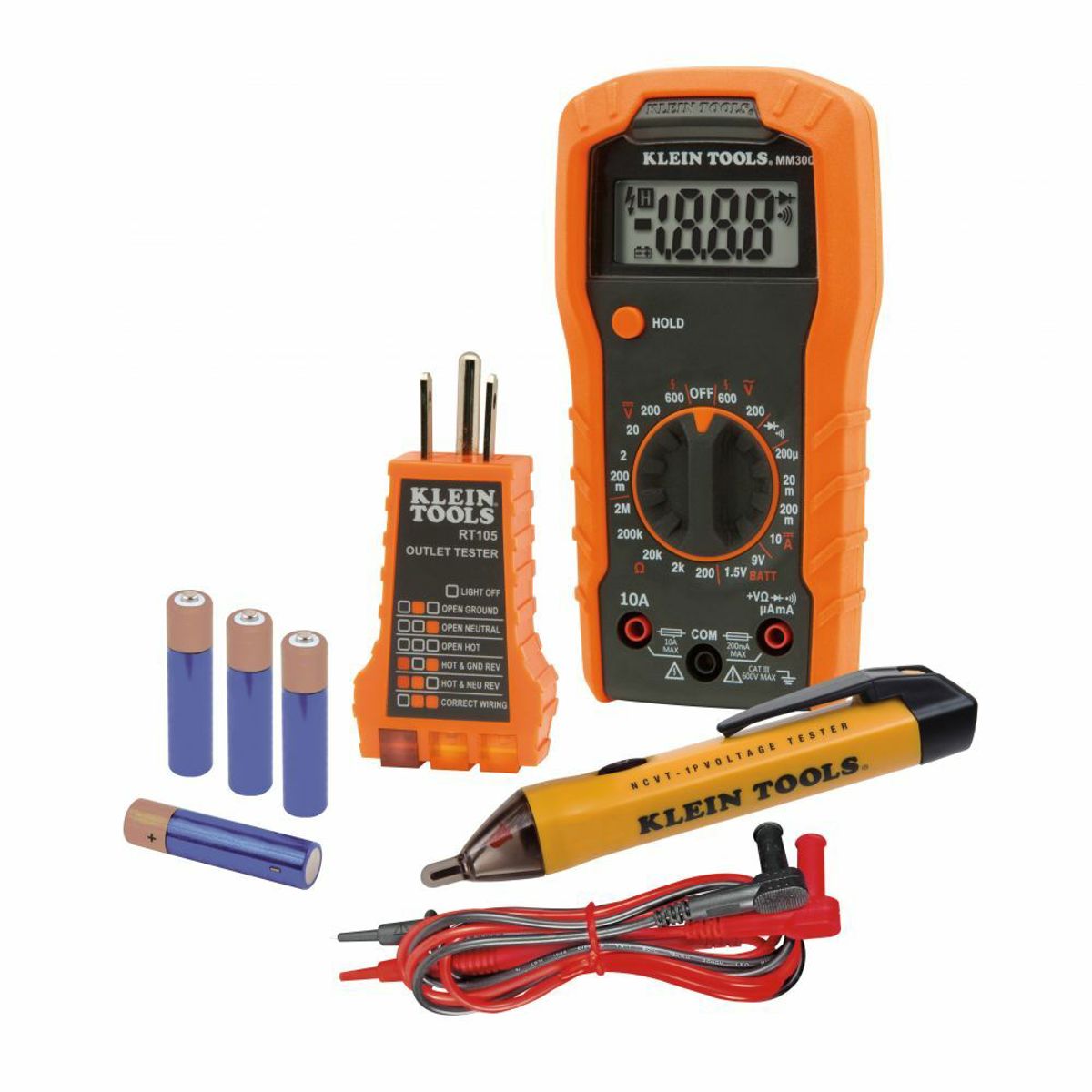

Includes [Specifications]: MM300 Manual-Ranging Digital Multimeter with Right-angle Test Leads; NCVT1P Non-Contact Voltage Tester; RT105 Receptacle Tester with Test Leads; Instructions; and All Required Batteries
-
Standards [Specifications]: MM300: CAT III 600V; NCVT1P: CAT IV 1000V
-
Length (In.) [Specifications]: 6" (15.2 cm)
-
Multimeter Style [Specifications]: Multimeter Kit
-
Country of Origin (subject to change) [Specifications]: China
-
Overall Length (Inch): 6
-
Overall Length (cm): 15.2
-
Overall Height (Inch): 1.78
-
Overall Height (cm): 4.5
-
Overall Width (Inch): 3.16
-
Overall Width (cm): 8
-
Batteries: MM320: 2 x AAA; NCVTXT: 2 x AAA
-
Included: MM320 Digital Multimeter with Right-angle Test Leads; NCVT1XT Non-Contact Voltage Tester; RT110 Receptacle Tester with Test Leads; Instructions; and All Required Batteries
-
Weight (oz): 8.2
-
Weight (g): 232
-
Multimeter type: Digital
-
Volts: 600 V
-
Display: LCD
-
Power type: Battery
-
Model: 69149P
-
Item Length: 6 in
-
Measuring Technology: Electric
-
MPN: 69149P
-
Features: Manual-Ranging
