Klein Tools 69149P Electrical Test Kit Multimeter

Product Description

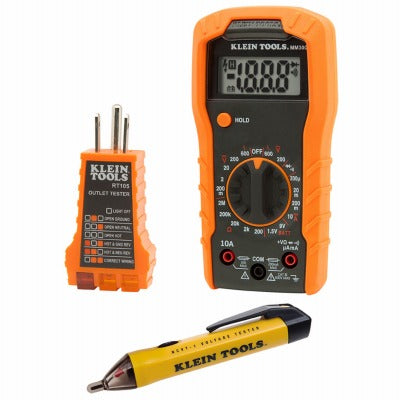

The KLEIN TOOLS 69149P is a three-piece electrical test kit designed for professional electricians and service technicians who need reliable voltage detection, circuit measurement, and outlet verification in a single package. The kit includes the MM300 multimeter, the NCVT-1 non-contact voltage tester, and an outlet tester. The MM300 measures AC and DC voltage, DC current, and resistance, and carries a CAT III 600V safety rating with Class 2 double insulation. The NCVT-1 features a digitally-controlled power button and auto power-off to extend battery life.

This kit is suited for residential and light commercial electrical work, including panel diagnostics, outlet verification, and general circuit testing. The NCVT-1 provides a contactless approach to voltage detection, which is useful during initial circuit assessment before direct meter contact. The MM300 handles follow-up measurements where precise readings of voltage, current, or resistance are required. Together, the three instruments cover the most common field testing tasks encountered by licensed electricians and maintenance technicians.

Key Features

• MM300 multimeter measures AC and DC voltage, DC current, and resistance
• CAT III 600V safety rating with Class 2 double insulation on the MM300
• NCVT-1 non-contact voltage tester with green LED standby indicator and red LED plus audible alert on voltage detection
• Digitally-controlled ON/OFF button and auto power-off on NCVT-1 to conserve battery life
• Outlet tester included for quick receptacle verification
• Three-instrument kit packaged together for everyday electrical testing tasks

Compatibility

Designed as a general-purpose electrical test kit for use in residential and light commercial applications where AC and DC voltage measurement, non-contact voltage detection, and outlet circuit verification are required.

Installation Notes

These instruments are intended for use by licensed electricians and qualified electrical technicians. Always verify the tester itself is functional on a known live source before relying on a no-voltage reading. Follow NEC guidelines and applicable local electrical codes when performing circuit testing or diagnostics. Keep all test leads and instrument ratings within the CAT III 600V limits specified for the MM300.

Technical Specifications

• MM300 Safety Rating: CAT III 600V, Class 2 Double Insulation
• MM300 Measurement Functions: AC Voltage, DC Voltage, DC Current, Resistance
• NCVT-1 Voltage Detection Indicator: Green LED (standby), Red LED plus audible tone (voltage detected)
• NCVT-1 Power Management: Digitally-controlled ON/OFF, Auto Power-Off
• Kit Contents: MM300 Multimeter, NCVT-1 Non-Contact Voltage Tester, Outlet Tester
• Package Weight: 7.25 pounds
• Unit of Measure: EA

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: 69149P
