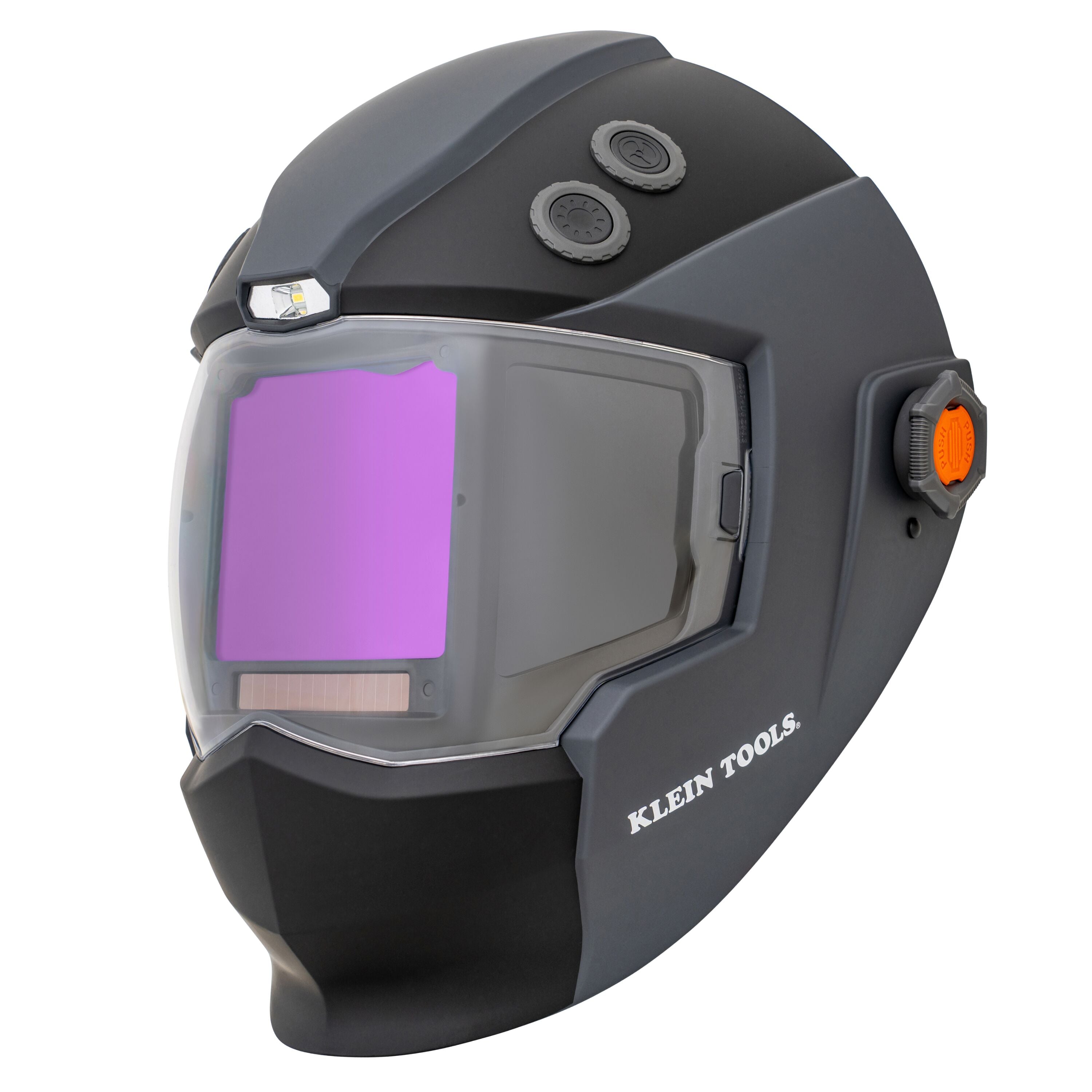

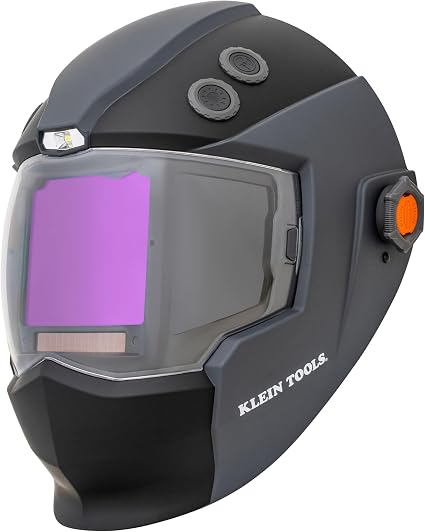

Klein Tools 60141 Phoenix Series Panoramic Welding Helmet Battery 3.6 V (15.3 sq in ADF) 60141

Product Description

The Klein Tools 60141 Phoenix Series Panoramic Welding Helmet is a battery-powered welding helmet with a panoramic three-window design and a 15.3-square-inch True-Color auto-darkening filter. It includes an integrated adjustable cooling fan with high and low speeds to maintain airflow, an LED headlamp with auto work light mode, and large glove-friendly external controls. Shades are adjustable from 3 to 14 in 0.5 increments and the modular battery system uses a CR2450 and 18650 Li-Ion.

• 15.3-square-inch True-Color ADF center window; two fixed shade 9 side windows; shade range 3–14 in 0.5 increments
• Integrated adjustable cooling fan with two speeds (high/low); modular power: 1 x CR2450 coin cell and 1 x 18650 Li-Ion (3.6 V, 12.06 Wh), ~300 cycles
• LED headlamp with Auto Work Light Mode, large glove-friendly external buttons, multi-point padded suspension; mounts on headgear or hard hat adapter

Product Highlights

15.3 sq in True-Color ADF; shades 3–14 (0.5 increments); integrated 2-speed cooling fan; LED headlamp; modular CR2450/18650 battery system; ANSI Z87.1-10 and CSA Z94.3-20 certified

Product Information

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: 60141
• Country of Origin: China

Technical Specifications

• Brand: Klein Tools
• Manufacturer Part Number: 60141
• Model Name: Phoenix Series Panoramic Welding Helmet
• Product Type: Welding Helmet
• Application: Welding
• ADF Size: 15.3 square inches
• Shade Range: 3-14
• Shade Increment: 0.5
• Side Window Shade: Fixed shade 9 side windows
• Fan Speeds: 2 (High/Low)
• Power Type: Battery
• Voltage: 3.6 V
• Battery Energy: 12.06 Wh
• Batteries: 1 x CR2450 coin cell, 1 x 18650 Li-Ion
• Battery Cycles: ~300 cycles (charge cycles)
• LED Light: LED headlamp with Auto Work Light Mode
• Controls: Large glove-friendly external buttons (fan, grind, light)
• Included Components: Helmet, (2) Front Outer Shield, (2) Front Inner Shield, Headgear, Sweatband, Fan, Side Windows, Auto-Darkening Filter, Modular Battery
• Material: Nylon
• Mounting Type: Headgear or Hard Hat Adapter
• Suspension: Multi-point padded headgear
• Suspension Adjustment: Racket Knob
• Hat Style: Cap-Style Hard Hats and Safety Helmets
• Hat Size: 6.5-8
• Dimensions: 13.92 x 10.91 x 8.84 in (L x W x H)
• Standards/Certifications: ANSI Z87.1-10; CSA Z94.3-20
• UPC: 092644601415
• Country of Origin: China
