Klein Tools 1611-30 Cable Pulling Grip 4500 Lb Forged Steel

Product Description

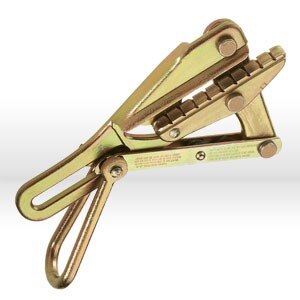

The KLEIN TOOLS 1611-30 is a forged steel cable pulling grip, also known as a Chicago Grip, designed for pulling, tensioning, and securing weatherproof coated cable. It accommodates cable outer diameters from 0.31 inches to 0.53 inches and delivers a rated load capacity of 4500 pounds. The jaw contour is round type with a locking loop handle for secure attachment to pulling equipment. This grip is built for demanding environments and is intended for installation and maintenance work performed by licensed electricians and power utility or telecommunications technicians.

The 1611-30 is suited for industrial, power utility, and telecommunications cable pulling and temporary tensioning applications. Its weatherproof-coated cable compatibility makes it appropriate for outdoor and exposed installations where environmental conditions are a concern. The locking loop handle allows connection to come-alongs, blocks, or other rigging hardware commonly used in conductor stringing and cable installation work.

Key Features

• Forged steel construction for high-load pulling applications
• Accepts cable outer diameters from 0.31 inches to 0.53 inches
• 4500 lb rated load capacity
• Round jaw contour type seats securely on weatherproof coated cable
• Locking loop handle for positive connection to pulling hardware
• Jaw length of 4.75 inches provides extended grip surface

Compatibility

Designed for use with weatherproof coated cable in the 0.31 inch to 0.53 inch outer diameter range, suitable for industrial, power utility, and telecommunications cable pulling and temporary tensioning applications.

Installation Notes

Installation is typically performed by licensed electricians or power utility and telecommunications line technicians. De-energize and isolate all conductors before attaching or removing pulling grips. Verify that the cable outer diameter falls within the rated range of 0.31 inches to 0.53 inches before applying load. Do not exceed the 4500 lb rated load capacity.

Technical Specifications

• Cable Outer Diameter Range: 0.31 inches to 0.53 inches
• Rated Load Capacity: 4500 lb
• Jaw Length: 4.75 inches
• Jaw Contour Type: Round
• Handle Type: Locking Loop
• Material: Forged Steel
• Weight: 3.7 pounds
• Application: Industrial, Power Utility, Telecommunications Cable Pulling, Temporary Tensioning

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: 1611-30
