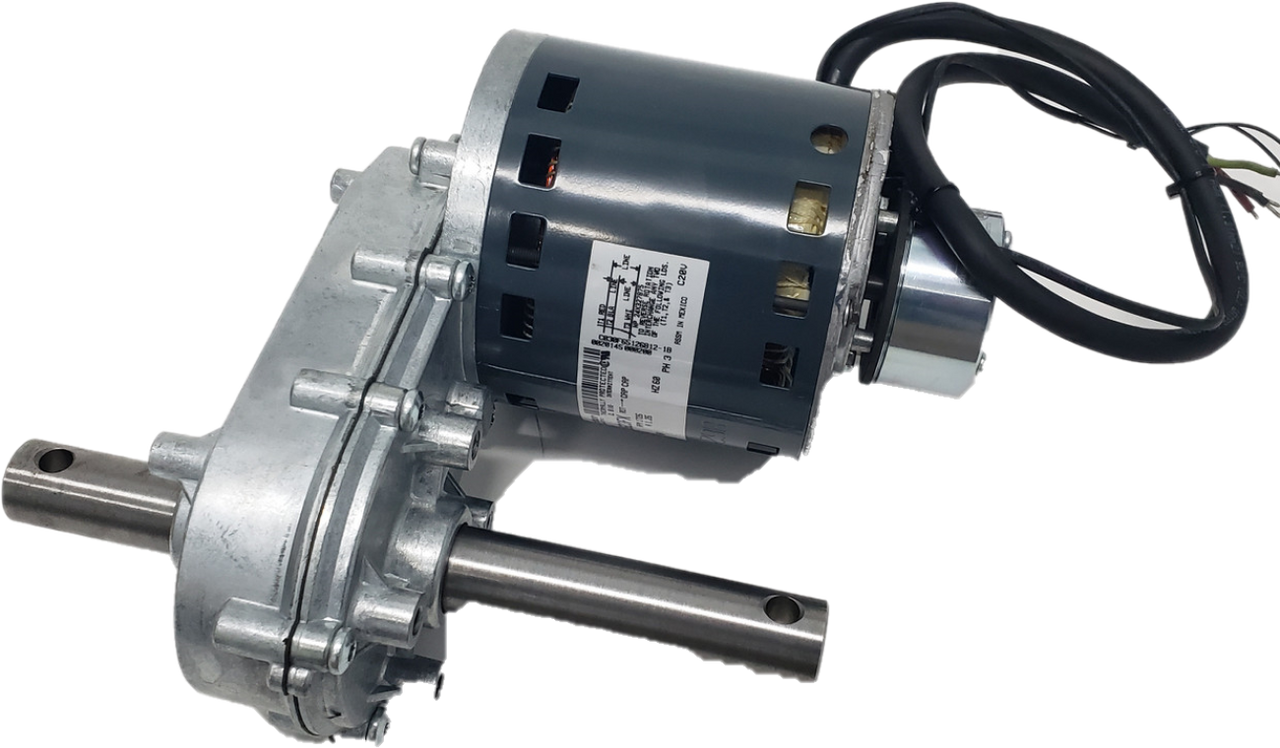

KLAUBER GEAR K01531A600 Power Gear Bleacher Slide Out Motor 208/230V K01151-S600 652589-01 Interkal

Product Description

The KLAUBER GEAR K01531A600 Power Gear Bleacher Slide Out Motor is suitable for bleacher and slide-out systems. Operating at 208/230V, this motor provides reversible rotation and includes dual shafts for versatile applications. Constructed for intermittent duty, it features an OPEN enclosure type.

• Operates at 208/230V, 3 Phase
• Reversible rotation allows flexible operation
• Dual shafts with dimensions: 1 inch diameter x 2.13 inch length (non motor side) and 1/4 inch crosshole x 4.25 inch length (motor side)

Product Highlights

This motor is designed for reliable operation in bleacher slide-out systems.

Product Information

Standard Information

• Brand: KLAUBER GEAR
• MPN: K01531A600

Technical Specifications

• Speed: 12 RPM
• Amps: 1.85 Amps
• Voltage: 208/230V
• Phase: 3 Phase
• Torque: 2000 in-lbs
• Gear Ratio: 130-1
• Power Lead: approx. 24 inches
• Rotation: Reversible
• Duty: Intermittent
• Enclosure: OPEN
• Mount: Four bolt face mount, 5/16-18 thread, 1/2 inch depth
• Dual Shafts: 1 inch diameter x 2.13 inch length (non motor side) with 1/4 inch crosshole x 4.25 inch length (motor side)
