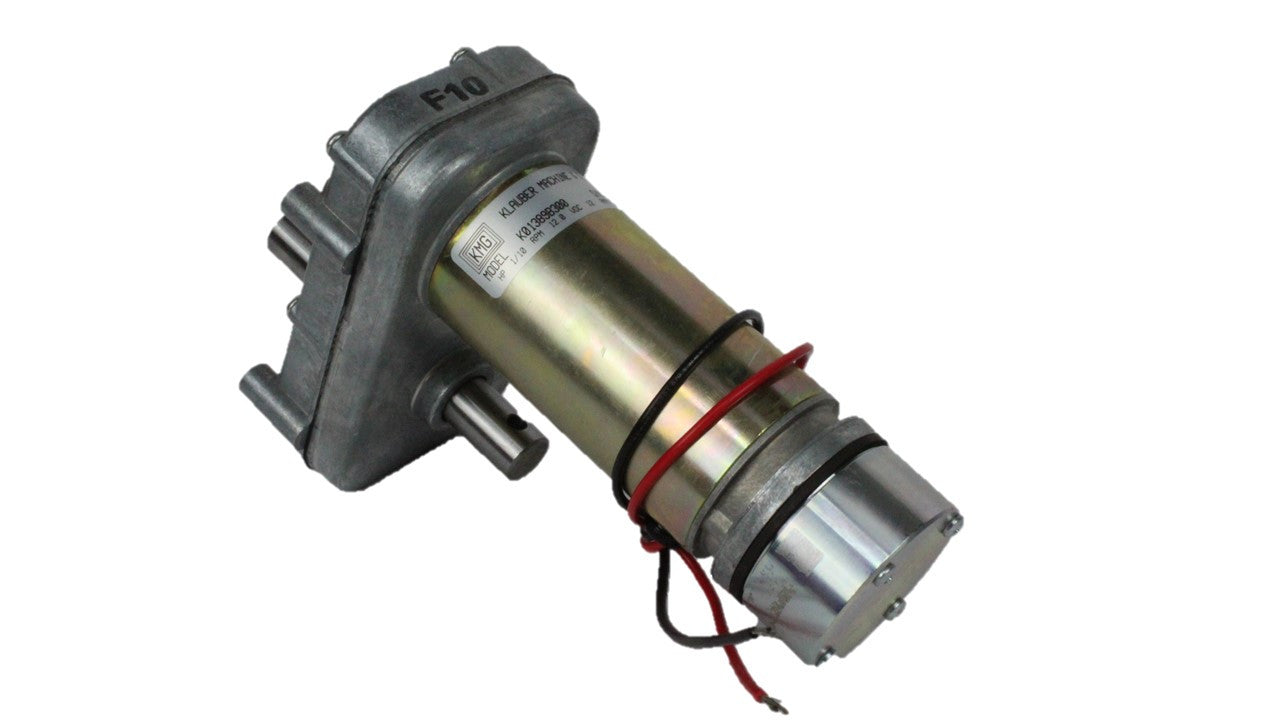

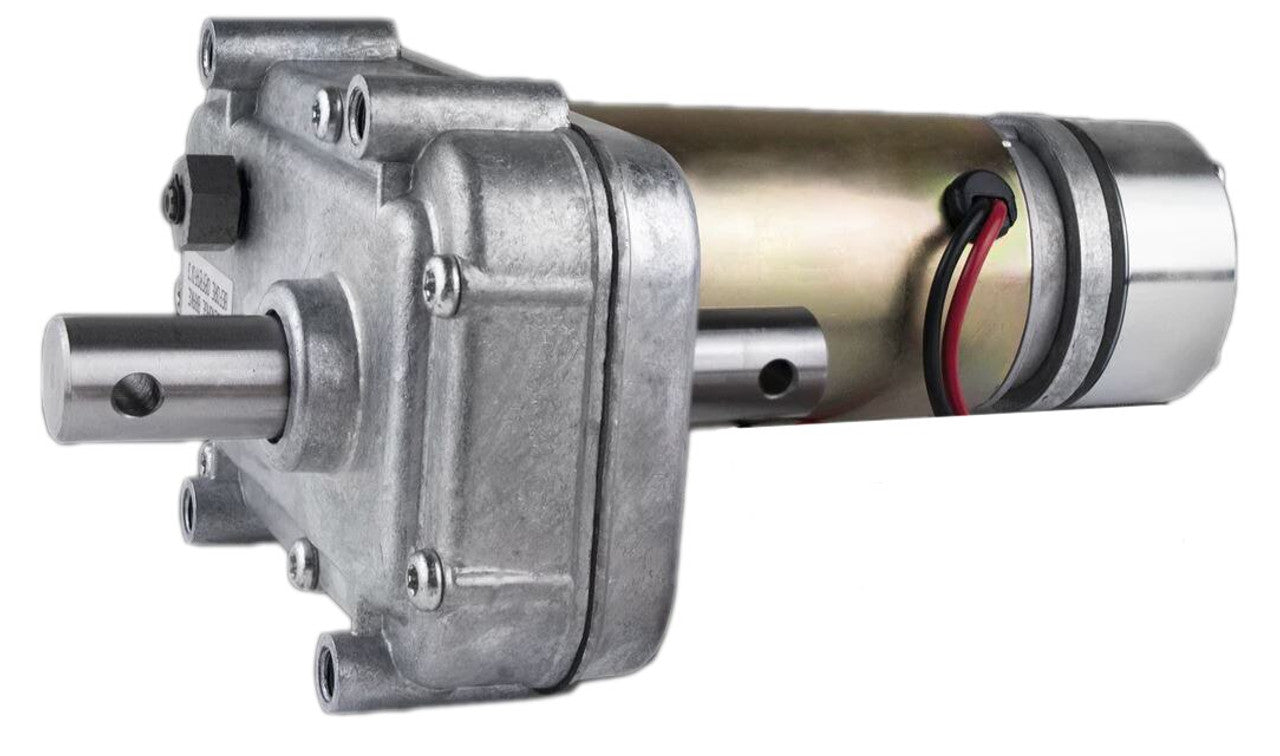

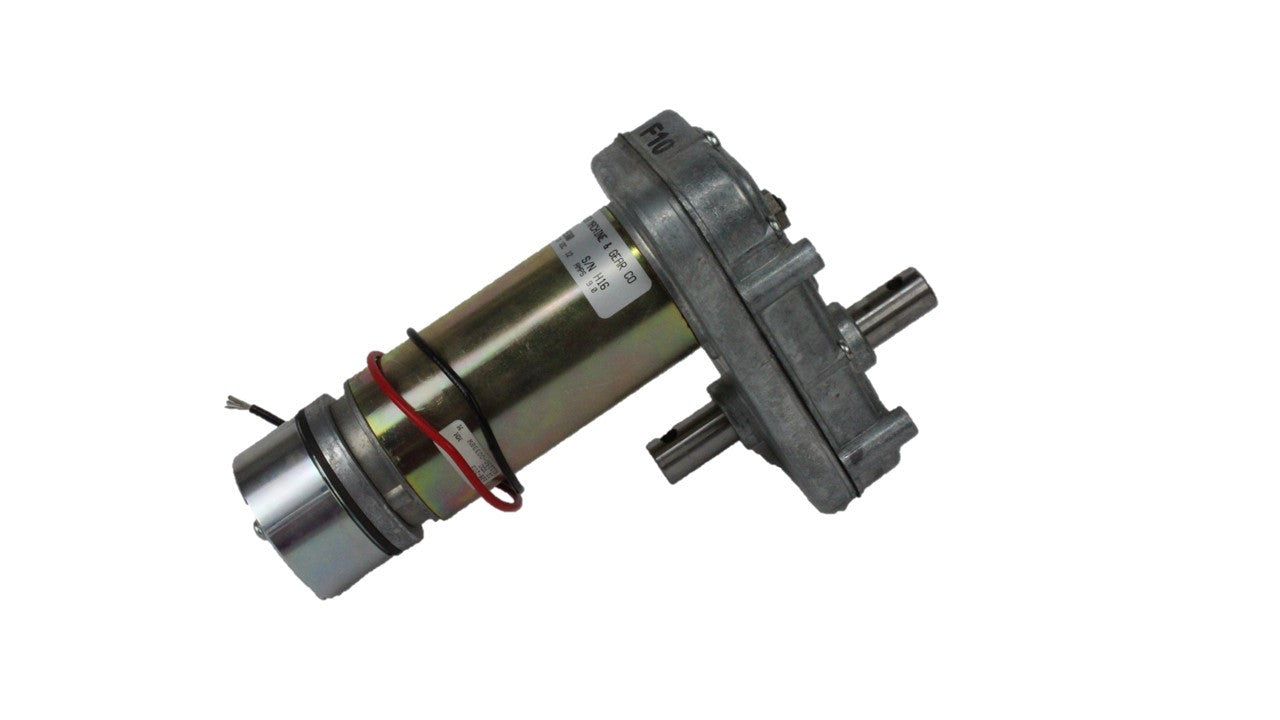

KLAUBER GEAR K01389A300 Gear Motor 12 VDC 1/10 HP Replacement

Product Description

The KLAUBER GEAR K01389A300 is a DC gear motor that serves as an original equipment manufacturer (OEM) replacement option. This motor operates efficiently at twelve volts direct current and produces one-tenth horsepower. It features a gear ratio of 163:1 and generates a run torque of four hundred inch-pounds.

• Power: 1/10 horsepower
• Voltage: 12 VDC
• Gear Ratio: 163:1

Product Highlights

This gear motor is designed for reliable performance in various applications. Its reversible rotation and robust construction make it suitable for demanding tasks.

Product Information

Standard Information

• MPN: K01389A300
• Brand: KLAUBER GEAR

Technical Specifications

• Horsepower: 1/10
• Voltage: 12 VDC
• Amperage: 11.5
• Gear Ratio: 163:1
• Run Torque: 400 IN/lbs
• Bolt Pattern: 3 3/8 x 3 3/8 square
• Shaft Length (exposed): 1.27 inches
• Shaft Diameter: 0.75 inches
• Shaft Key Hole: 0.25 inches
• Mount Holes: 5/16 x 18 thread
• Electrical Type: PMDC
• Enclosure: TEAO
• Rotation: Reversible
