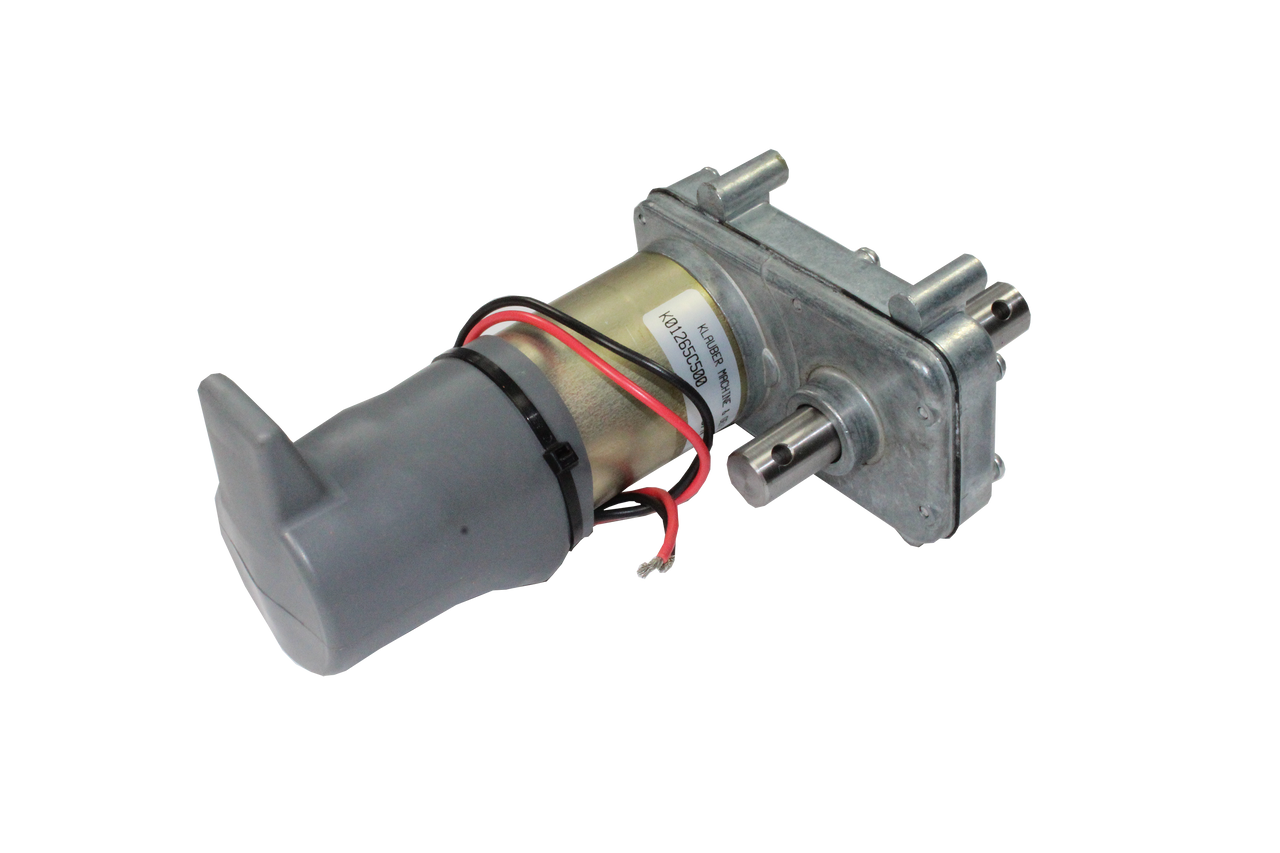

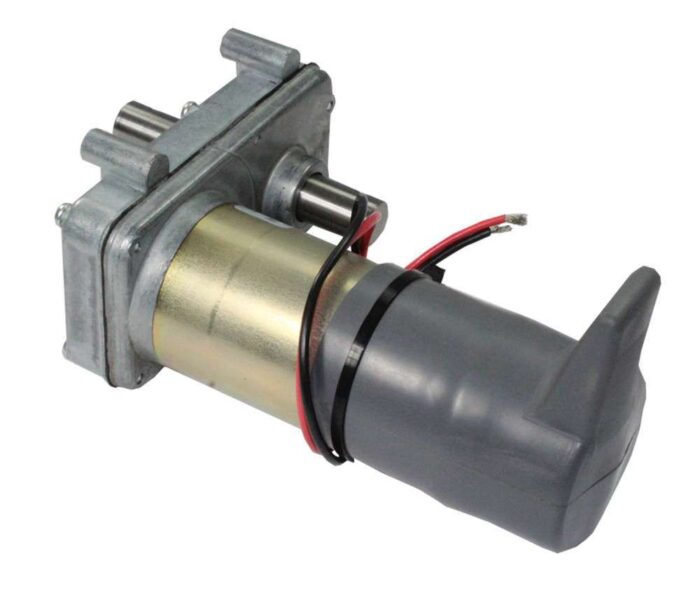

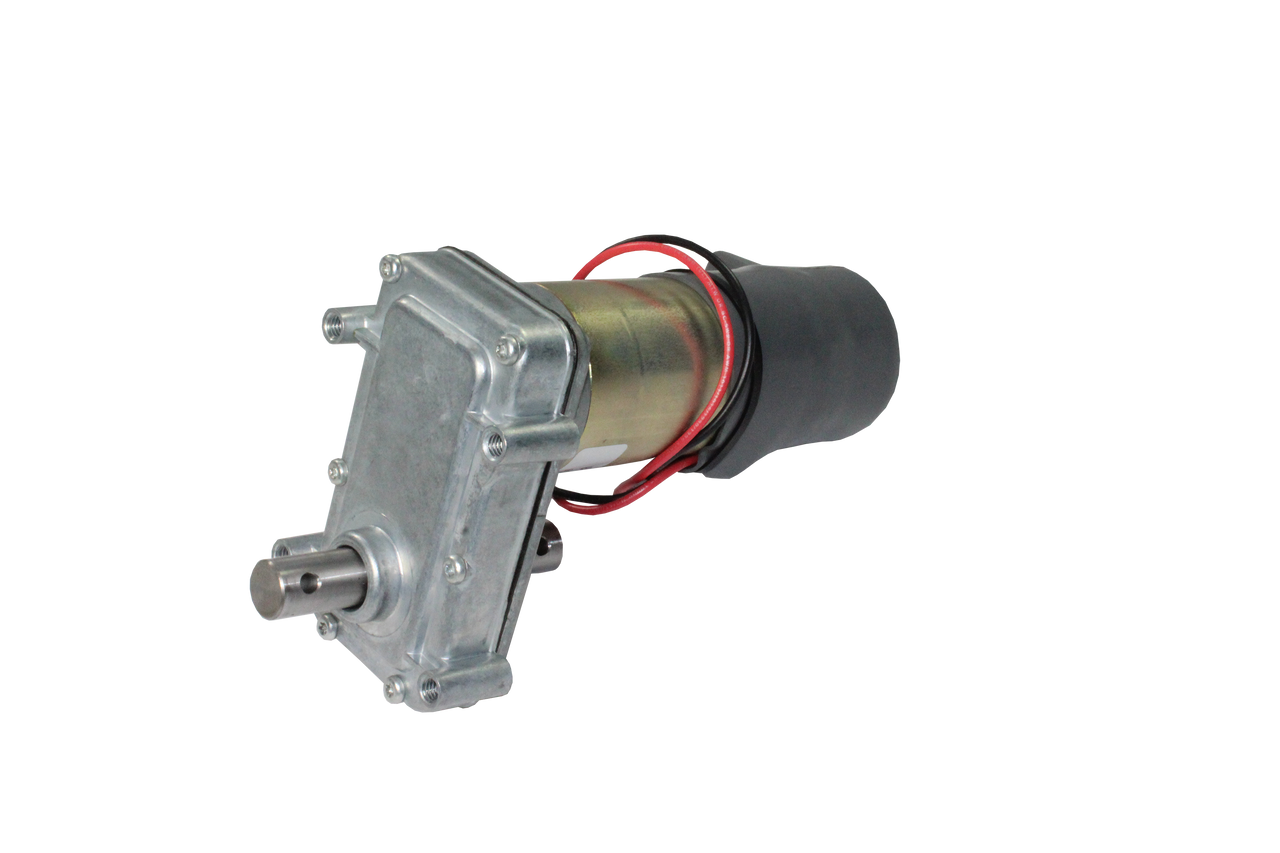

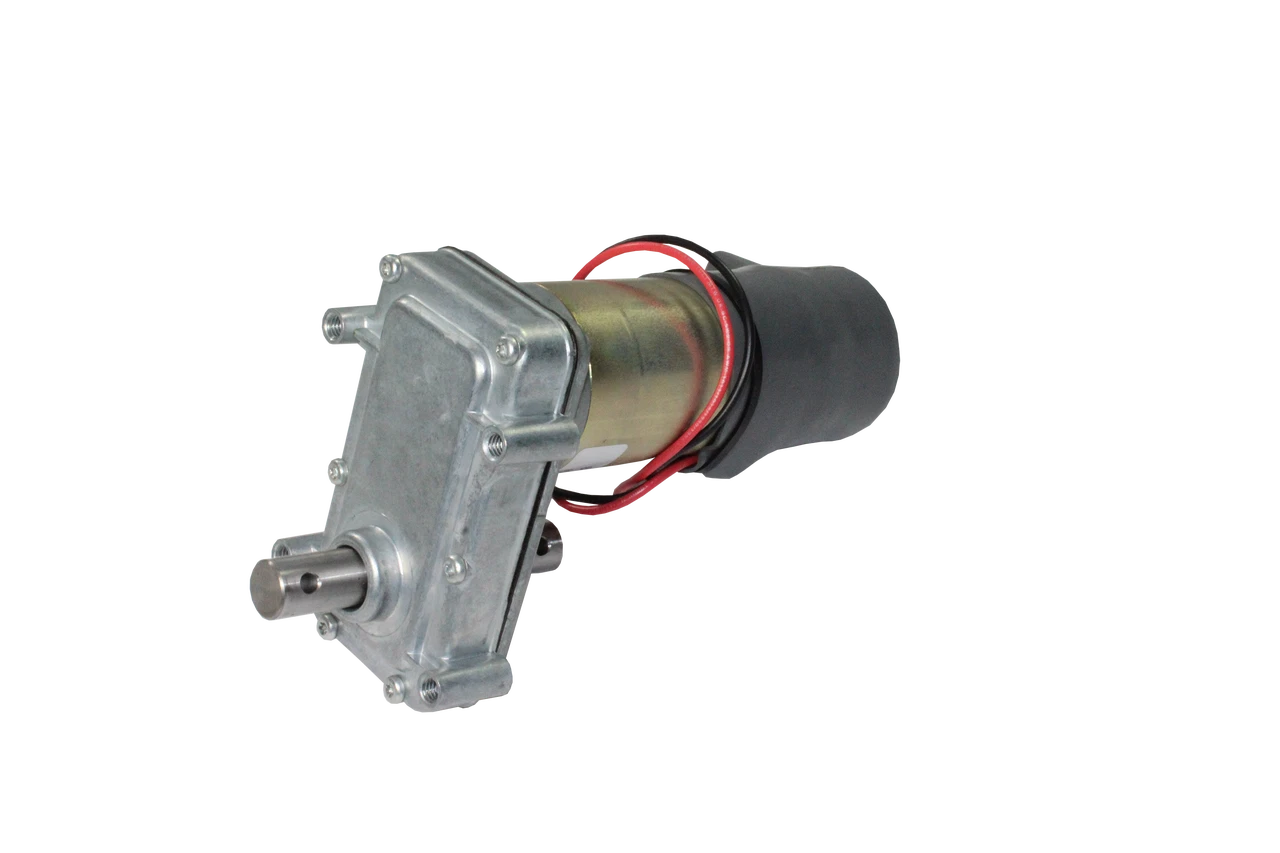

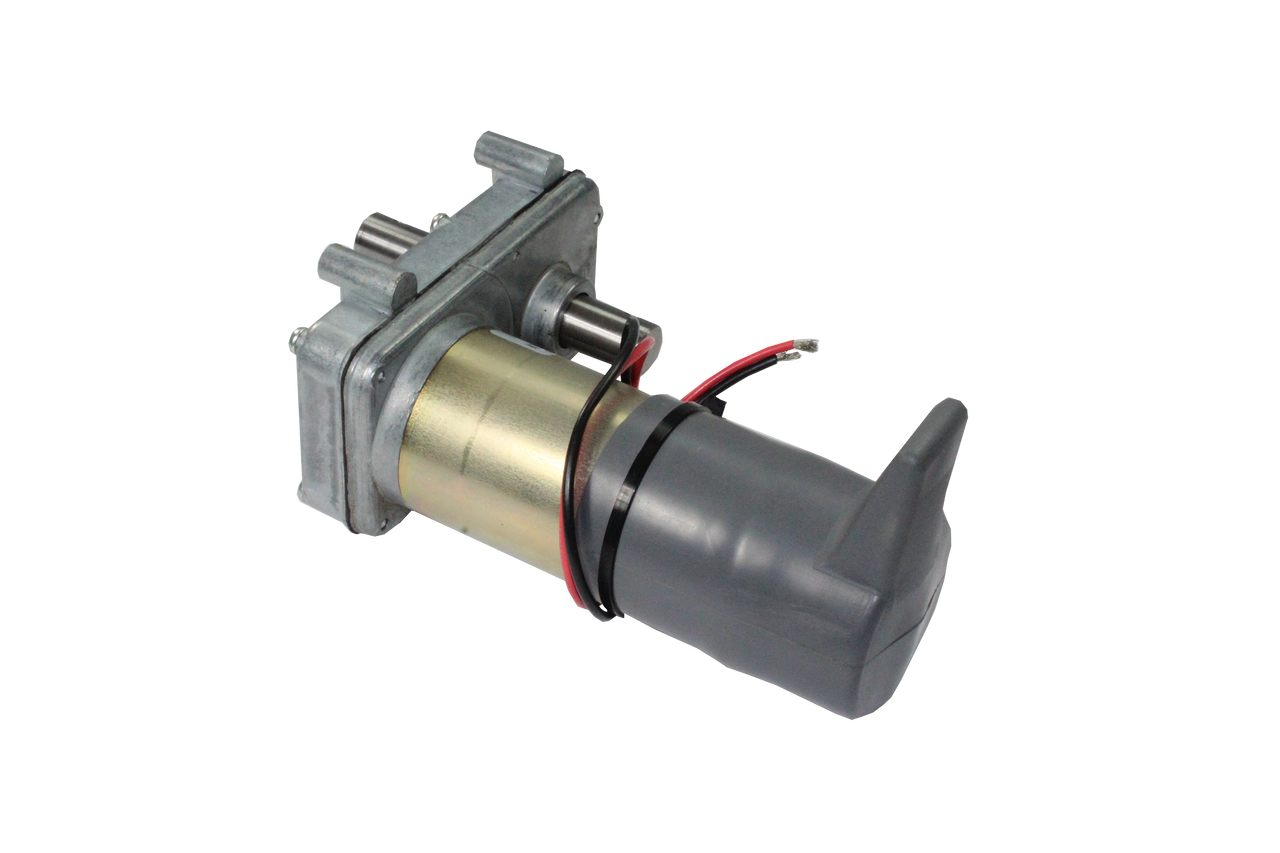

KLAUBER GEAR K01265C500 PMDC Gear Motor 12VDC 12A 131:1

Product Description

The KLAUBER GEAR K01265C500 is a PMDC gear motor suitable for various tasks.

• Operates at 12 VDC with a maximum current draw of 12 amps.
• Features a gear ratio of 131:1 providing significant torque.
• Delivers a running torque of 250 in-lbs at a speed of 22 RPM.

Product Highlights

This PMDC motor is versatile and reliable for projects requiring precision control.

Product Information

Standard Information

• Brand: KLAUBER GEAR
• MPN: K01265C500

Technical Specifications

• Motor Type: PMDC
• Input Voltage: 12 VDC
• Output Current: 12 A
• Gear Ratio: 131:1
• RPM: 22
• Rated/Full-Load Torque: 250 in-lbs
• Shaft Diameter: 3/4 inch
• Double Shaft Size: 1.22 x 3/4 diameter x 1.22
• Current Type: DC
• Model: Klauber K01265C500
