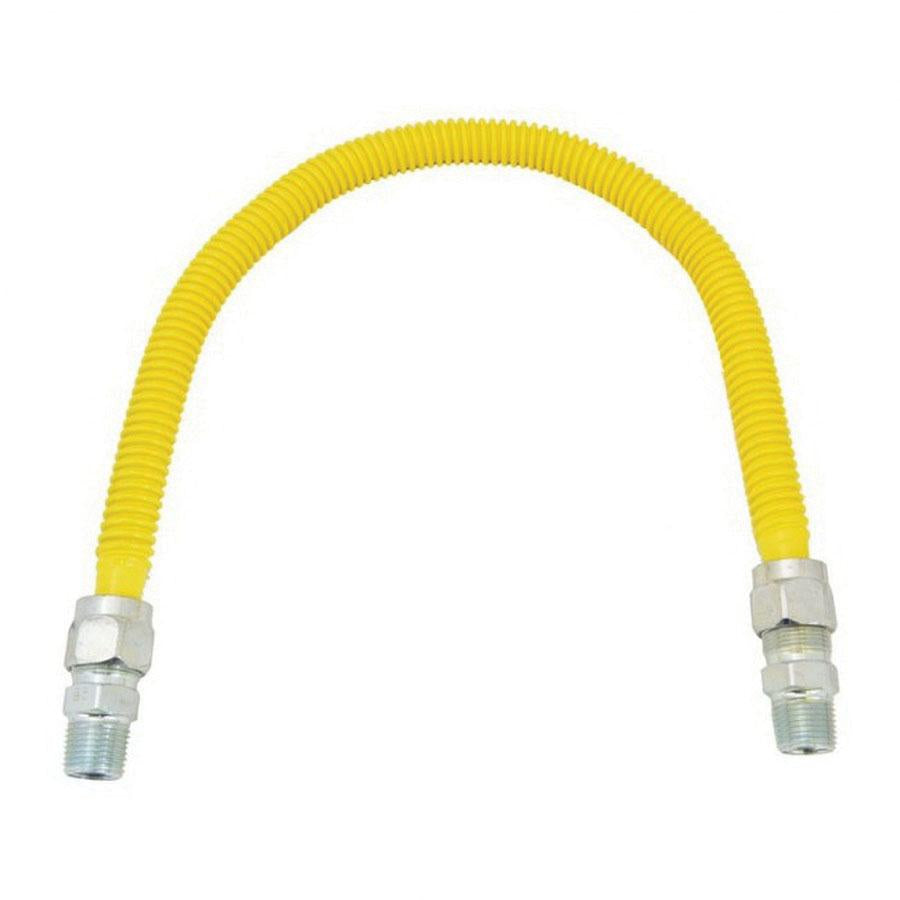

Kissler 13-3124 Gas Appliance Connector 5/8 in OD 1/2 in MIP x 1/2 in MIP 24 in

Product Description

Kissler 13-3124 is a 24 in gas appliance connector with 5/8 in outside diameter tubing and 1/2 in MIP threaded fittings on both ends. The corrugated connector is constructed of 304L stainless steel with a ProCoat polymer coating and is intended for use with natural and liquefied petroleum (LP) gases. It features burnished connector ends, deep corrugations for flexibility, 100% leak testing, a 1/2 psi pressure rating, and -40 to 150 deg F temperature rating.

• 5/8 in outside diameter corrugated 304L stainless steel tubing with 1/2 in inside diameter
• 1/2 in MIP x 1/2 in MIP threaded fittings with smooth burnished connector ends for sealing
• 24 in length; ProCoat polymer coating; rated 150000 Btu (natural) and 240000 Btu (LP); pressure 1/2 psi; temperature -40 to 150 deg F; 100% leak tested

Product Highlights

Corrugated 304L stainless steel gas connector, 24 in, 1/2 in MIP fittings, ProCoat coated and 100% leak tested.

Product Information

Standard Information

• Brand: KISSLER
• Manufacturer Part Number: 13-3124

Technical Specifications

• Brand: Kissler
• MPN: 13-3124
• Product Name: Gas appliance connector
• Length: 24 in
• Inside Diameter: 1/2 in
• Outside Diameter: 5/8 in
• Connection: 1/2 in MIP x 1/2 in MIP
• Material: 304L stainless steel
• Coating: ProCoat polymer coating
• BTU Rating: 150000 Btu (natural), 240000 Btu (LP)
• Pressure Rating: 1/2 psi
• Temperature Rating: -40 to 150 deg F
• Leak Test: 100% leak tested
• Compatible Gases: Natural gas and liquefied petroleum (LP/propane) gases and gas-air mixtures
• Application: Gas appliance connection
• UPC: 026613112381
