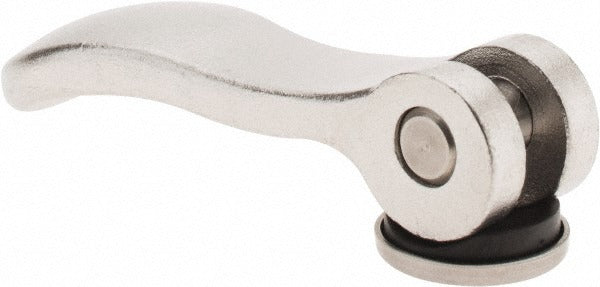

Kipp K0645.2512008 Cam Lever Clamping Handle M8x1.25

Product Description

The KIPP K0645.2512008 is an adjustable cam lever clamping handle designed for secure, tool-free clamping in industrial and mechanical applications. Built from AISI 316 and AISI 303 stainless steel with an electrolytic polish finish, this handle delivers corrosion resistance suited to demanding environments. The cam lever design allows variable arm angle adjustment, giving technicians flexible positioning without disassembly. At 4.25 inches in handle length and 1.12 inches in handle height, the K0645.2512008 provides solid grip leverage in tight spaces. Licensed maintenance technicians and mechanical assemblers are the typical installers for this class of hardware.

This clamping handle is commonly used on industrial machinery, jigs, fixtures, and equipment panels where repeated manual clamping and release is required. The M8x1.25 threaded hole connection allows direct mounting into threaded bores on machine frames, enclosures, or adjustment mechanisms. The stainless steel construction makes it appropriate for wash-down environments, food processing equipment, marine applications, and other settings where moisture or chemical exposure is a concern. The fiberglass reinforced plastic thrust washer and stainless steel hinge pin, washer, and screw components contribute to long service cycles.

Key Features

• Adjustable cam lever with variable arm angle for flexible positioning
• AISI 316 and AISI 303 stainless steel construction for corrosion resistance
• Electrolytic polish finish on handle arm for smooth, cleanable surface
• M8x1.25 threaded hole mount with 18 mm threaded engagement depth
• Fiberglass reinforced plastic thrust washer reduces wear at pivot point
• Silver color with black thrust washer and bright-finish hardware components

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial machinery, fixtures, and equipment requiring an M8x1.25 threaded clamping handle with a cam lever mechanism.

Installation Notes

Installation is typically performed by maintenance technicians or mechanical assemblers using standard hand tools. Ensure the mating threaded bore is clean and free of debris before threading in the handle. Disengage or de-energize any machinery before servicing clamping hardware to prevent unintended movement. Do not exceed the rated threaded engagement depth of 18 mm to avoid damaging the thread in the receiving component.
