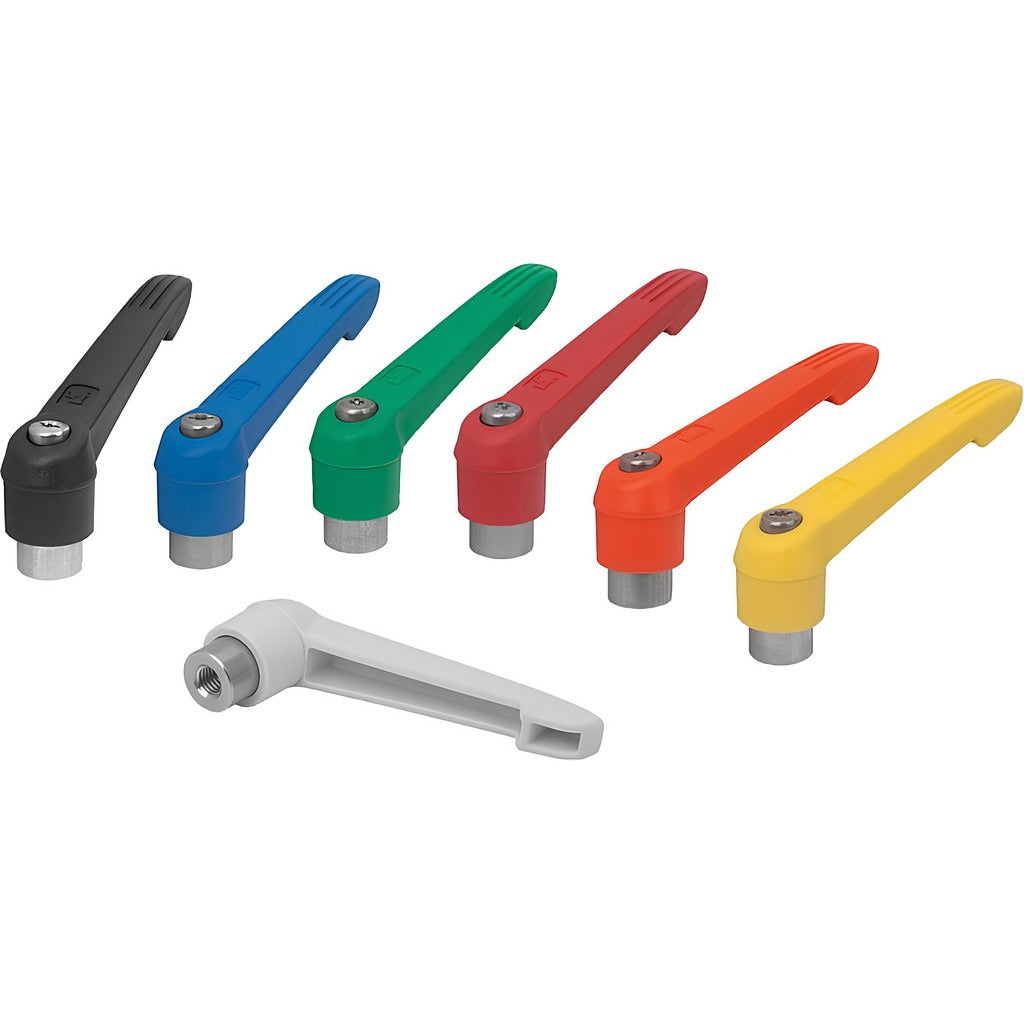

Kipp K0270.4121X60 Adjustable Clamping Handle M12x1.75

Product Description

The KIPP K0270.4121X60 is a metric threaded stud adjustable clamping handle designed for secure, hand-operated clamping in industrial and mechanical applications. The handle body is molded from fiberglass-reinforced plastic for rigidity and chemical resistance, while the threaded stud, base, and hardware components are stainless steel (AISI 303) with a bright finish. The M12x1.75 threaded stud runs 60 mm in length. The hub diameter is 25.5 mm and the overall handle length is 95 mm, with an arm set at a 20-degree angle for ergonomic grip and consistent torque application. Total assembly weight is 0.3 pounds.

This clamping handle is suited for use on machine tools, fixtures, jigs, workholding equipment, and industrial assemblies where frequent manual adjustment is required. The adjustable arm design allows the operator to reposition the handle for unobstructed actuation in tight-clearance installations. It is commonly installed by machine builders, maintenance technicians, and automation integrators working with metric-fastened equipment in light to medium-duty clamping scenarios.

Key Features

• M12x1.75 threaded stud with 60 mm threaded engagement length
• Fiberglass-reinforced plastic handle body for strength and corrosion resistance
• Stainless steel components (AISI 303) with bright finish for durability
• 25.5 mm hub diameter and 95 mm handle arm radius for controlled clamping leverage
• 20-degree handle arm angle for ergonomic hand positioning
• Adjustable arm style allows repositioning to clear obstructions during installation

Compatibility

Designed as a standard metric replacement or original-fit adjustable clamping handle for equipment and fixtures using M12x1.75 threaded stud mounting points.

Installation Notes

Installation is performed by threading the stud into the mating tapped hole by hand before final tightening. Disengage or lock out any powered or pressurized systems on the equipment before servicing clamping hardware. Verify thread engagement depth is sufficient for the load before applying clamping force. No special tools are required for standard installation, though a wrench flat or locking element may be used depending on the mating assembly design.
