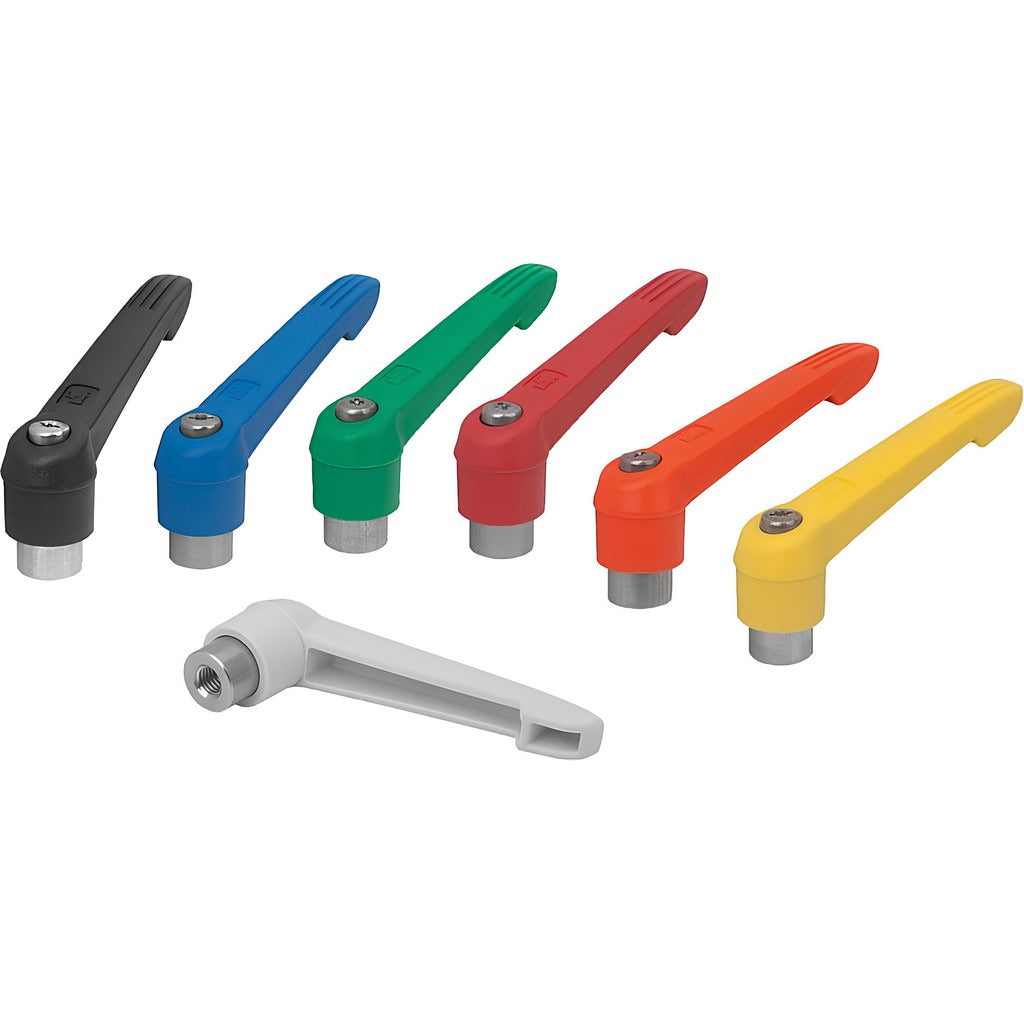

Kipp K0270.4121X30 Adjustable Clamping Handle M12x1.75

Product Description

The KIPP K0270.4121X30 is a metric threaded stud adjustable clamping handle designed for industrial machinery, fixtures, and equipment requiring secure, tool-free manual adjustment. The handle body is constructed from fiberglass-reinforced plastic with stainless steel stud and hardware components rated to AISI 303 material specification. It accepts an M12 x 1.75 threaded stud with a 30 mm threaded length and features a 25.5 mm hub diameter. The modern-design handle arm is set at a 20-degree angle, providing ergonomic grip and controlled clamping force across a range of positioning and locking applications. Total package weight is 0.26 pounds.

This clamping handle is suited for use in manufacturing, automation, and machine tool environments where repeated manual adjustments are required without tooling. The adjustable arm style allows operators to reposition the handle to clear obstructions or optimize grip angle. Typical applications include workholding fixtures, jigs, guards, and access panels on production equipment. It is installed by maintenance technicians, machine builders, and mechanical assemblers working with metric-fastened assemblies.

Key Features

• M12 x 1.75 threaded stud with 30 mm threaded length for direct metric fastener compatibility
• Fiberglass-reinforced plastic handle body for strength and chemical resistance
• Stainless steel stud and components to AISI 303 specification for corrosion resistance
• 20-degree handle arm angle for ergonomic grip and clearance in tight installations
• 25.5 mm hub diameter and 95 mm handle radius length for consistent clamping leverage
• Bright-finish stainless components with black handle body for visual contrast and identification

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, jigs, and machine assemblies using M12 x 1.75 metric threaded studs.

Installation Notes

Installation is performed by mechanical technicians or machine builders familiar with metric fastener assemblies. Disengage and de-energize any associated machinery before servicing clamping hardware. Thread engagement should be verified to meet minimum depth requirements per the equipment manufacturer's specifications. Do not exceed the torque or clamping load ratings specified by the equipment OEM.
