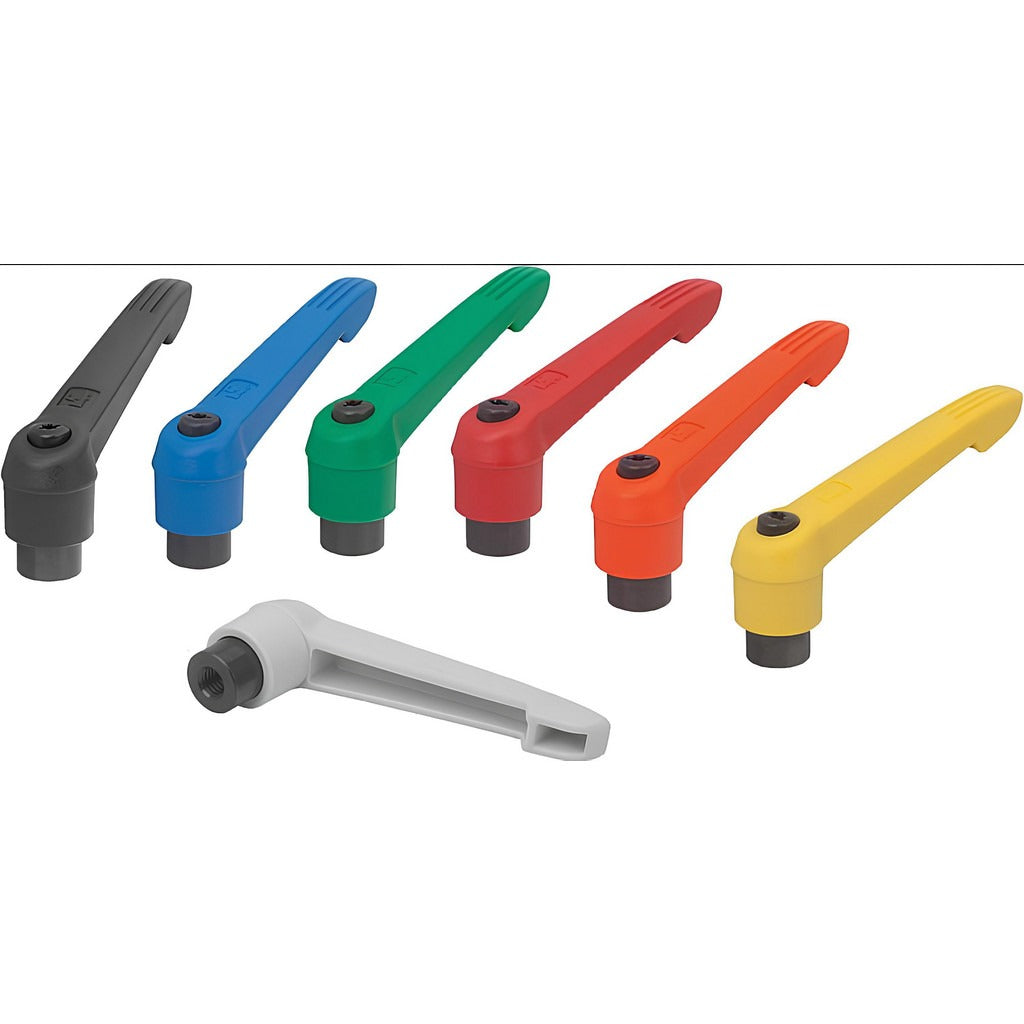

Kipp K0269.5161 Adjustable Clamping Handle M16x2

Product Description

The KIPP K0269.5161 is an adjustable clamping handle designed for industrial fastening and positioning applications where repeatable hand-tightening is required. The handle features a fiberglass-reinforced plastic body with steel components finished in black oxide, providing corrosion resistance and durability in demanding shop and production environments. The tapped threaded hole accepts M16 x 2.00 fasteners with a threaded depth of approximately 0.9 inches. Overall length is approximately 4.33 inches and overall height is approximately 3.03 inches. The handle arm is set at a 20-degree angle and follows a modern arm profile, making it suitable for ergonomic hand operation on machine tools, fixtures, and clamping assemblies. Licensed mechanics, machine technicians, and fixture builders are the primary installers.

This clamping handle is used in industrial machinery, workholding fixtures, jigs, and equipment panels where a secure, hand-adjustable clamp point is needed. The M16 x 2.00 threaded hole mount allows direct installation onto threaded studs or bolts on machine frames and fixture plates. Its compact hub diameter of approximately 1.18 inches and low-profile base make it suited for tight mounting surfaces in both light manufacturing and heavy industrial settings. The black fiberglass-reinforced plastic construction withstands moderate chemical exposure and resists surface wear under repeated use.

Key Features

• M16 x 2.00 tapped threaded hole connection for direct stud or bolt mounting
• Fiberglass-reinforced plastic handle body for lightweight strength and chemical resistance
• Steel components with black oxide finish for corrosion protection
• 20-degree handle arm angle for ergonomic grip and torque application
• 30 mm (approximately 1.18 inches) hub diameter with 23 mm threaded depth
• Compact overall length of approximately 4.33 inches suits tight fixture layouts

Compatibility

Designed as a direct-mount adjustable clamping handle for threaded stud and bolt assemblies using M16 x 2.00 thread pitch, typical of industrial machinery, workholding fixtures, and equipment panel applications.

Installation Notes

Installation is performed by machine technicians or fixture builders using standard hand tools. Ensure the mating stud or bolt thread is M16 x 2.00 and that the engaged thread length does not exceed the 23 mm threaded depth of the handle. De-energize and lock out any machinery before servicing or replacing clamping handles on live equipment. Do not exceed the hand-tightening torque appropriate for Grade 5.8 steel components.
