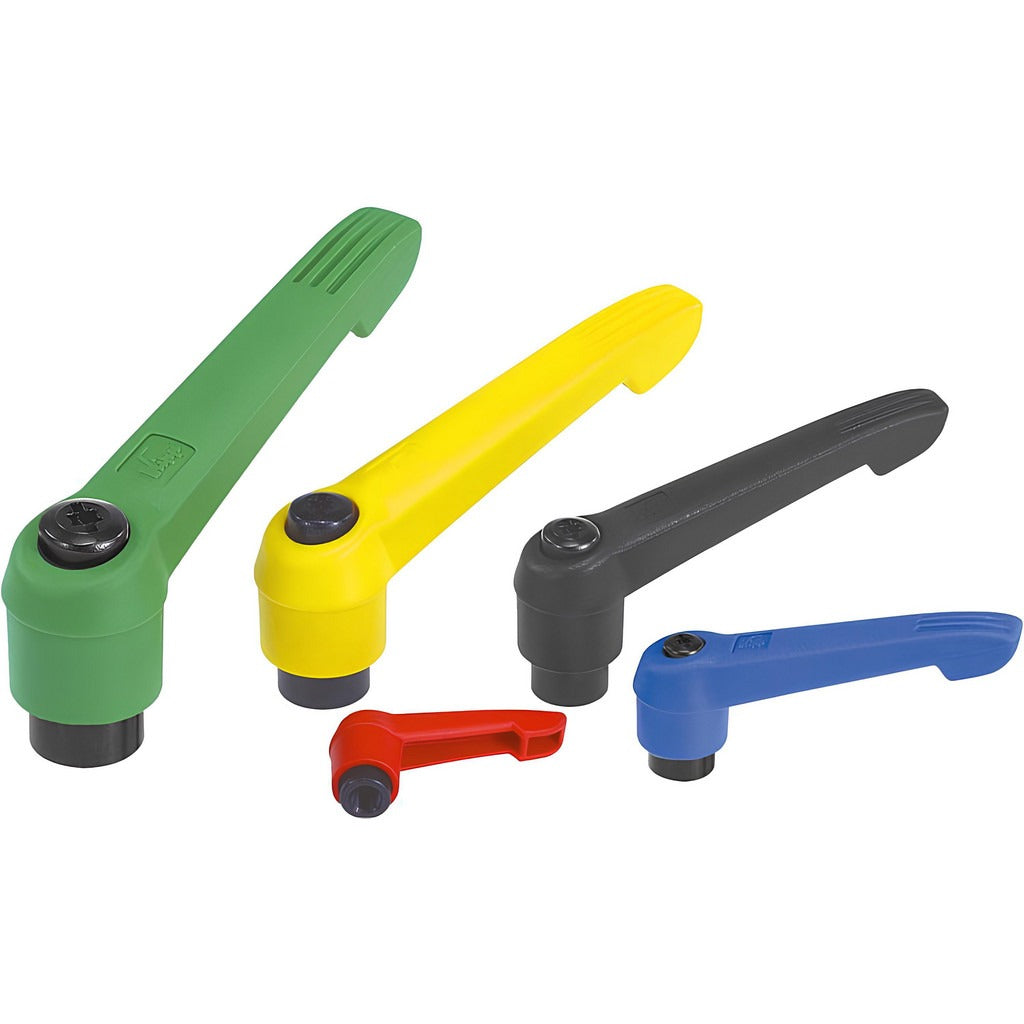

Kipp K0269.4A51X40 Adjustable Clamping Handle 1/2-13

Product Description

The KIPP K0269.4A51X40 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical applications. The handle body is molded from fiberglass-reinforced plastic for durability and resistance to wear, while the threaded stud and internal components are steel with a black oxide finish. The stud uses a 1/2-13 thread form and extends 1.57 inches for engagement into mating parts. The handle arm spans 3.74 inches in radius length and pivots at a 20-degree angle, providing comfortable grip and controlled clamping force. Typical installers include machine builders, maintenance technicians, and fixture assemblers working with jigs, fixtures, and adjustable mechanical assemblies.

This adjustable clamping handle suits applications where frequent repositioning or manual adjustment is required without tools. Common install environments include industrial machinery, workholding fixtures, enclosures, and adjustment mechanisms on production equipment. The modern-design handle arm and black finish make it appropriate for both functional and visible-face installations. The 1-inch hub diameter fits standard threaded mounting points found across a wide range of mechanical assemblies.

Key Features

• 1/2-13 threaded stud for broad compatibility with standard fastener threads
• Fiberglass-reinforced plastic handle body for strength and lightweight durability
• Steel components with black oxide finish for corrosion resistance
• 20-degree handle arm angle for ergonomic grip and clamping leverage
• REACH Compliant and RoHS Compliant per stated standards
• Grade 5.8 material specification on steel components

Compatibility

Designed as an OEM-style replacement or direct-fit adjustable clamping handle for industrial machinery, fixtures, and mechanical assemblies using 1/2-13 threaded mounting points.

Installation Notes

Installation is typically performed by maintenance technicians or machine assemblers. Thread the stud into the mating tapped hole by hand, ensuring full thread engagement before applying clamping load. De-energize or lock out any machine before servicing associated components. Avoid applying excessive torque through the handle arm, as this is a manual clamping device and not rated for powered tightening.
