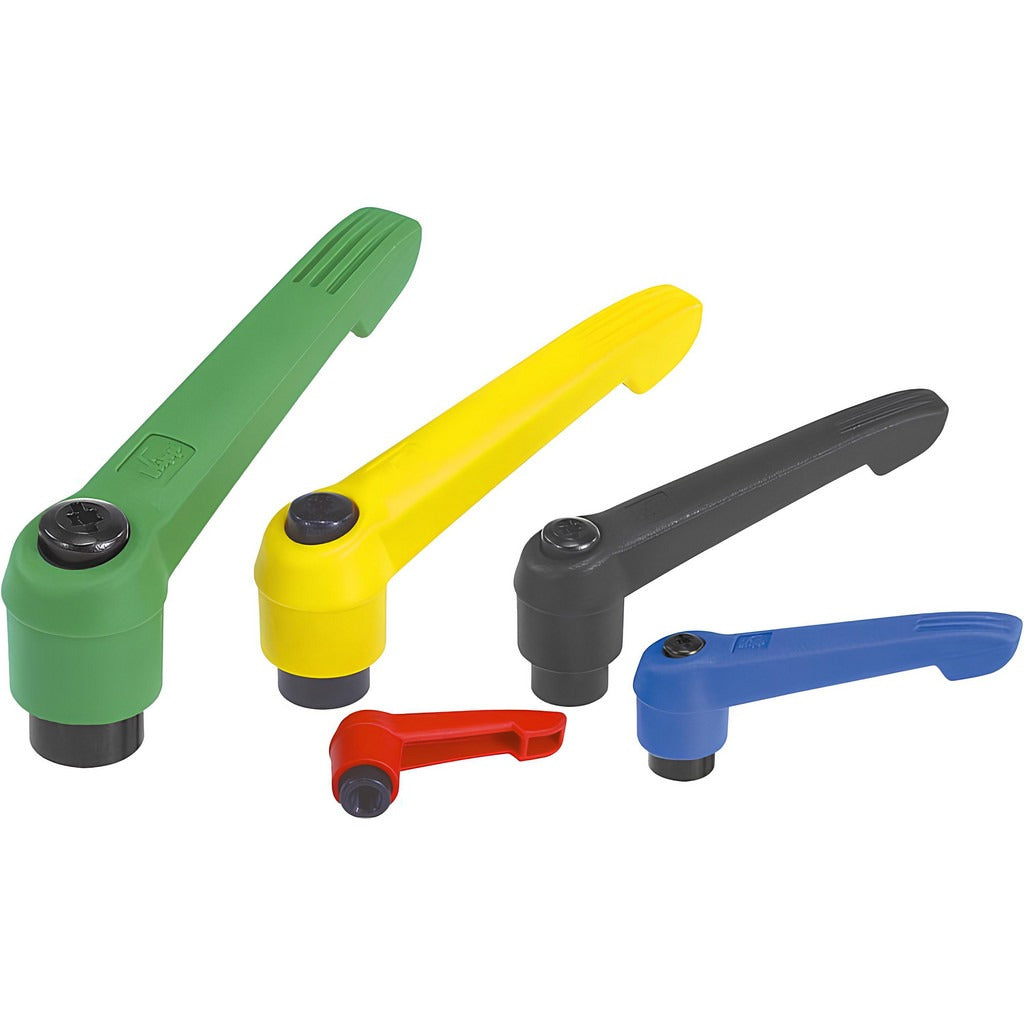

Kipp K0269.2A41X25 Adjustable Clamping Handle 3/8-16

Product Description

The KIPP K0269.2A41X25 is a threaded stud adjustable clamping handle designed for use in machine tool, fixture, and industrial equipment applications. It features a 3/8-16 threaded stud with a 0.98-inch stud length and a fiberglass-reinforced plastic handle body that resists corrosion and mechanical wear. The handle arm spans 2.56 inches in radius length and pivots at a 20-degree arm angle, allowing operators to adjust grip position for tightening or releasing clamping mechanisms in constrained spaces. The steel stud and hardware components carry a black oxide finish. This type of handle is installed by machine builders, millwrights, fixture technicians, and maintenance professionals across manufacturing and industrial settings.

This adjustable clamping handle is suited for use on jigs, fixtures, machine guards, enclosure panels, and clamping assemblies where a compact, repositionable hand-tightened fastener is required. The 3/8-16 thread size is a standard inch-series coarse thread, making it compatible with a wide range of commercially threaded hardware and tapped components. The black color and modern arm style make it appropriate for both functional and operator-facing panel installations. It is sold individually and ships as a single-piece unit.

Key Features

• Adjustable clamping arm pivots at 20 degrees for repositionable grip in tight spaces
• Fiberglass-reinforced plastic handle body resists corrosion and provides electrical insulation properties
• Steel stud and components with black oxide finish for corrosion resistance
• 3/8-16 threaded stud with 0.98-inch threaded length for broad hardware compatibility
• Compact hub diameter of 0.71 inches suits space-constrained mounting locations
• REACH Compliant and RoHS Compliant per stated standards

Compatibility

Designed as a direct-replacement or new-installation threaded stud clamping handle for jigs, fixtures, machine enclosures, and industrial clamping assemblies using 3/8-16 inch-series threaded interfaces.

Installation Notes

Installation requires a tapped 3/8-16 receiving hole in the mating component. De-energize and lock out any machine or powered equipment before servicing clamping assemblies per applicable OSHA lockout/tagout procedures. Hand-tighten only to the friction load the handle is rated for; do not use tools to over-torque a hand-knob style fastener. Inspect the stud threads and mating threads for wear or contamination before installation.
