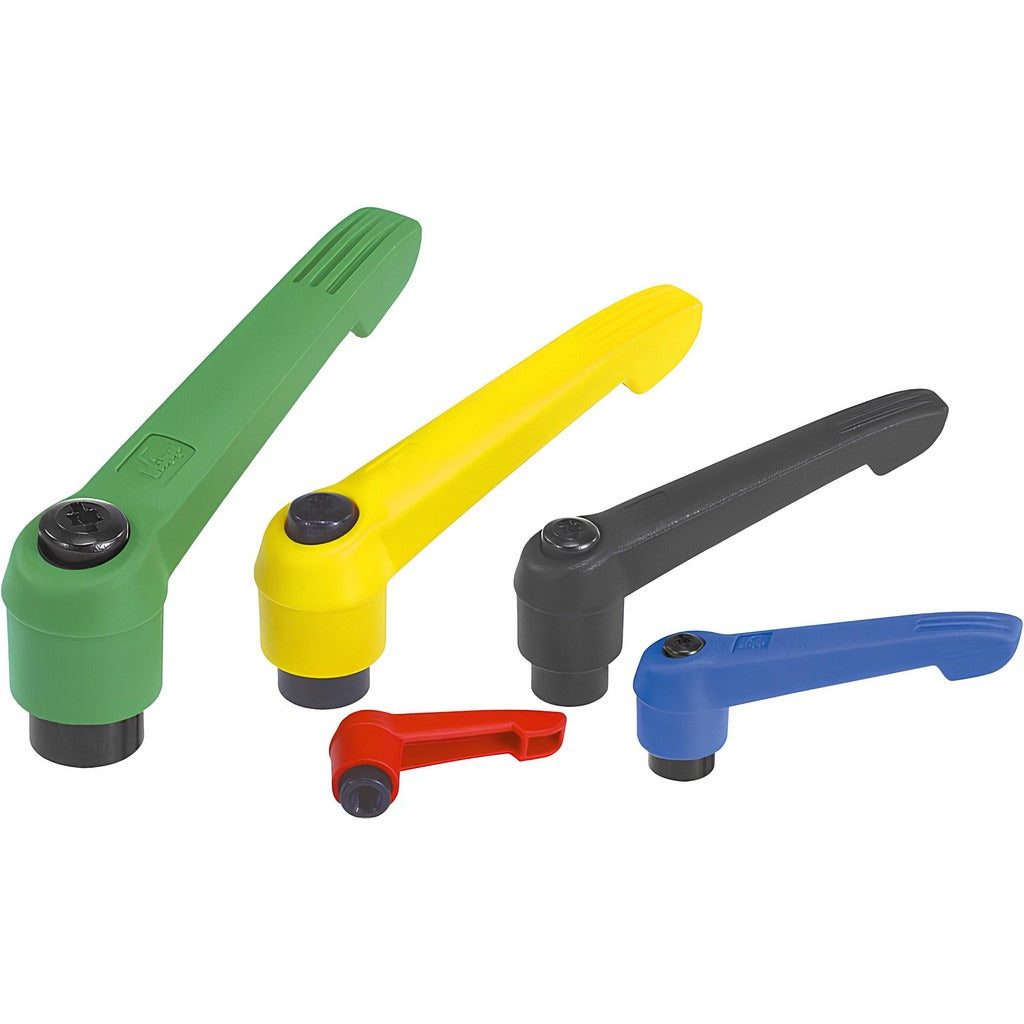

Kipp K0269.2A31X20 Adjustable Clamping Handle 5/16-18

Product Description

The KIPP K0269.2A31X20 is an adjustable clamping handle with a threaded stud mount, designed for tool-free clamping and securing applications on machinery, jigs, fixtures, and industrial equipment. The handle body is molded from fiberglass-reinforced plastic for strength and chemical resistance, while the stud and internal components are steel with a black oxide finish. The 5/16-18 threaded stud measures 0.79 inches in length. The handle arm spans 2.56 inches in radius length and pivots to allow repositioning at a 20-degree arm angle, enabling quick hand-tightening in tight or awkward access areas. Licensed tradespeople, machine builders, and maintenance technicians install this type of component during fixture assembly or equipment servicing.

This adjustable clamping handle is suited for light industrial and mechanical applications where repeated hand-tightening and loosening is required without tooling. Typical use cases include machine guards, work-holding fixtures, enclosure panels, and adjustment assemblies on fabrication equipment. The threaded stud configuration makes it straightforward to install into a pre-tapped hole. The compact overall height of 1.79 inches and body diameter of 0.71 inches fit space-constrained mounting locations common on benchtop machinery and industrial fixtures.

Key Features

• Fiberglass-reinforced plastic handle body resists chemicals, moisture, and mechanical wear
• 5/16-18 threaded stud mount for direct installation into tapped holes
• Adjustable arm pivots at 20-degree angle for repositioning in confined spaces
• Steel components with black oxide finish for corrosion resistance
• REACH Compliant and RoHS Compliant per listed standards
• Compact form factor suits space-constrained fixture and panel applications

Compatibility

Designed as an OEM-style threaded stud clamping handle for machinery, fixtures, and industrial equipment with a 5/16-18 tapped mounting hole.

Installation Notes

Installation is performed by threading the stud directly into a pre-tapped 5/16-18 hole by hand or with a wrench on the stud flats. Power down or de-energize equipment before servicing any components in the mounting area. Do not exceed the rated clamping force for the thread size and material grade. Inspect the stud threads and mating hole for damage before assembly to ensure full thread engagement.
