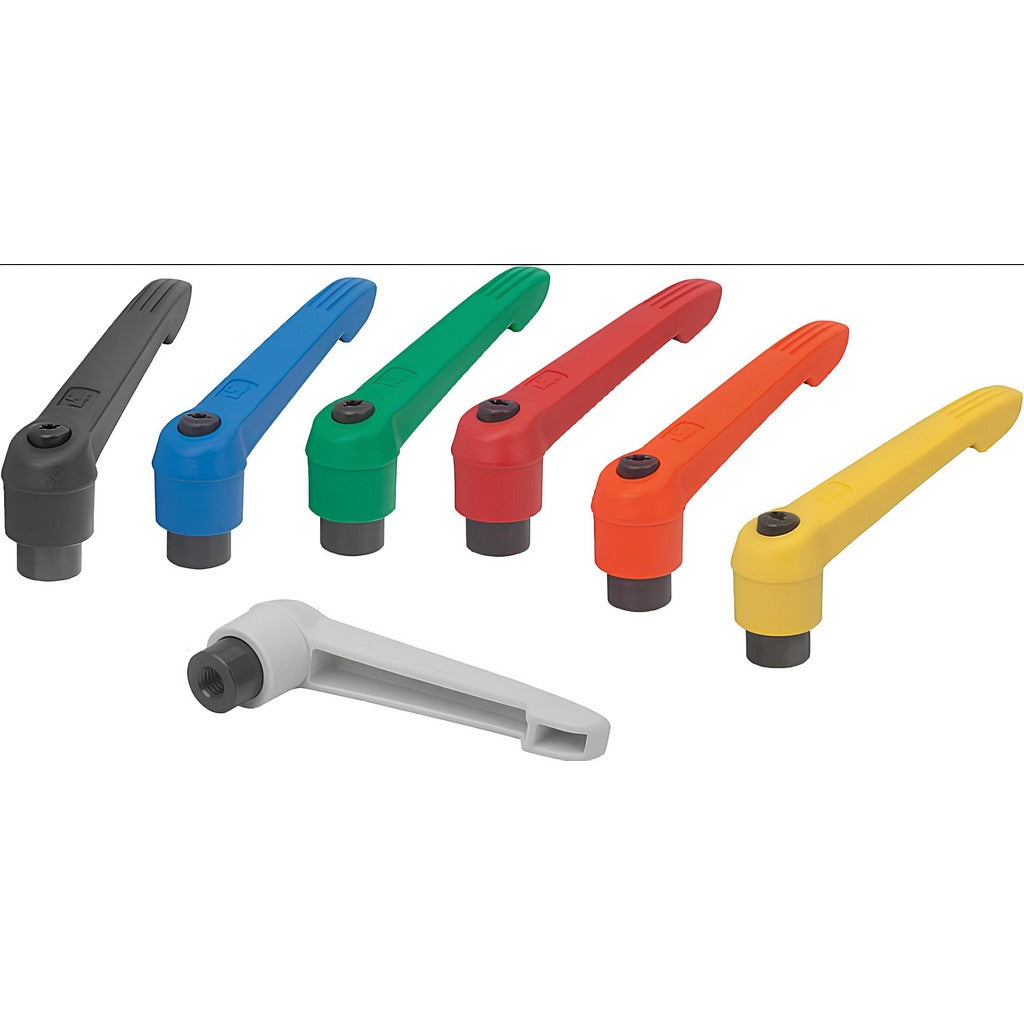

Kipp K0269.2101X50 Adjustable Clamping Handle M10x1.5

Product Description

The KIPP K0269.2101X50 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping and positioning in industrial and mechanical assemblies. The handle features a fiberglass-reinforced plastic body in black, offering resistance to corrosion and a firm grip. The steel stud is finished in black oxide and rated to Grade 5.8, providing reliable clamping force. Key dimensions include a 50 mm threaded stud length, a 65 mm handle radius length, and an 18 mm hub diameter. The 20-degree handle arm angle improves ergonomic access in tight spaces. Mechanical technicians and maintenance professionals install this type of handle on jigs, fixtures, machine guards, and clamping assemblies.

This adjustable clamping handle is suited for use in light industrial, manufacturing, and mechanical maintenance environments. It is appropriate for applications requiring repeatable hand-tightened fastening, including fixture clamping, panel securing, and adjustable stop mechanisms. The M10x1.5 thread is a standard metric size found across a wide range of machine tool and fabrication equipment platforms. The compact body height of 11.50 mm and base diameter of 13.50 mm make it suitable for assemblies with limited clearance. Installation does not require specialized tooling under normal conditions.

Key Features

• M10x1.5 threaded stud with 50 mm threaded length for standard metric fastening
• Fiberglass-reinforced plastic handle body provides corrosion resistance and a secure grip
• Steel stud with black oxide finish, Grade 5.8 material specification
• 20-degree handle arm angle improves access in confined or angled mounting positions
• 18 mm hub diameter and 11.50 mm body height for compact installation footprint
• REACH compliant and RoHS compliant

Compatibility

Designed as a standard-thread replacement or new-install adjustable clamping handle for machinery, jigs, fixtures, and equipment using M10x1.5 threaded fastening points.

Installation Notes

Installation is performed by mechanical technicians familiar with metric fastener assemblies. Disengage or de-energize any machine or clamping system before removing or installing the handle. Thread the stud into the receiving hole to the appropriate engagement depth before tightening by hand. Do not use impact tools on the handle body, as this may damage the fiberglass-reinforced plastic construction.
