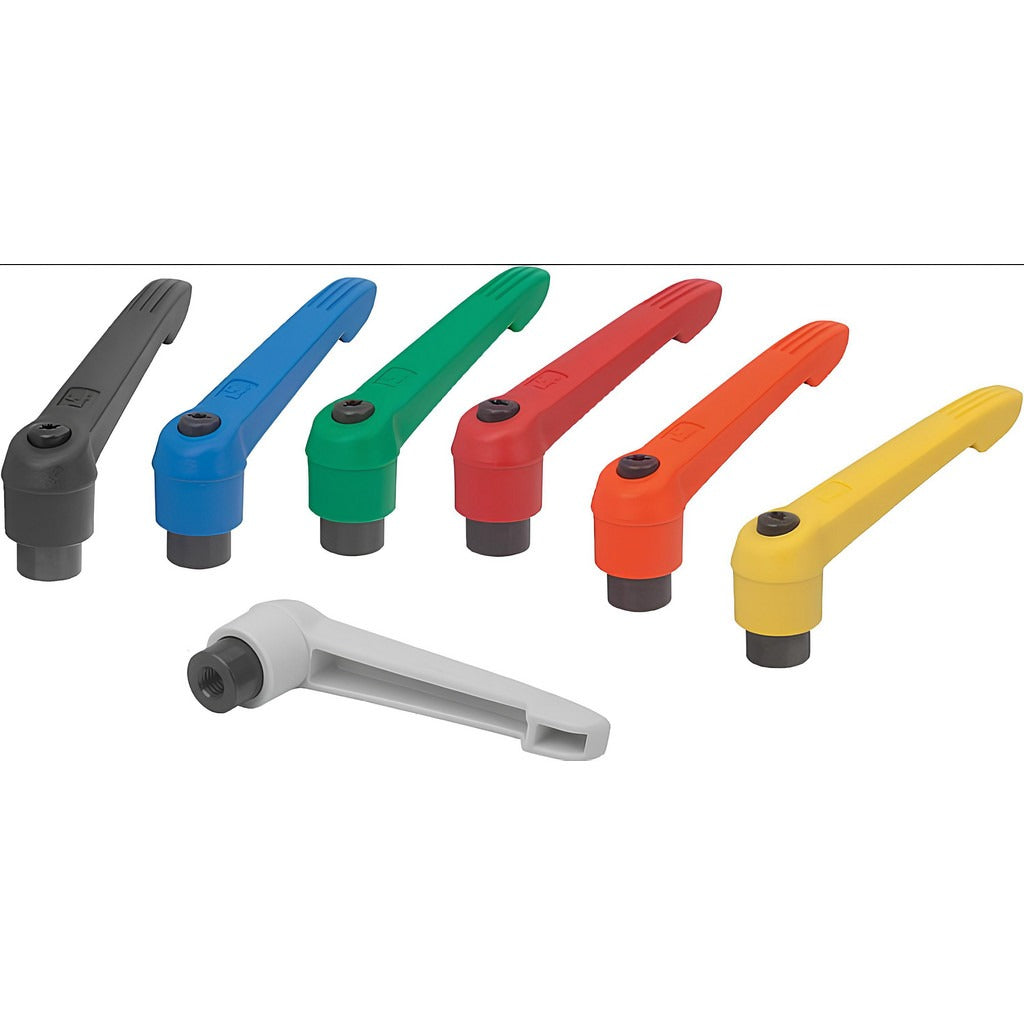

Kipp K0269.2081X50 Adjustable Clamping Handle M8x1.25

Product Description

The KIPP K0269.2081X50 is a threaded stud adjustable clamping handle designed for secure, tool-free fastening in industrial and mechanical assembly applications. The handle features an M8 x 1.25 threaded stud with a 50 mm stud length, allowing direct engagement with standard M8 tapped holes. The handle arm spans 65 mm and is molded from fiberglass-reinforced plastic for a combination of light weight and structural rigidity. The steel stud and body components are finished in black oxide for corrosion resistance. The adjustable design allows the handle arm to be repositioned to a convenient grip angle during tightening or release, making it well-suited for repetitive clamping tasks where access angles vary.

This clamping handle is used in industrial equipment, jigs, fixtures, machine guarding, and general mechanical assemblies where a hand-operable fastener is required. The M8 x 1.25 thread size covers a broad range of standard metric tapped bores. With an overall height of 41.5 mm and a base diameter of 13.5 mm, the handle fits into compact mounting envelopes. It is commonly installed by machinists, maintenance technicians, and assembly workers in manufacturing, tooling, and light industrial environments.

Key Features

• M8 x 1.25 threaded stud with 50 mm threaded engagement length for standard metric fastening
• Adjustable handle arm repositions to optimize grip angle during clamping
• Fiberglass-reinforced plastic handle arm provides strength with reduced weight
• Steel stud and body components finished in black oxide for corrosion resistance
• Handle arm angle of 20 degrees supports ergonomic hand positioning
• REACH compliant and RoHS compliant construction

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial fixtures, jigs, and machine assemblies using standard M8 x 1.25 tapped mounting points.

Installation Notes

Installation is performed by hand or with standard hand tools by qualified maintenance or assembly technicians. Disengage and de-energize any equipment before accessing the mounting area. Verify that the receiving thread in the mating component matches M8 x 1.25 pitch before installation to avoid cross-threading or thread damage. Do not exceed the rated clamping load specified by the equipment manufacturer for the mounting assembly.
