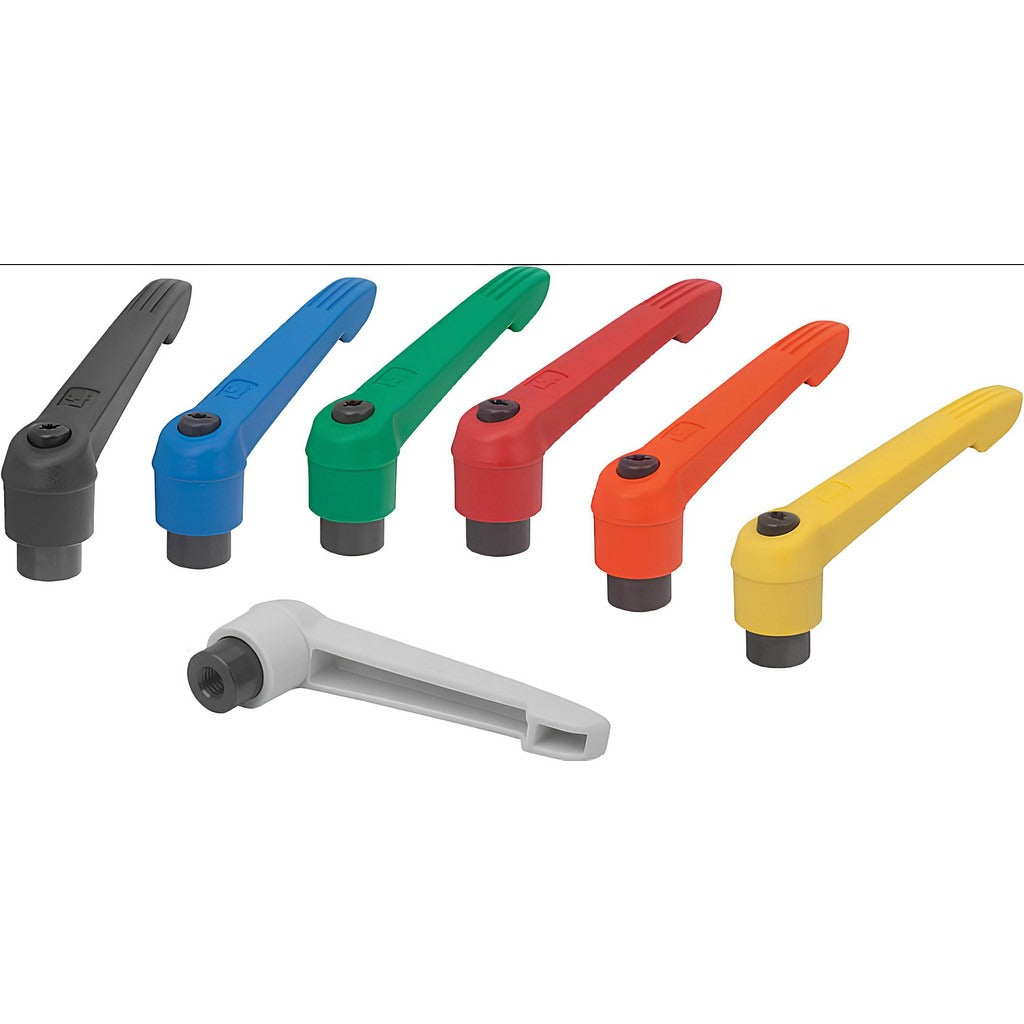

Kipp K0269.2081X30 Adjustable Clamping Handle M8x1.25

Product Description

The KIPP K0269.2081X30 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical assembly applications. The handle body is molded from fiberglass-reinforced plastic, offering a rigid, lightweight grip with good chemical resistance. The threaded stud and internal steel components are finished in black oxide to a Grade 5.8 material specification. Key dimensions include an M8x1.25 threaded stud at 30 mm in length, an 18 mm hub diameter, and a 65 mm handle arm length. The handle arm is set at a 20-degree angle for ergonomic positioning during adjustment. Total assembly weight is 0.09 pounds.

This clamping handle is suited for use on machine tools, fixtures, jigs, workholding equipment, and industrial enclosures where repeated manual clamping and release is required. The M8x1.25 threaded stud mounts directly into tapped bores on equipment panels or structural members. It is a standard hardware component installed by mechanical assemblers, machine builders, and maintenance technicians across light and medium industrial environments. The part meets REACH and RoHS compliance standards, making it appropriate for use in regulated manufacturing settings.

Key Features

• Fiberglass-reinforced plastic handle body provides a rigid, lightweight, and chemically resistant grip
• M8x1.25 threaded stud in steel with black oxide finish and Grade 5.8 material specification
• 65 mm handle arm length with 20-degree arm angle for ergonomic manual adjustment
• 18 mm hub diameter and 13.5 mm base diameter for compact fitment on standard mounting surfaces
• REACH Compliant and RoHS Compliant for use in regulated manufacturing environments
• Adjustable handle design allows repositioning of the handle arm to suit operator preference

Compatibility

Designed as a standard M8x1.25 threaded stud clamping handle for use in any application requiring an M8 tapped bore mounting point on machine tools, fixtures, jigs, or industrial equipment panels.

Installation Notes

Installation is performed by threading the M8x1.25 stud directly into a compatible tapped bore by hand or with appropriate tooling. Ensure the mating threaded bore is clean and free of debris before installation. Do not exceed the torque capacity appropriate for Grade 5.8 steel hardware as defined by the equipment manufacturer. Power down or de-energize any associated equipment before servicing mounting hardware on live machinery.
