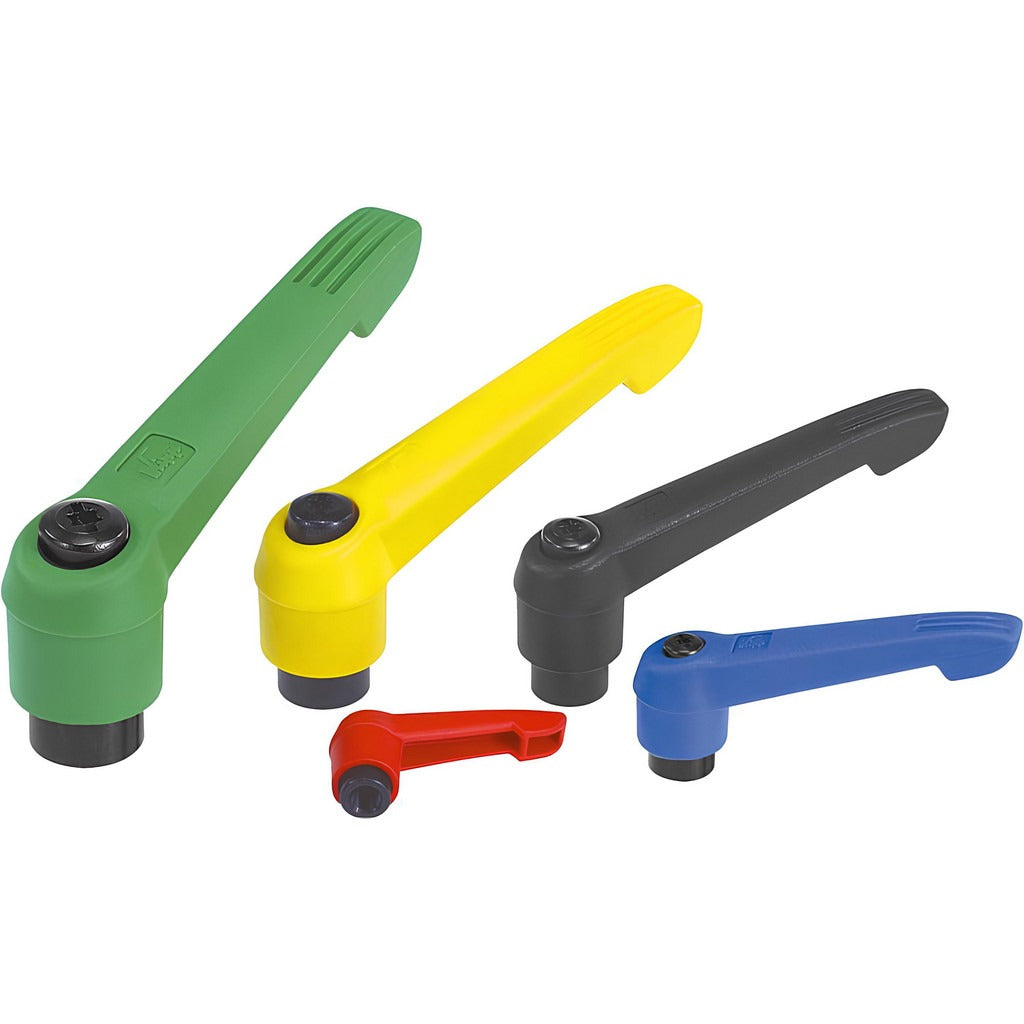

Kipp K0269.1A21X30 Adjustable Clamping Handle 1/4-20

Product Description

The KIPP K0269.1A21X30 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping and locking in industrial and mechanical assemblies. The handle body is molded from fiberglass-reinforced plastic for a lightweight, corrosion-resistant grip, while the stud and internal components are steel with a black oxide finish for added durability. The handle arm pivots to a 20-degree angle for repositioning in tight spaces. With a 1/4-20 threaded stud and a stud length of 1.181 inches, this handle suits a wide range of clamping and fastening applications. Weighing 0.05 pounds, it is easy to handle and install without special tooling.

This adjustable clamping handle is suited for use in machinery, fixtures, jigs, enclosures, and equipment panels where frequent manual adjustment is required. The modern-design handle arm and compact overall length of 1.575 inches make it a practical choice for confined spaces on light-duty to medium-duty equipment. Typical installers include machine builders, millwrights, maintenance technicians, and equipment assemblers working in industrial manufacturing and fabrication environments.

Key Features

• Fiberglass-reinforced plastic handle body - lightweight and corrosion-resistant
• 1/4-20 threaded stud with 1.181-inch stud length for broad fastening compatibility
• Steel stud and components with black oxide coating for corrosion resistance
• Adjustable handle arm pivots at 20-degree increments for use in confined or obstructed spaces
• REACH Compliant and RoHS Compliant
• Grade 5.8 material specification on steel components

Compatibility

Designed as an OEM-style threaded stud clamping handle for machinery, fixtures, and equipment panels using 1/4-20 threaded mounts requiring an adjustable handle with a 0.510-inch hub diameter.

Installation Notes

Installation is performed by threading the stud directly into a tapped 1/4-20 hole in the mating component. Ensure the receiving thread is clean and free of debris before installation. No special tools are required for assembly; hand-tighten and verify the clamping arm moves freely through its adjustment range. Follow applicable machinery safety standards and power down or de-energize equipment before servicing any assembly that uses this handle.
