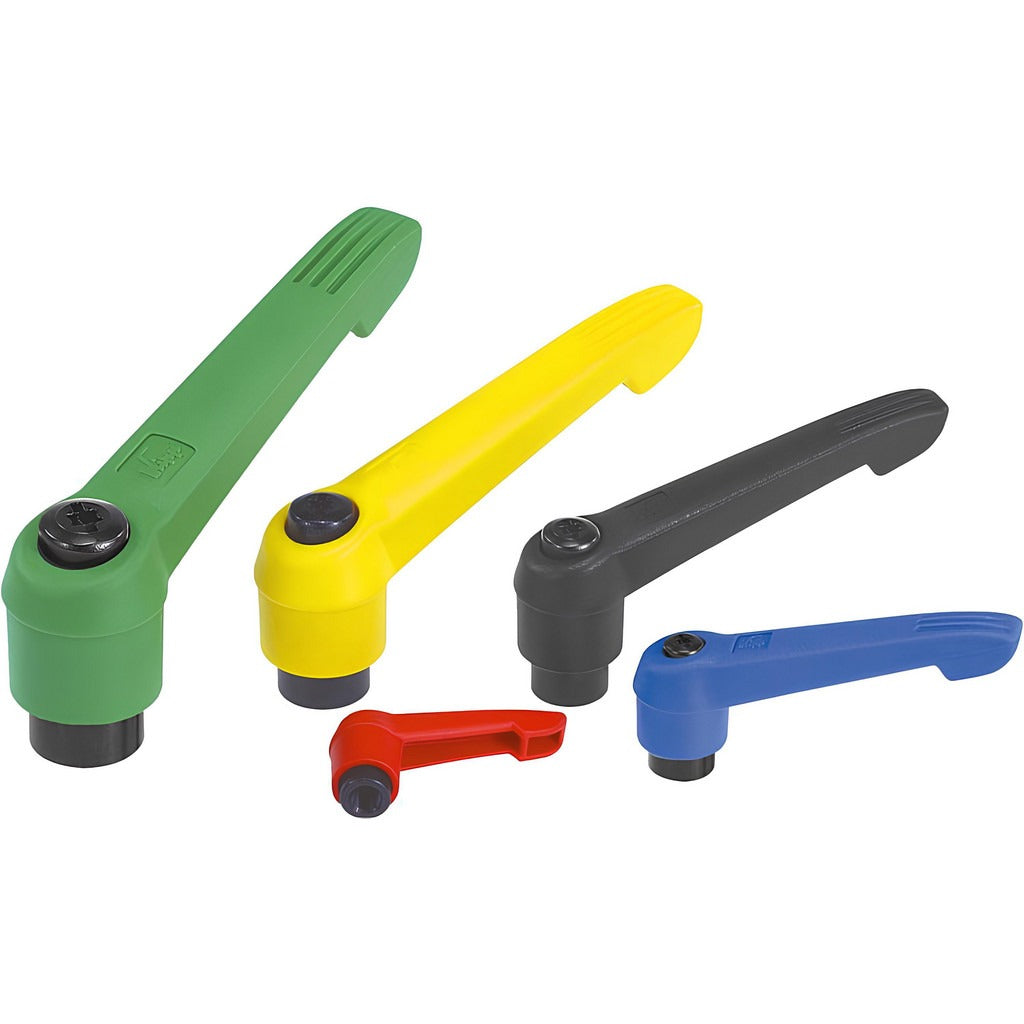

Kipp K0269.1A11X20 Adjustable Clamping Handle 10-32

Product Description

The KIPP K0269.1A11X20 is an adjustable clamping handle with a threaded stud mount, designed for use in industrial machinery, fixtures, and equipment where hand-tightened clamping is required. The handle body is molded from fiberglass-reinforced plastic for rigidity and corrosion resistance, while the stud and base components are steel with a black oxide finish. It accepts a 10-32 threaded stud, with a stud length of 0.79 inches and a handle length of 1.57 inches. The arm is positioned at a 20-degree angle, which allows for comfortable grip and consistent clamping force without tools. This handle is typically installed by machine builders, maintenance technicians, and fixture assemblers.

The K0269.1A11X20 is suited for light-duty clamping applications on jigs, fixtures, enclosures, and adjustable machine guards. The compact form factor, with a hub diameter of 0.51 inches and an overall height of 1.32 inches, makes it appropriate for installations with limited clearance. It is sold individually and is a direct-fit option wherever a 10-32 threaded stud clamping handle is specified. The black color and modern arm style integrate cleanly into standard industrial equipment panels and assemblies.

Key Features

• Fiberglass-reinforced plastic handle body for strength and corrosion resistance
• Steel stud and base components with black oxide coating for durability
• 10-32 threaded stud connection for secure, tool-free clamping
• 20-degree handle arm angle for ergonomic hand grip
• Compact profile - 1.57 inches handle length, 0.51 inches hub diameter
• REACH and RoHS compliant materials

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial fixtures, jigs, and machine assemblies requiring a 10-32 threaded stud mount.

Installation Notes

Installation is performed by hand or with standard hand tools. Ensure the mating threaded hole or insert matches the 10-32 thread specification before installation. De-energize or lock out any equipment before replacing or adjusting clamping handles on active machinery. Do not exceed the rated clamping load for the handle size and thread specification.
