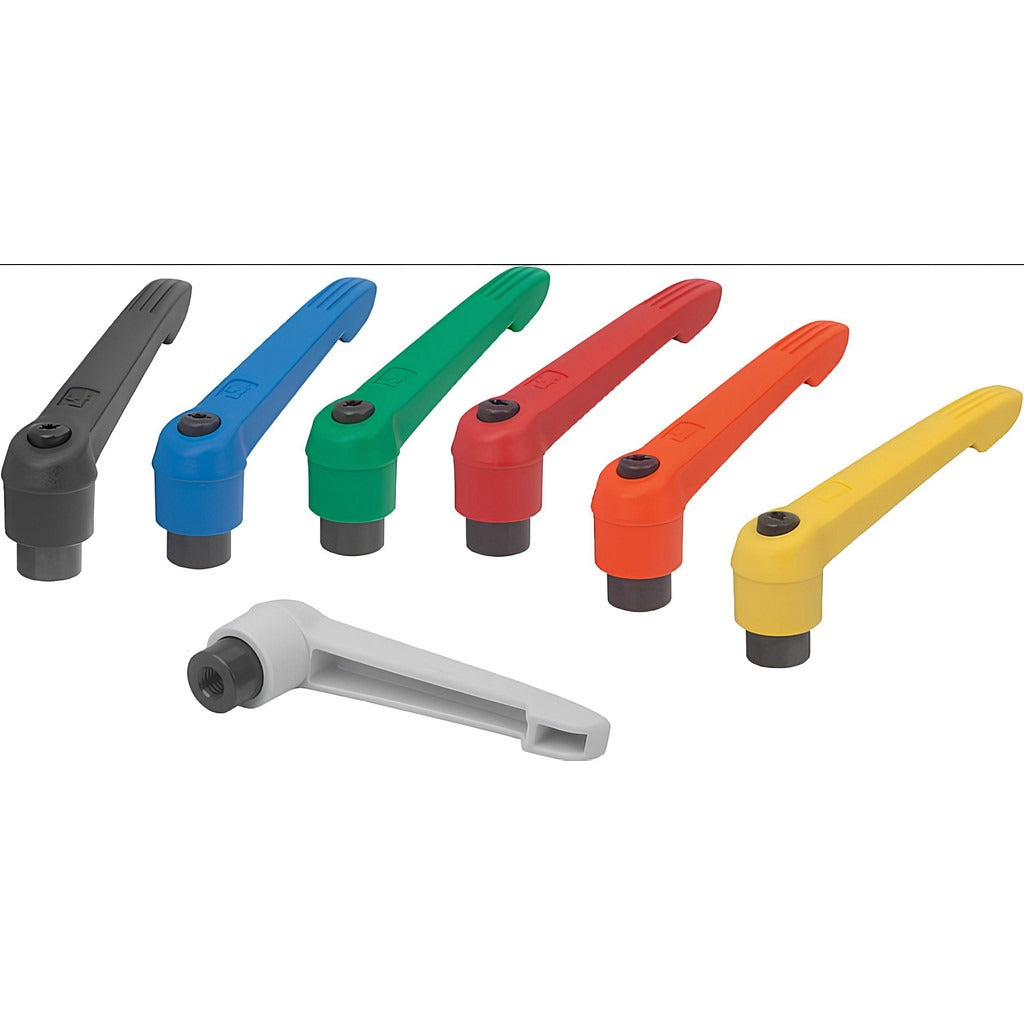

Kipp K0269.1041 Adjustable Clamping Handle M4x0.7

Product Description

The KIPP K0269.1041 is an adjustable tension lever clamping handle designed for precise, repeatable clamping in industrial and mechanical assembly applications. It features an M4x0.7 threaded hole connection with a 13 mm hub diameter and a 40 mm handle radius length. The handle body is molded from fiberglass-reinforced plastic in black, offering a durable, corrosion-resistant grip. The steel hardware components carry a black oxide finish and meet Grade 5.8 material specification. The handle arm is set at a 20-degree angle for ergonomic positioning. This part is typically installed by machinists, mechanical technicians, and assembly professionals working with jigs, fixtures, and clamping systems.

The K0269.1041 suits applications where a compact, lightweight clamping handle is needed on threaded M4 fastening points. The 40 mm handle length and modern arm style make it appropriate for tight-clearance fixture assemblies, tooling plates, and machine guarding panels. Its small footprint, with a 13 mm body diameter and 9 mm body height, suits installations where space is constrained. The part is REACH and RoHS compliant, making it suitable for regulated manufacturing environments in electronics and industrial production.

Key Features

• Fiberglass-reinforced plastic handle body for lightweight, corrosion-resistant performance
• M4x0.7 threaded hole connection for direct engagement with standard M4 fasteners
• 20-degree handle arm angle for ergonomic, low-profile clamping access
• Steel components with black oxide finish rated to Grade 5.8 material specification
• REACH and RoHS compliant for use in regulated manufacturing environments
• Compact body diameter of 13 mm and body height of 9 mm for tight-clearance installations

Compatibility

Designed as an OEM-style adjustable clamping handle for use with M4x0.7 threaded fastening points in jig, fixture, and machine assembly applications.

Installation Notes

Installation is performed by hand or with standard hand tools on M4 threaded studs or bolts. Verify thread engagement depth against the 9 mm threaded length and 13 mm hole depth before applying clamping load. Do not exceed the rated Grade 5.8 torque limits of the steel insert components. Confirm the clamping arm angle and clearance before final assembly positioning.
